Door Handle Bezel Replacement
Door Handle Bezel Replacement
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|

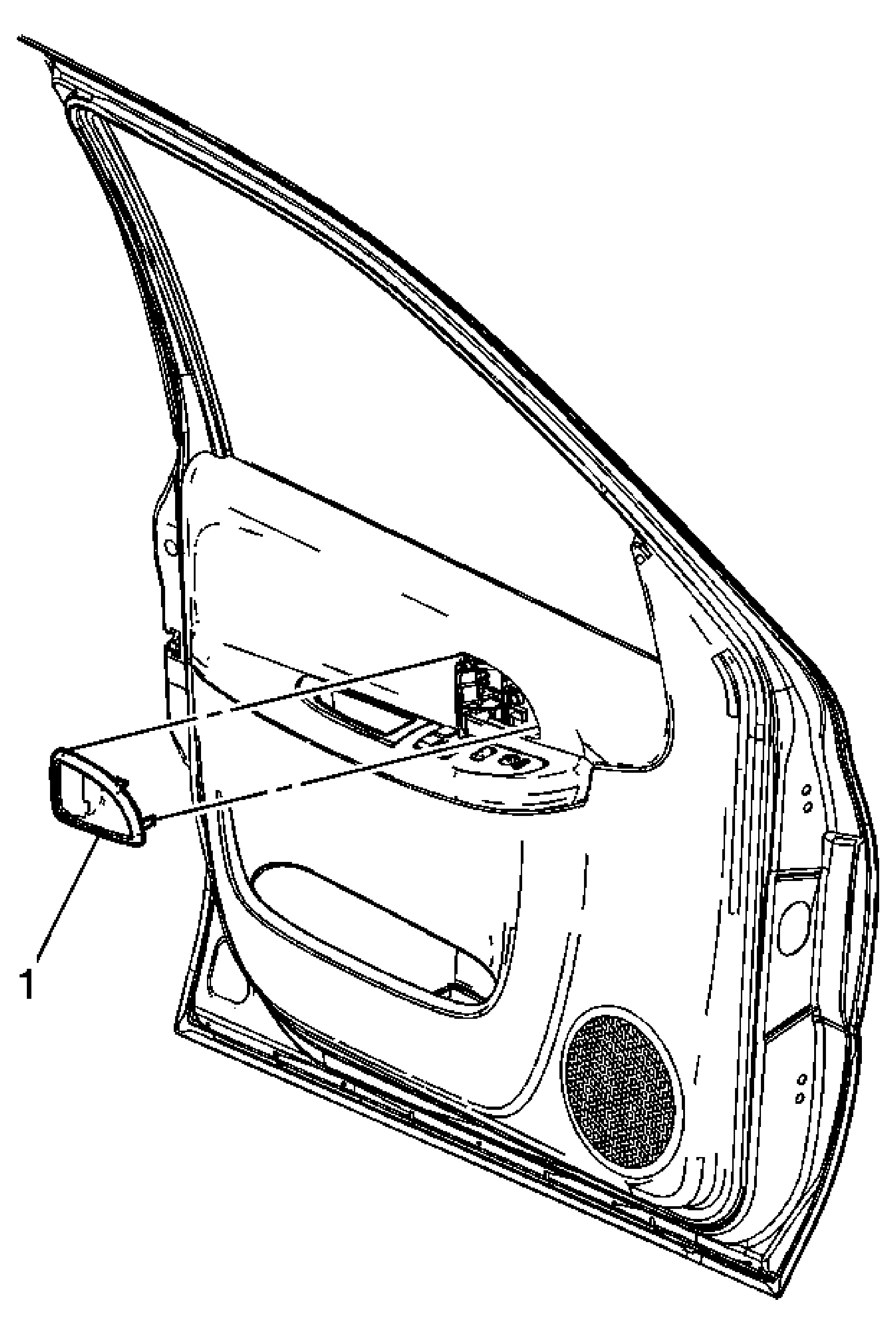

| 1 | Bezel, Door Handle Tip: While pulling out on the top edge of the bezel, use a flat bladed tool to depress the top tab downward to release. |
