Seat Back Panel Replacement - Front
Seat Back Panel Replacement - Front

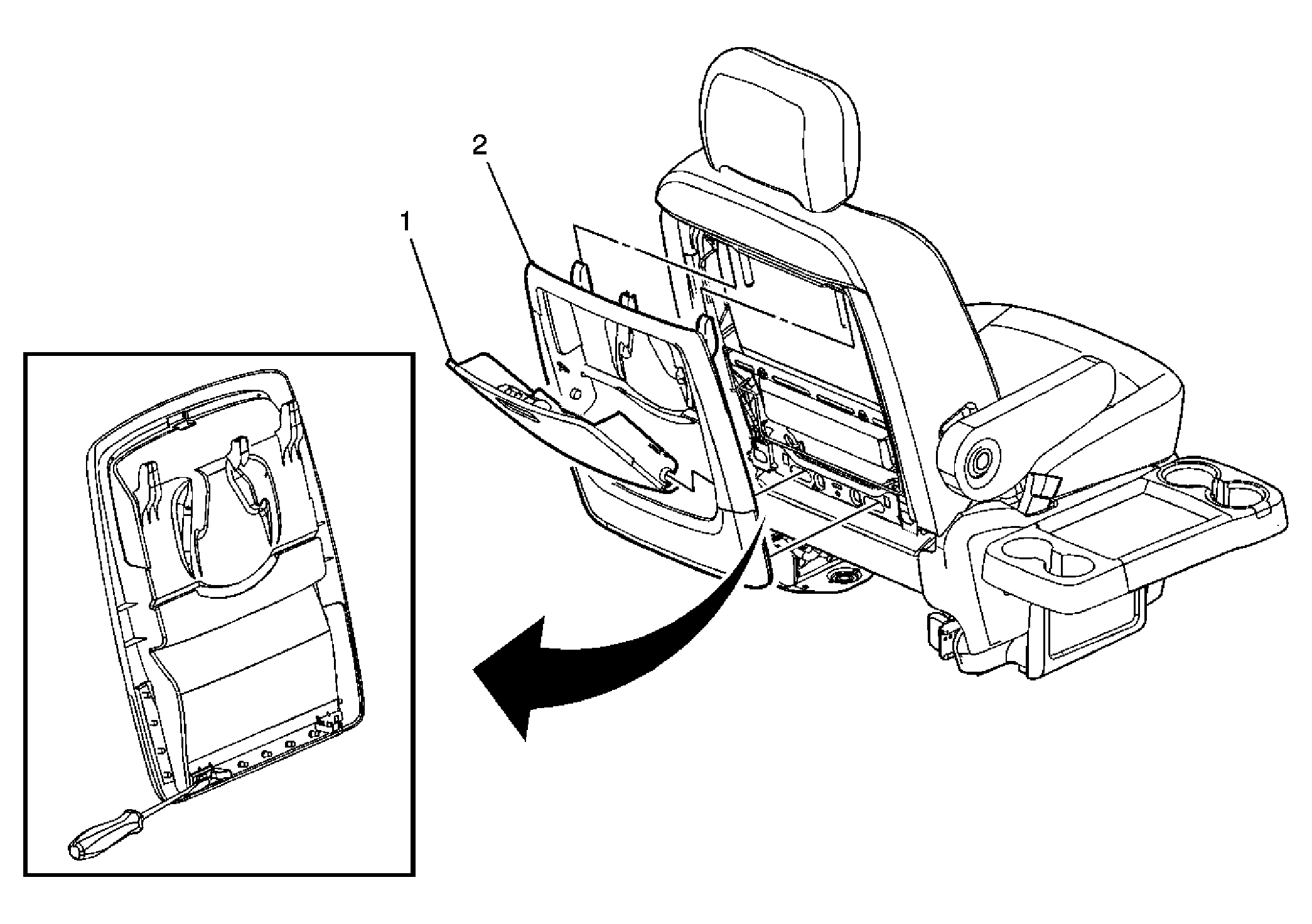

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Pocket Assembly, Seat Back Cushion Panel Tip: Pull down to open the pocket assembly and squeeze together while pulling rearward to disengage from seat back panel. |
| 2 | Panel Assembly, Seat Back Cushion Tip: Using a flat bladed tool to help release the clips at the bottom edge of the seat back panel, pull the seat back panel rearward and down to remove. |
