Inflatable Restraint I/P Module Connector End View C1

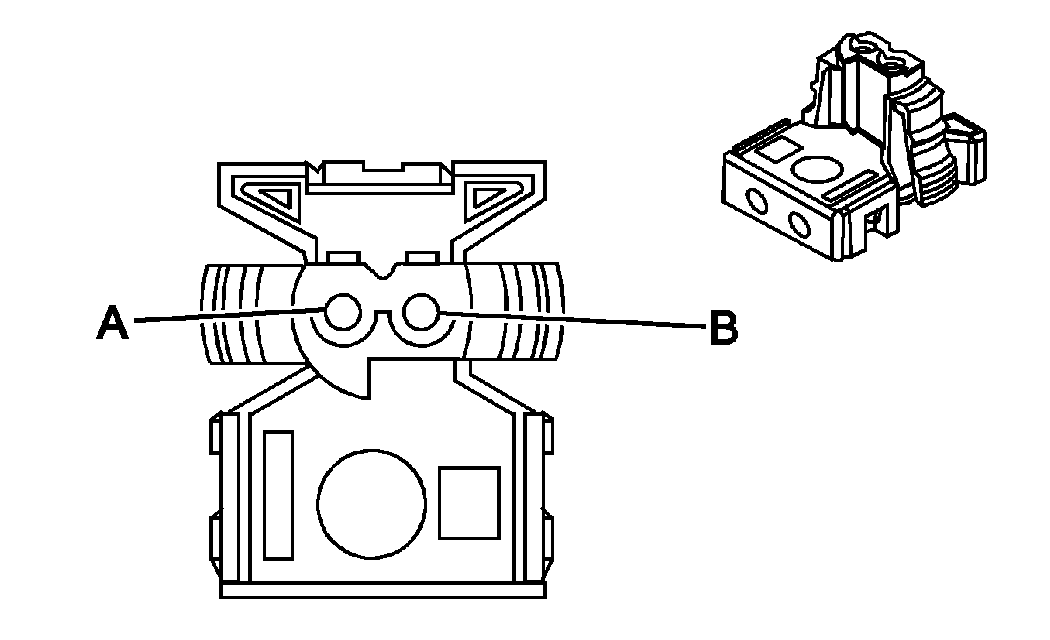

Fig 1: Inflatable Restraint I/P Module C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

SIR Connector End Views

Connector Part Information  OEM: 54550267 Service: See Catalog Description: 2-Way F ABX-3 Code B (WH)

Terminal Part Information  Terminal: Not Serviced in Kit Core/Insulation Crimp: N/A Release Tool/Test Probe: N/A

Inflatable Restraint I/P Module C1

Pin	Wire Color	Circuit No.	Function
A	YE	3025	I/P Module Stage 1 - High Control
B	OG	3024	I/P Module Stage 1 - Low Control
