Turn Signal/Multifunction Switch Connector End View C4 (C25)

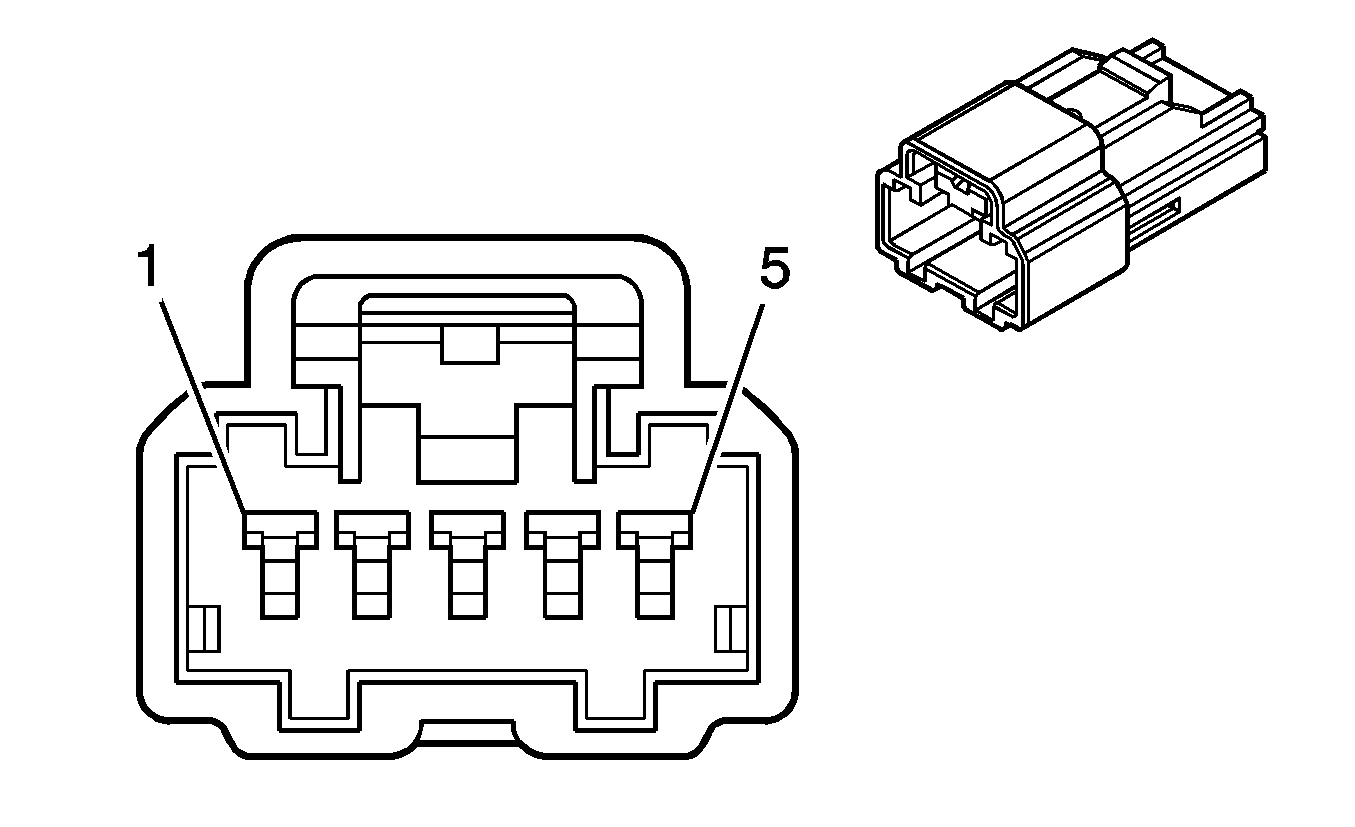

Fig 1: Turn Signal/Multifunction Switch C4 (C25) Connector End View

Courtesy of GENERAL MOTORS CORP.

Lighting Systems Connector End Views

Connector Part Information  OEM: 15418023 Service: See Catalog Description: 5-Way M Unsealed (BK)

Terminal Part Information  Terminal: SHCMW-A03T-040/Tray 20 Core/Insulation Crimp: J/J Release Tool/Test Probe: 12094429/J-35616-13

Turn Signal/Multifunction Switch C4 (C25)

Pin	Wire Color	Circuit No.	Function
1	BK/WH	1551	Ground
2	GY	391	Rear Window Wiper Switch Signal
3	L-GN	2270	Rear Window Washer Relay Control
4-5	-	-	Not Used
