Multifunction Switch Connector End View - I/P

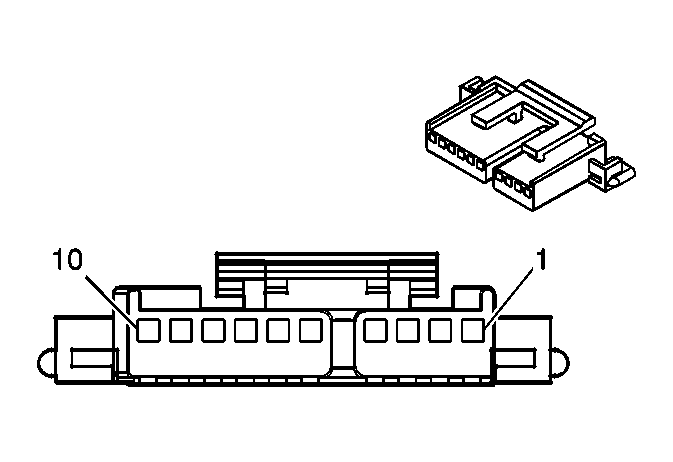

Fig 1: Multifunction Switch Connector End View - I/P

Courtesy of GENERAL MOTORS CORP.

Lighting Systems Connector End Views

Connector Part Information  OEM: 12047531 Service: 12085486 Description: 10-Way F Micro-Pack 100 Series (BK)

Terminal Part Information  Terminal: 12146447/Tray 3 Core/Insulation Crimp: E/C Release Tool/Test Probe: 12031876-1/J-35616-6

Multifunction Switch - I/P

Pin	Wire Color	Circuit No.	Function
1	BK/WH	1551	Ground
2	OG	1816	DIC Set/Reset Switch Signal
3	GY	8	Instrument Panel Lamp Supply Voltage
4	BN/WH	1571	Traction Control Switch Signal (NW9)
5	OG	1328	DIC Menu Signal
6	PK	893	DIC Info Down Signal
7	YE	1327	DIC Info Up Signal
8	TN	2144	Hazard Switch Signal
9-10	-	-	Not Used
