Power Door Systems Component Views

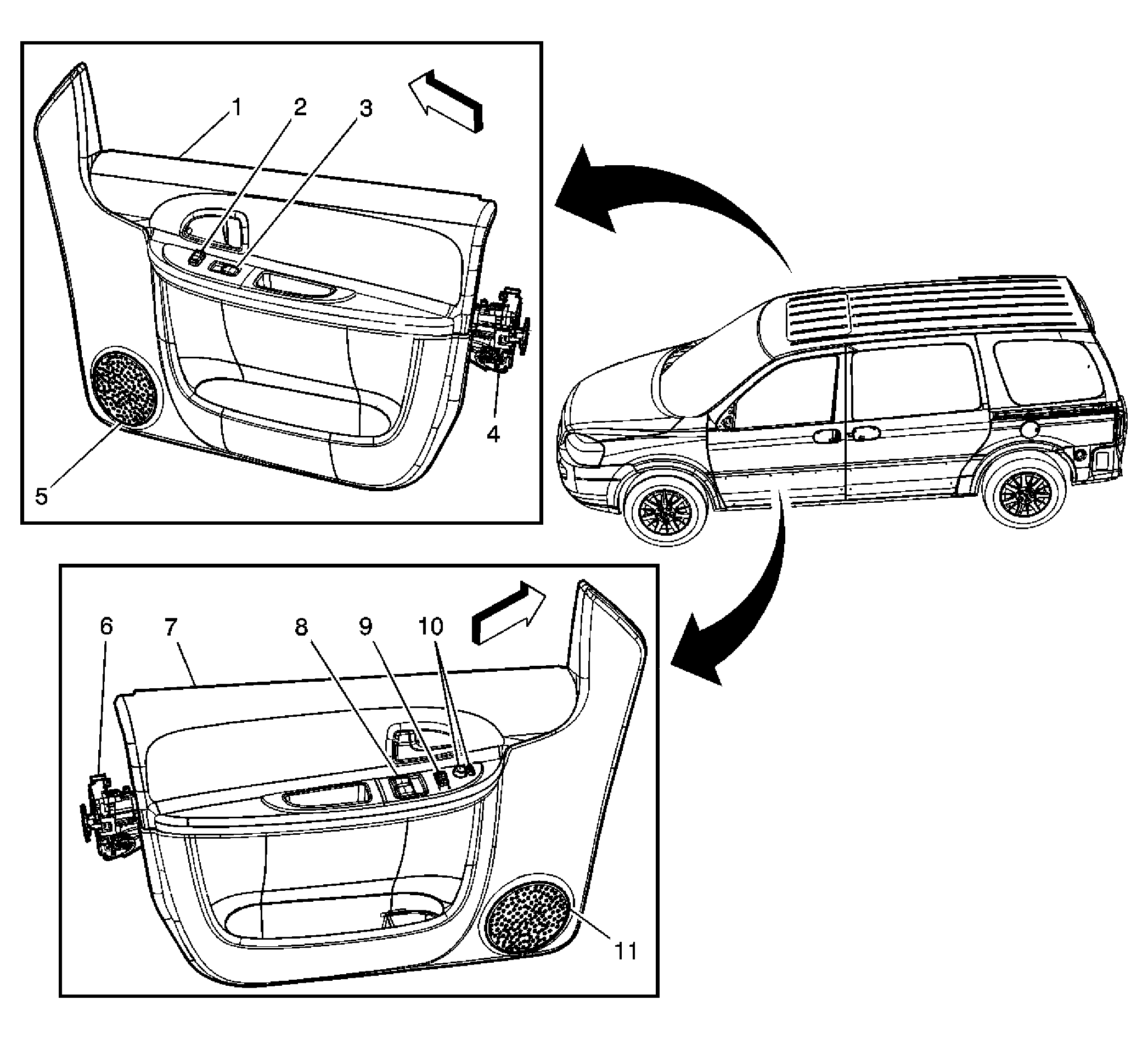

Fig 1: Identifying Passenger & Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door Trim Panel
2	Door Lock Switch-Passenger
3	Window Switch-Passenger
4	Door Latch Assembly-Passenger
5	Speaker-RF
6	Door Latch Assembly-Driver
7	Driver Door Trim Panel
8	Window Switch-Driver
9	Door Lock Switch-Driver
10	Outside Rearview Mirror Switch
11	Speaker-LF

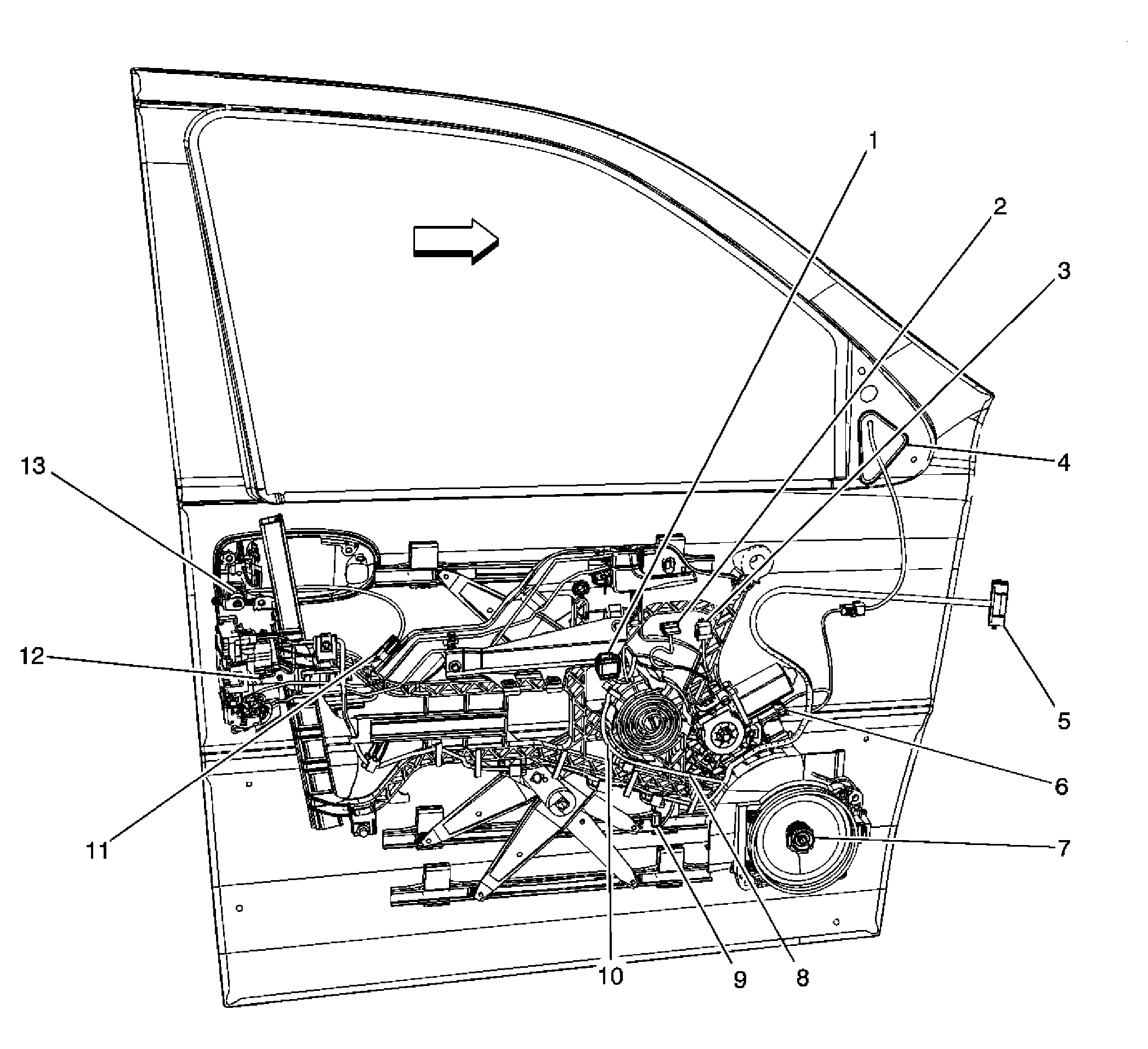

Fig 2: Identifying Driver Door Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch - Left Connector
2	Window Switch - Driver Connector
3	Door Lock Switch - Driver Connector
4	Outside Rearview Mirror - Driver
5	C301 Driver Door Harness to Body Harness
6	Window Motor - Driver
7	Speaker - LF
8	S555
9	Memory Seat Switch - Driver (AG0) Connector
10	S551
11	Driver Door Key Switch Connector
12	Door Latch Assembly - Driver
13	Driver Door Key Switch (AU6)

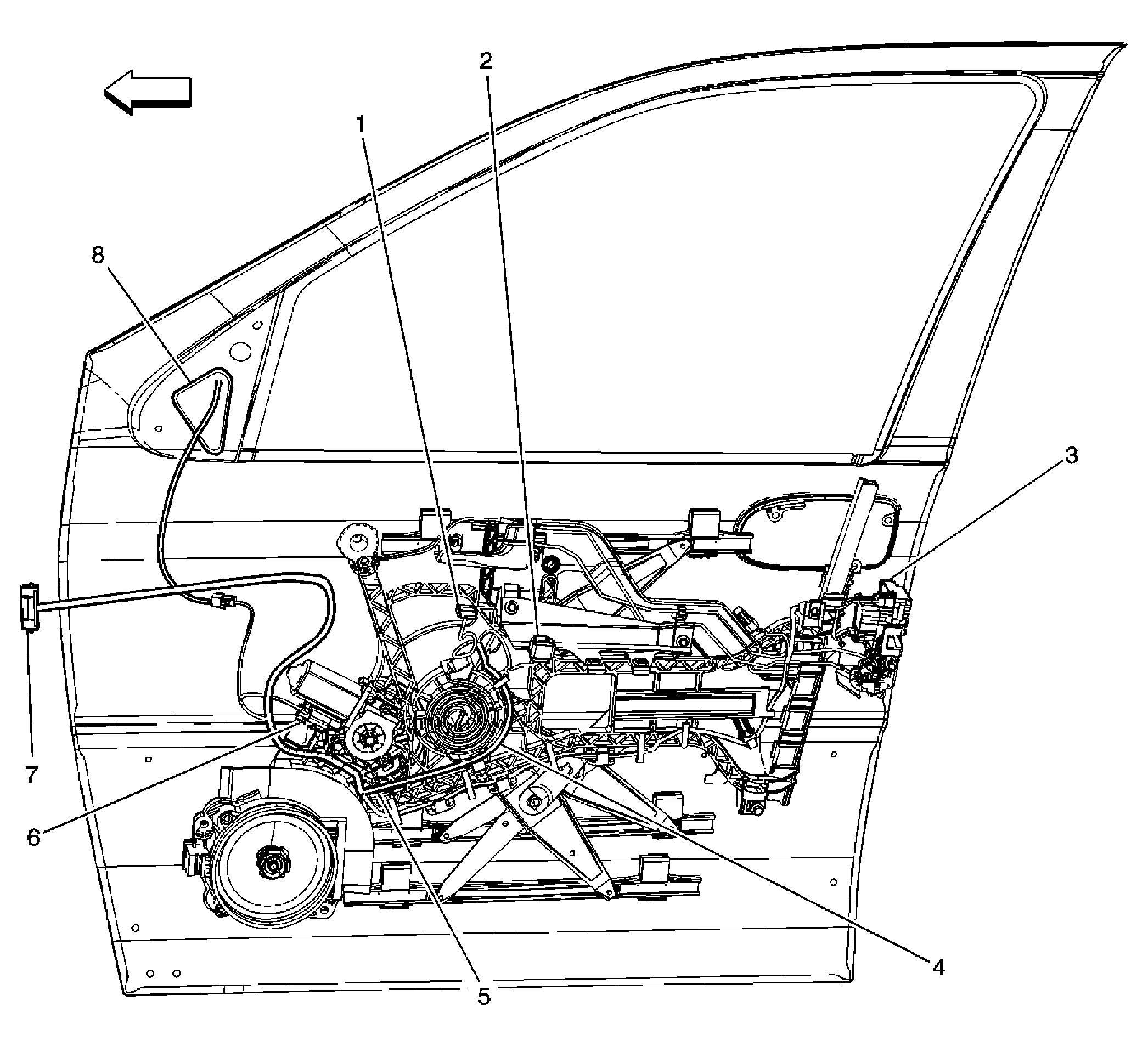

Fig 3: Identifying Passenger Door Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger Connector
2	Window Switch - Passenger Connector
3	Door Latch Assembly - Passenger
4	S660
5	S666
6	Window Motor - Passenger
7	C302 Passenger Door Harness to Body Harness
8	Outside Rearview Mirror - Passenger

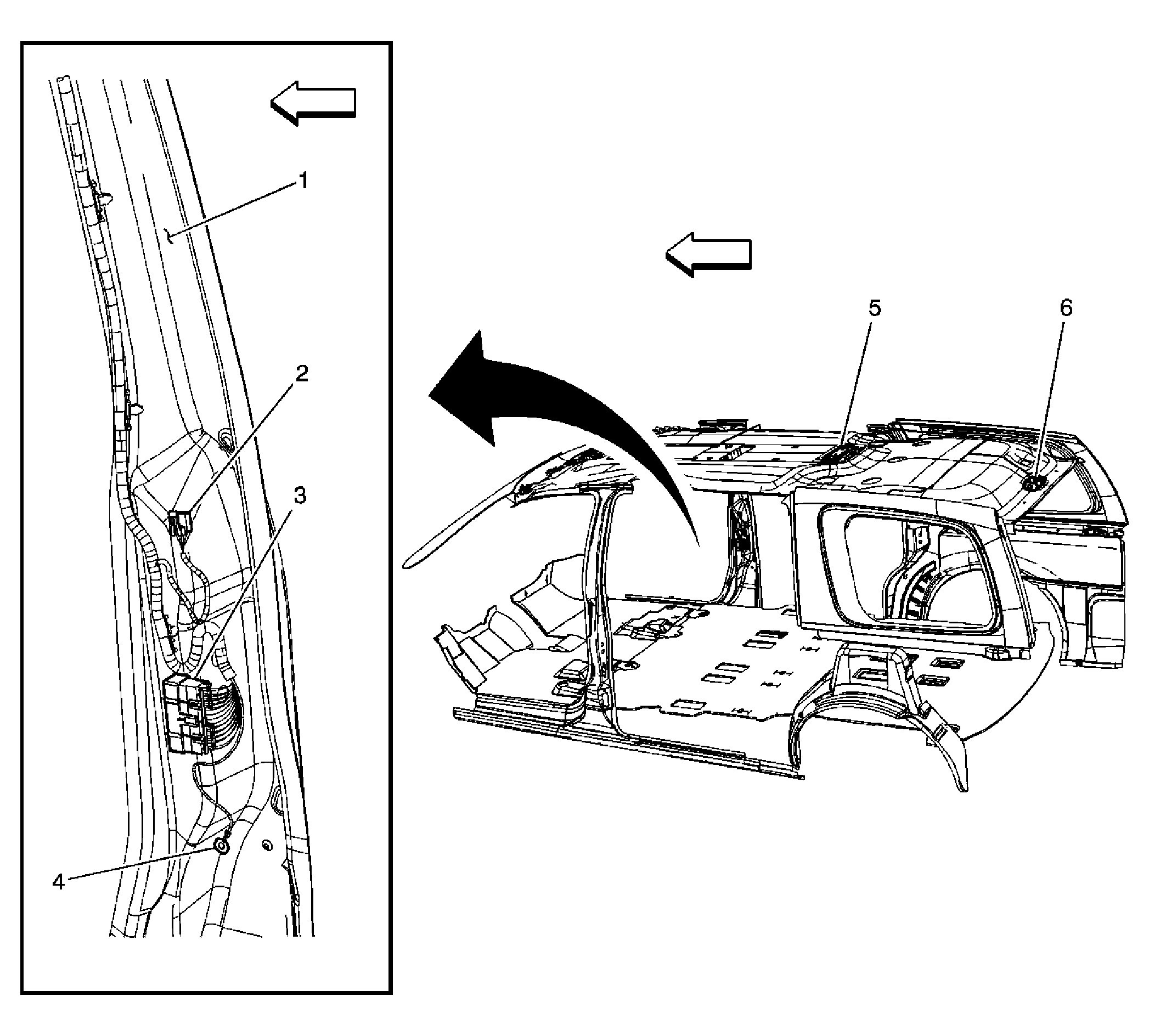

Fig 4: Identifying Headliner Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right B-Pillar
2	Sliding Door Open/Close Switch-Right (E58) Connector
3	C308 Body Harness to Headliner Harness
4	G302
5	Courtesy/Reading Lamp-Center
6	Cargo Lamp

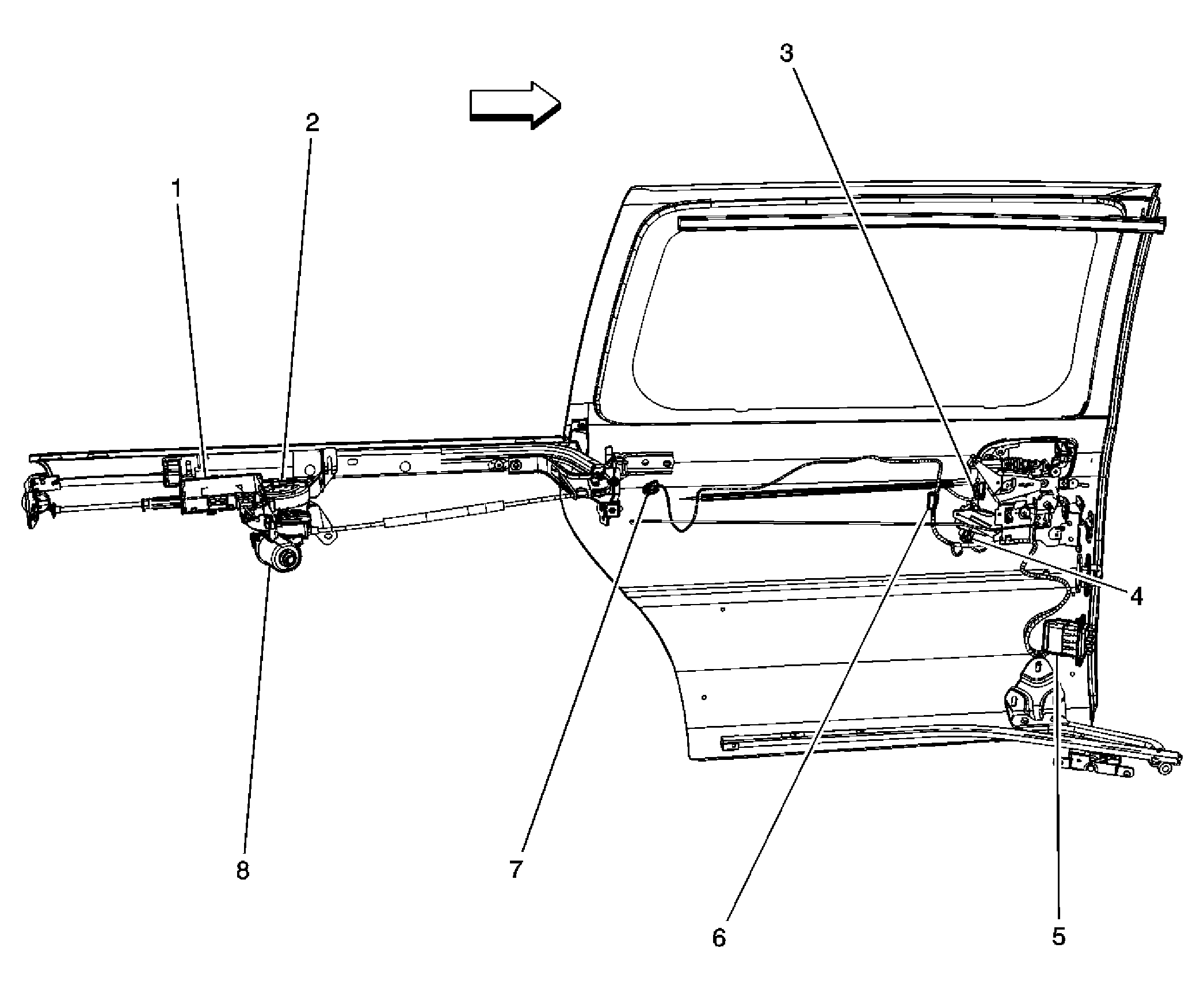

Fig 5: Identifying LH Sliding Door Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Sliding Door Module (LSDM) (E59)
2	Sliding Door Motor Assembly-Left (E59)
3	Sliding Door Unlatch Actuator - Left (E59)
4	Door Lock Actuator - Left Middle
5	Door Contact Plate - Left C2
6	S751 (E59)
7	Sliding Door Detent Switch - Left (E59) Connector
8	Sliding Door Cable Motor - Left (E59)

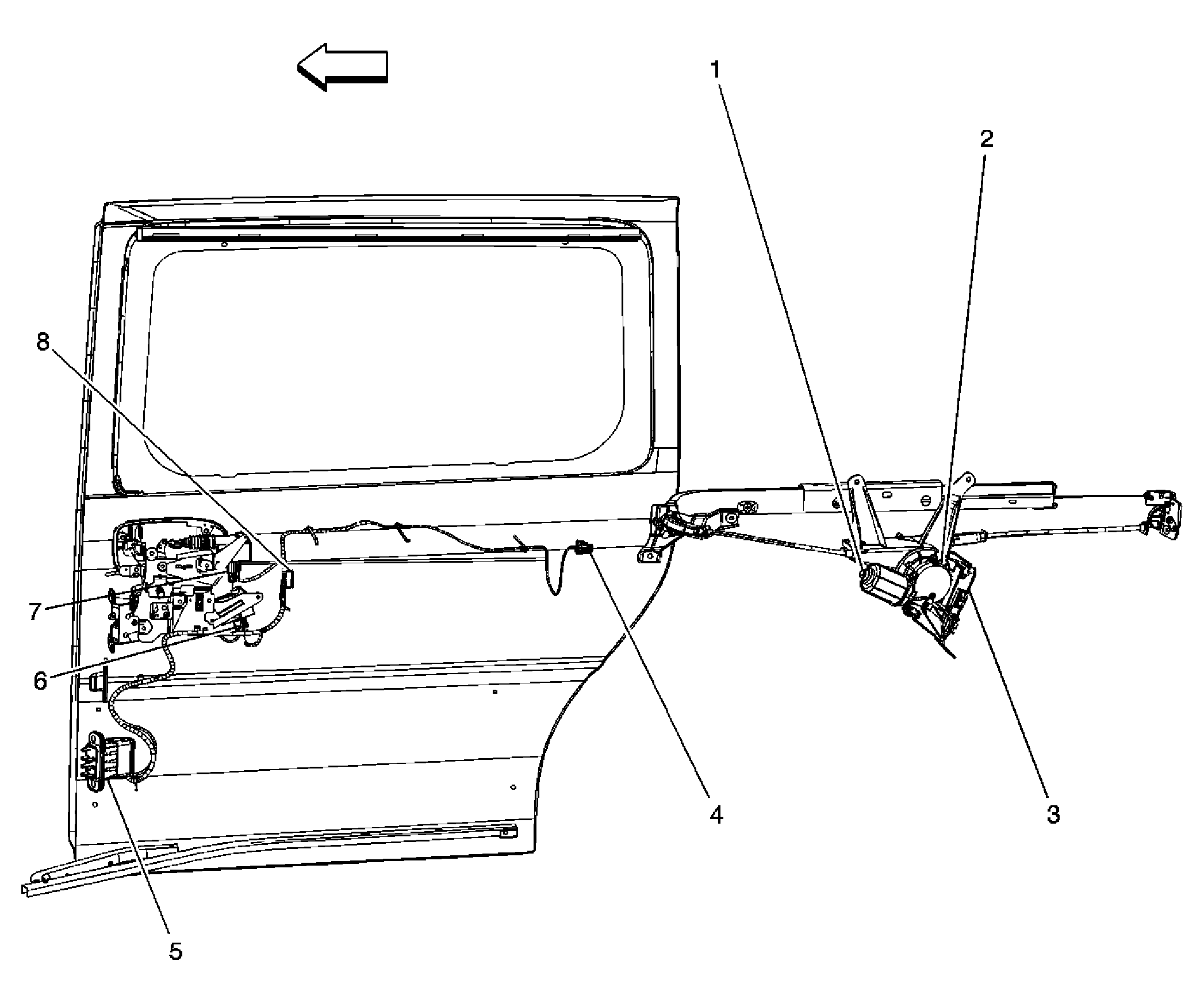

Fig 6: Identifying RH Sliding Door Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sliding Door Cable Motor - Right (E58)
2	Sliding Door Motor Assembly - Right (E58)
3	Right Sliding Door Module (RSDM) (E58)
4	Sliding Door Detent Switch - Right (E58) Connector
5	Door Contact Plate - Right C2
6	Door Lock Actuator - Right Middle
7	Sliding Door Unlatch Actuator - Right (E58)
8	S848 (E58)

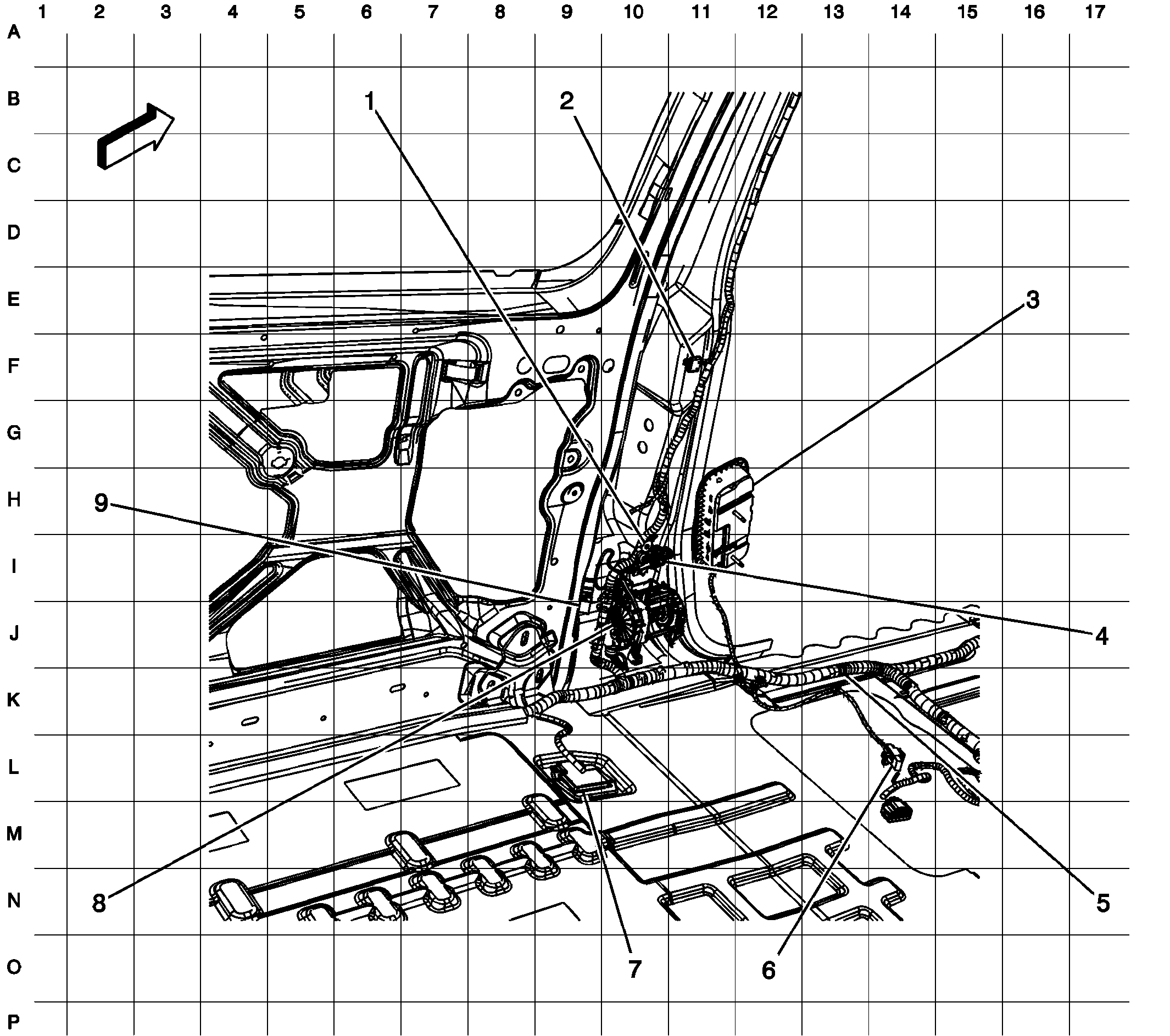

Fig 7: Identifying Left B Pillar Area Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Sliding Door Open/Close Switch - Left (E59) Connector
3	Inflatable Restraint Side Impact Module - Left (AJ7)
4	Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AJ7)
5	Body Harness
6	C315 Left Side Impact Module Jumper Harness (AJ7) to Body Harness (AJ7)
7	C305 Fuel Tank Harness and Rear Cross-Car Jumper Harness to Body Harness
8	Seatbelt Pretensioner - LF
9	Door Contact Plate - Left C1

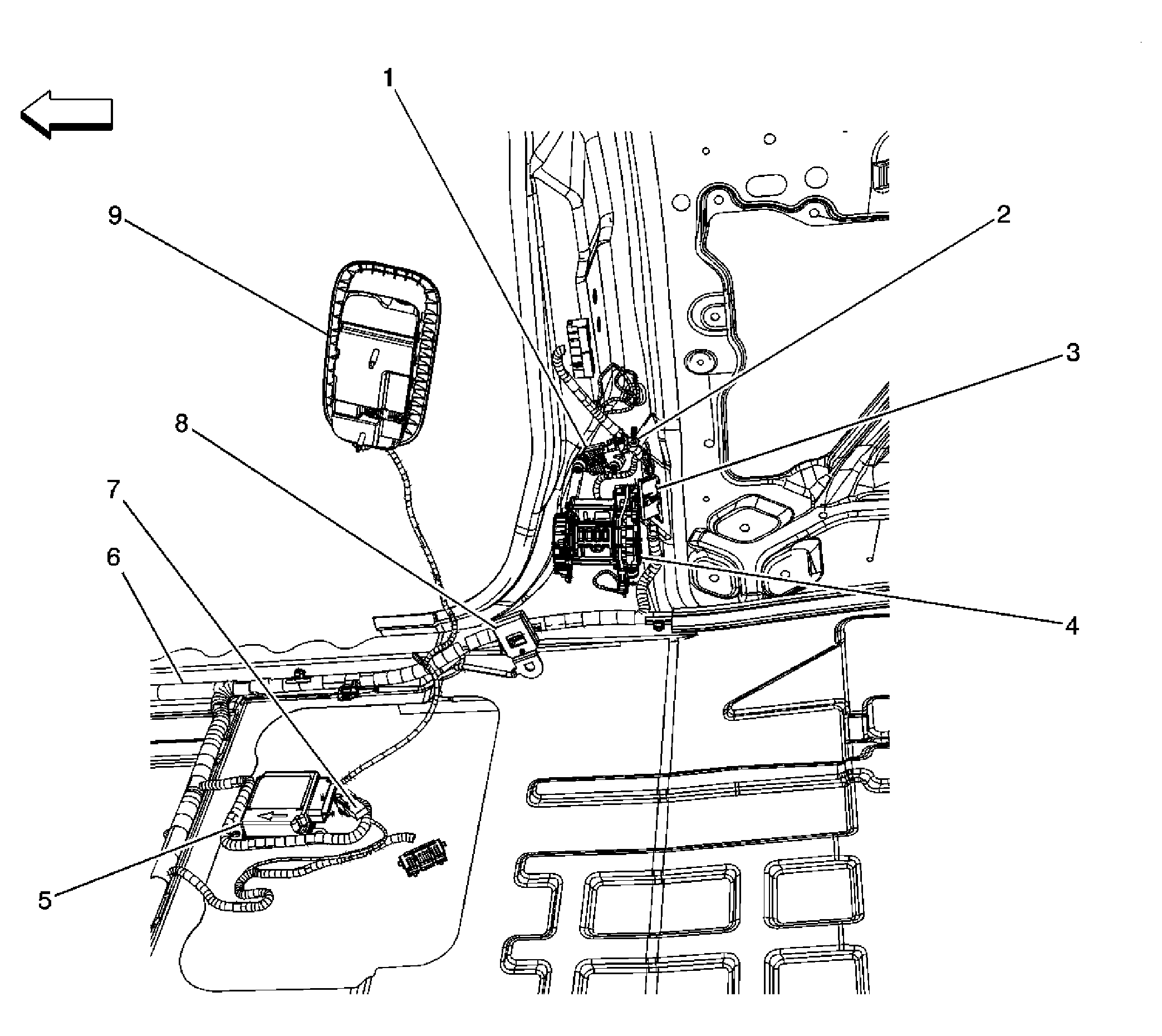

Fig 8: Identifying Right B Pillar Area Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AJ7)
2	G302
3	Door Contact Plate - Right C1
4	Seatbelt Pretensioner - RF
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Body Harness
7	C316 Inflatable Restraint Side Impact Module - Right Jumper Harness (AJ7) to the Body Harness (AJ7)
8	Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor
9	Inflatable Restraint Side Impact Module - Right (AJ7)

Fig 9: Identifying Liftgate Components

Courtesy of GENERAL MOTORS CORP.
