Wiper/Washer System Component Views

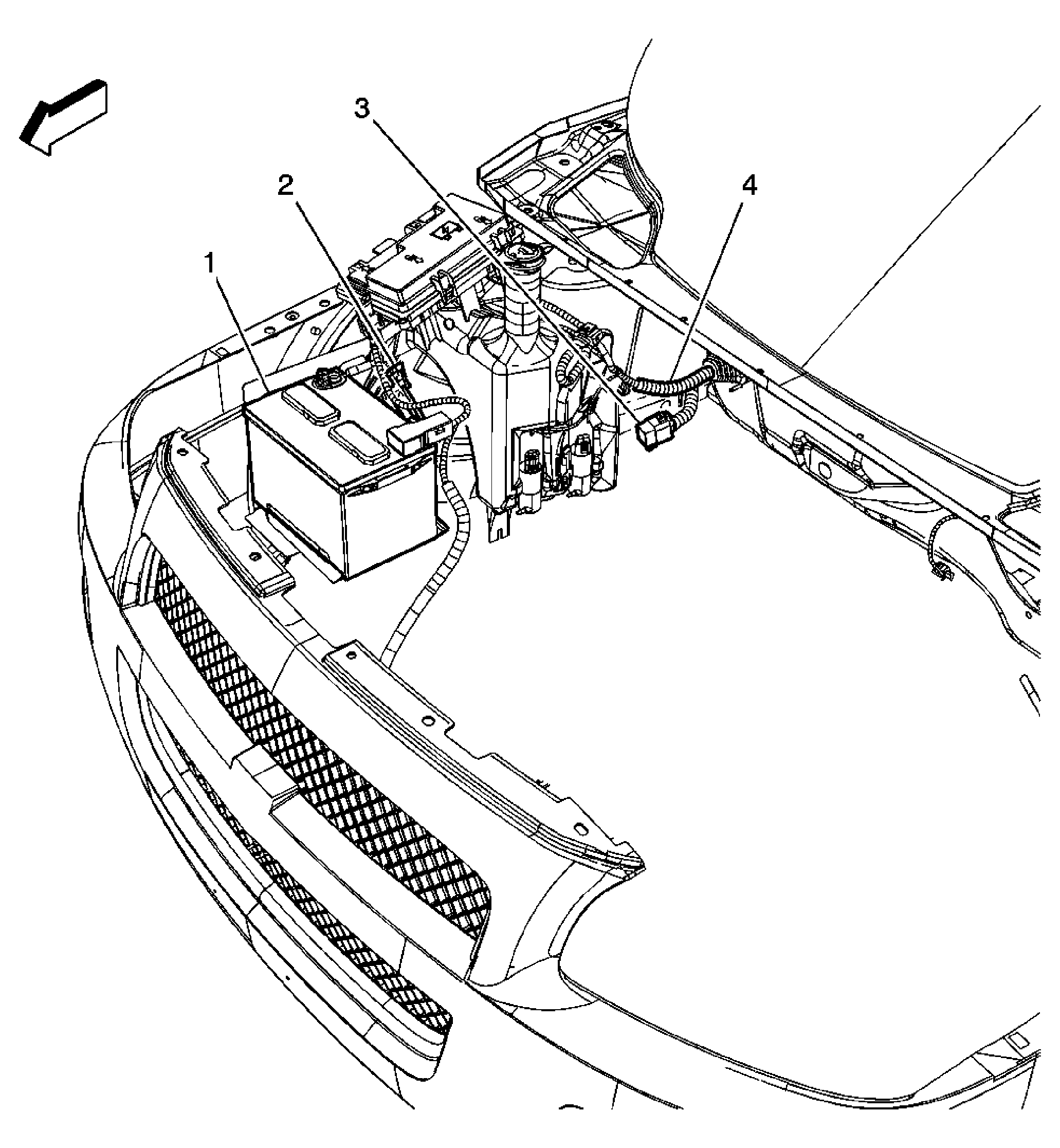

Fig 1: View Of Right Side of Engine Compartment
GM1546083Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 C108 I/P Harness to Battery Cable Harness
3 Rear Window Washer Fluid Pump Relay
4 I/P Harness

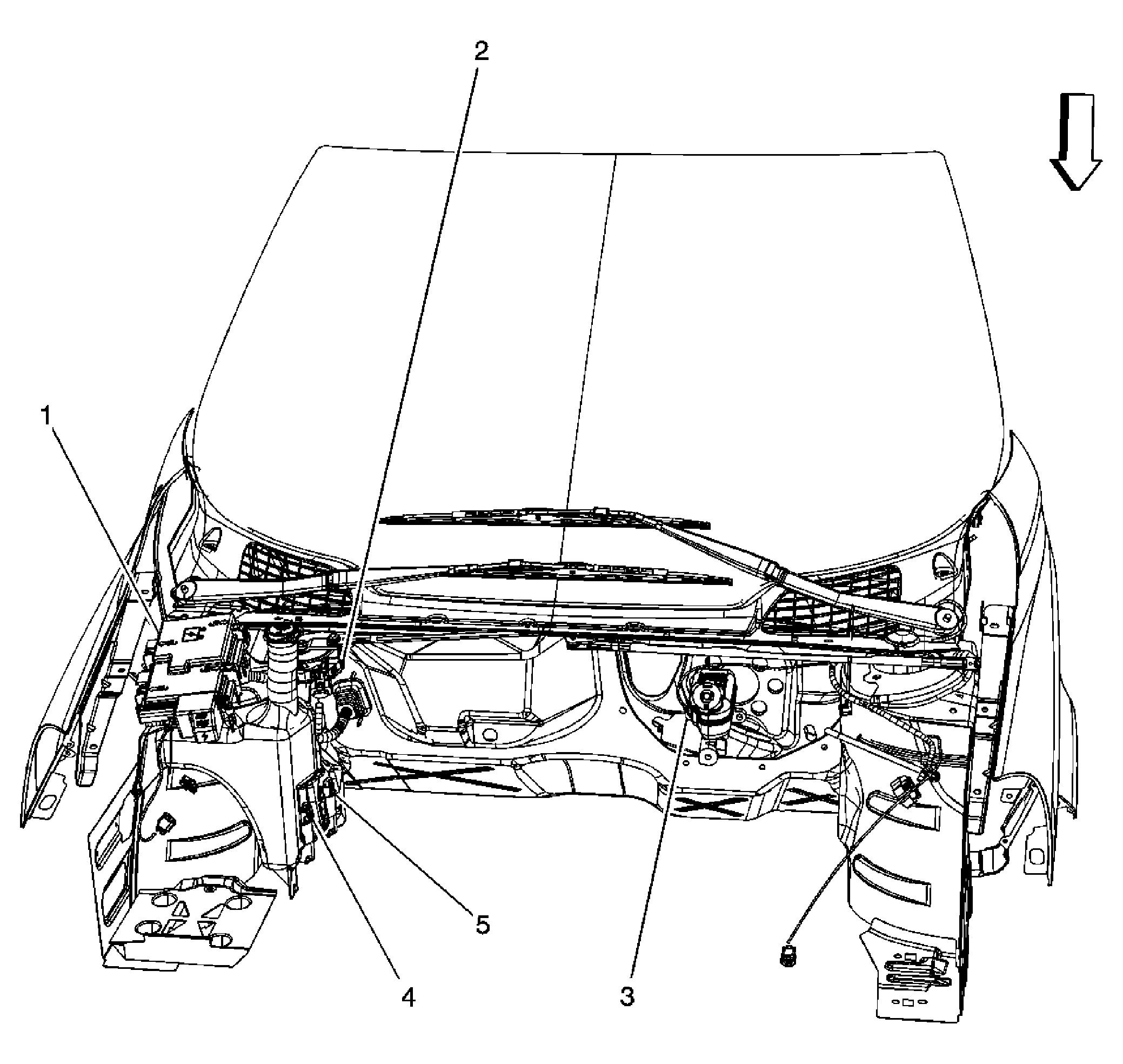

Fig 2: View Of Engine Compartment Components - I/P Harness
GM1536065Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Windshield Wiper Motor
3 Brake Fluid Level Switch
4 Windshield Washer Fluid Pump
5 Rear Window Washer Fluid Pump

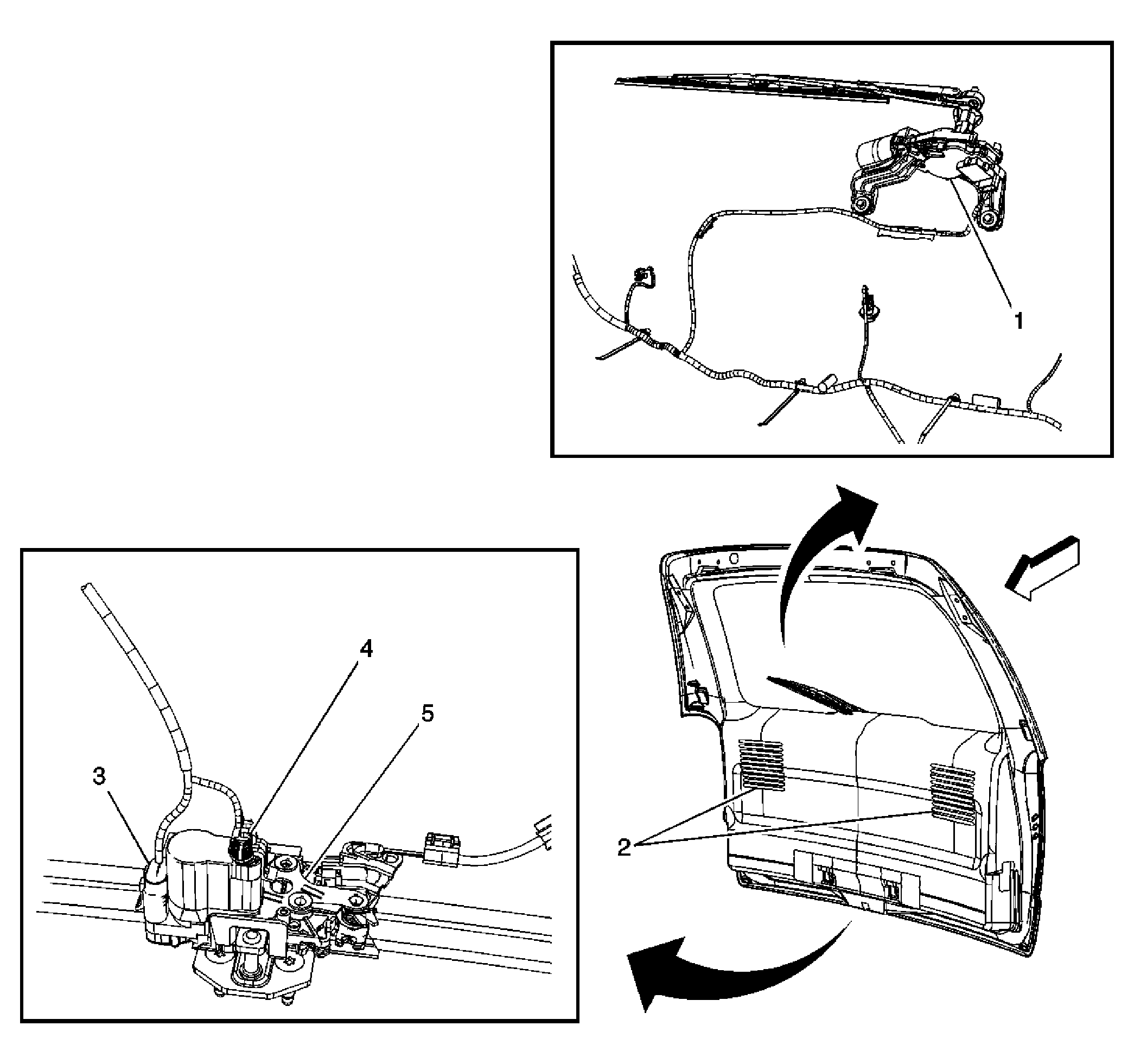

Fig 3: Identifying Liftgate Components
GM1536127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Wiper Motor
2 Speakers - LR/RR
3 Door Jamb Switch - Liftgate
4 Door Lock Actuator - Liftgate
5 Liftgate Latch Assembly
