Cellular Communication Component Views

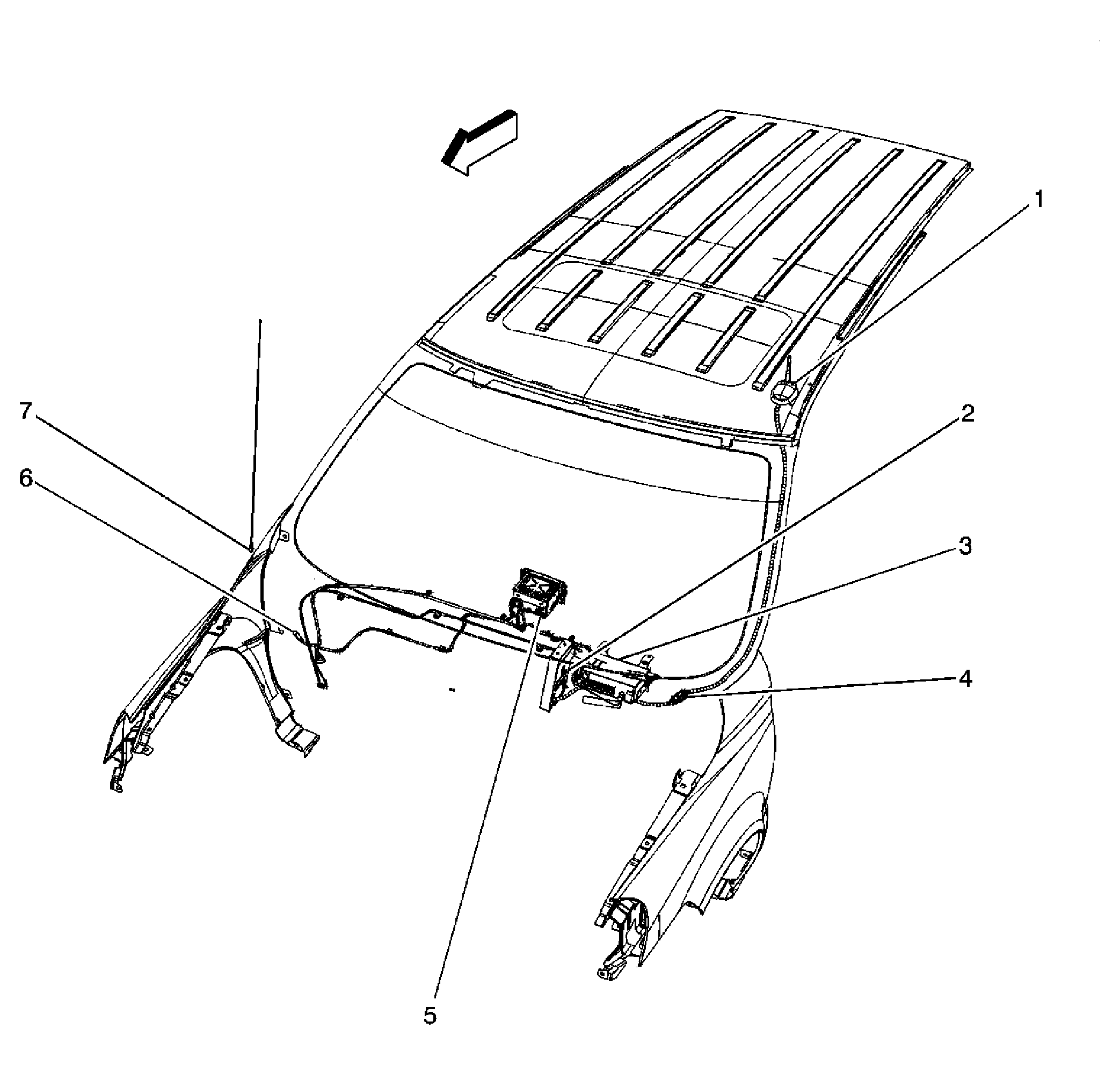

Fig 1: Identifying Antenna Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)
2	Cellular and Navigational Antenna (UE1)
3	Digital Radio Receiver (U2K)
4	Vehicle Communication Unit (VCU) (UE1)
5	Radio
6	C300 Digital Radio Antenna Coax Connector (U2K)
7	C304 Cellular and Navigation Antenna Coax Connector (UE1)
8	C298 Radio Antenna Coax Connector
9	Radio Antenna

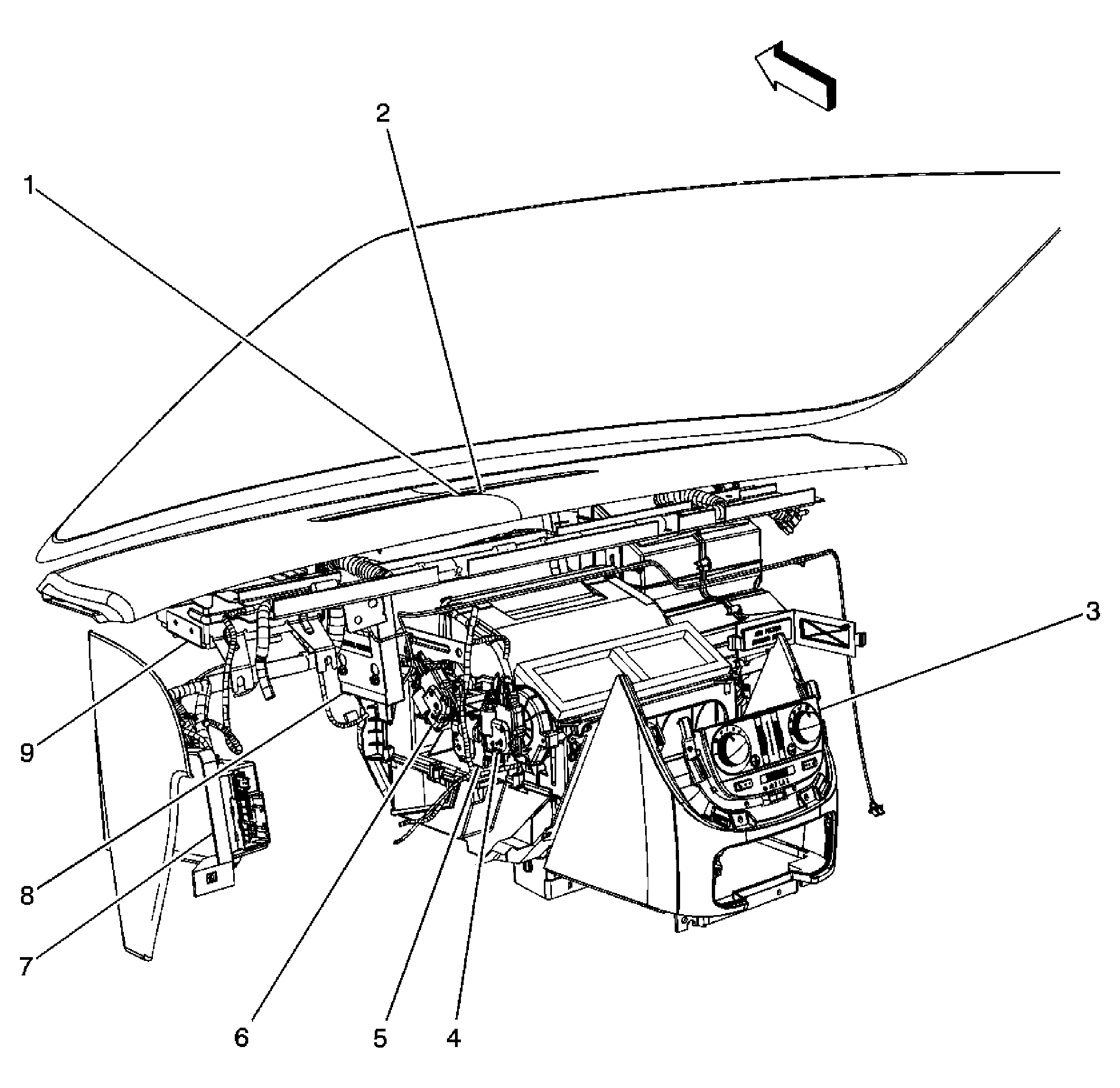

Fig 2: Identifying Middle Left Side Of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Light Emitted Diode (LED) (UA6)
2	Ambient Light Sensor
3	HVAC Control Module
4	Vent and Floor Actuator
5	Air Temperature Actuator (C60) or Air Temperature Actuator - Left (CJ3)
6	Defrost Actuator
7	Body Control Module (BCM)
8	Digital Radio Receiver (U2K)
9	Vehicle Communication Unit (VCU) (UE1)

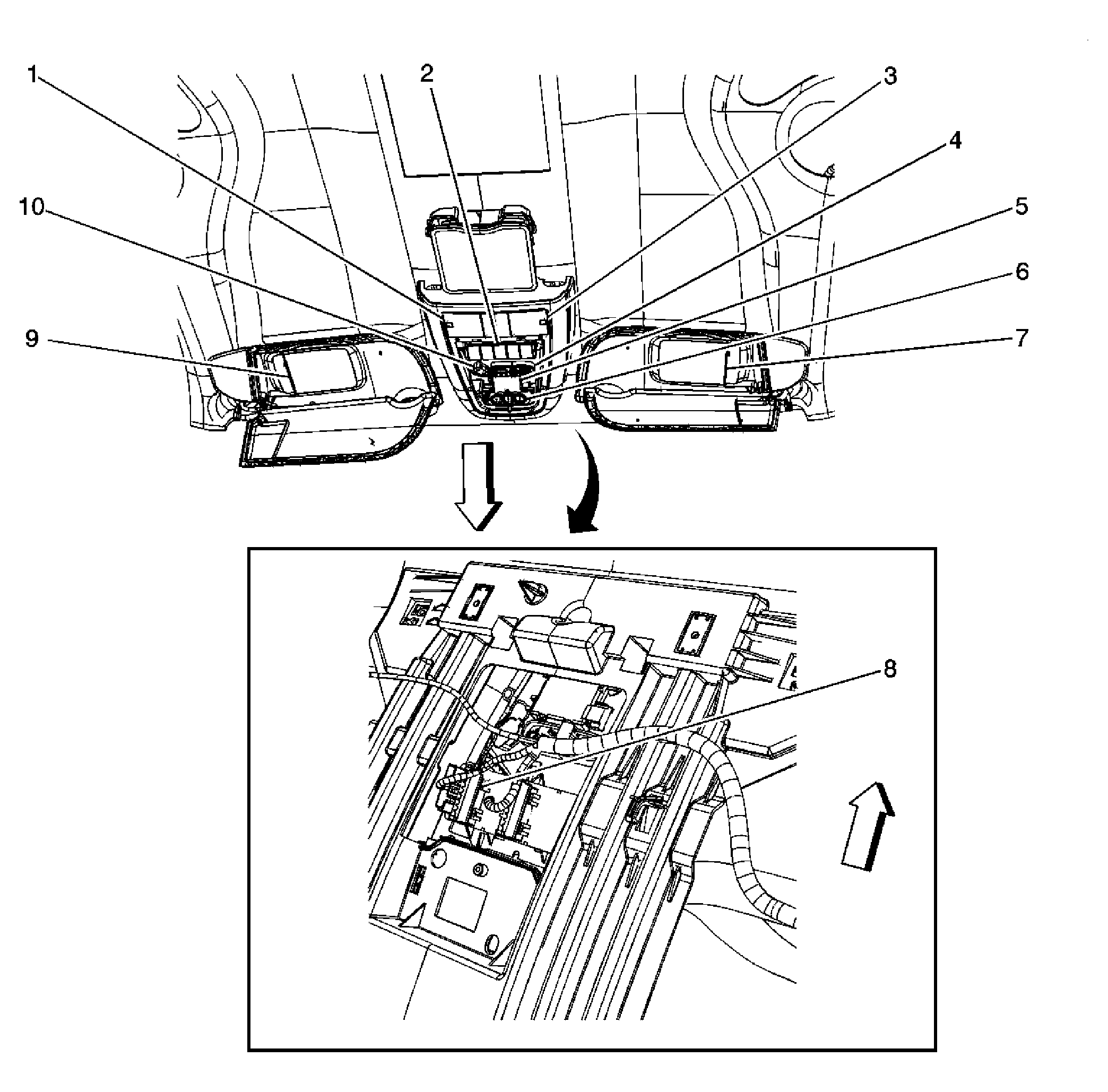

Fig 3: Identifying Front Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Front
2	Multifunction Switch - Overhead Console
3	Courtesy/Reading Lamp - Front
4	OnStar Button Assembly (UE1)
5	Garage Door Opener (UG1)
6	Garage Door Opener Buttons (UG1)
7	Vanity Mirror Lamp - Right (DH6)
8	Multifunction Switch Overhead Console
9	Vanity Mirror Lamp - Left (DH6)
10	Cellular Microphone (UE1)
