Installation Procedure

  1. When replacing a VCIM, record the 11-digit electronic serial number (ESN) and the 10-digit station identification (STID) number from the label on the new VCIM.

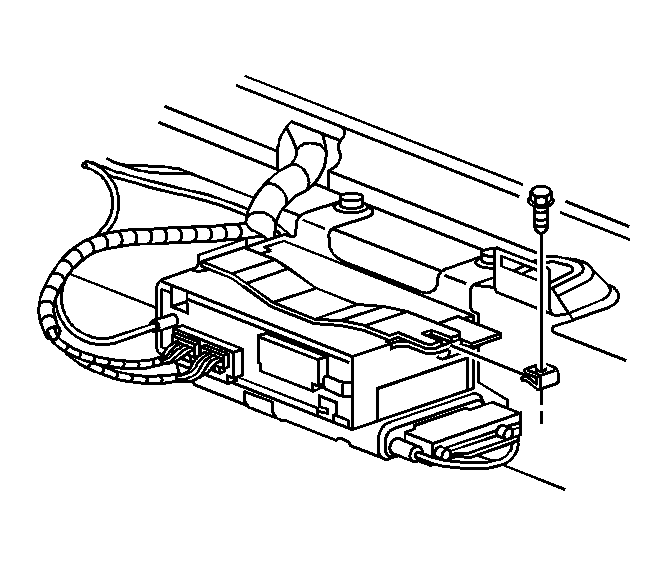

    2. Fig 1: View Of Vehicle Communication Interface Module
    GM802311Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the VCM to the bracket using the clip strap and tighten the bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the electrical connectors.
  4. Connect the cell antenna coaxial cable to the VCIM.
  5. Install the upper trim pad. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  6. Install the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
    7. IMPORTANT: After replacing the vehicle communication interface module, you must configure the OnStar® system. Failure to configure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set.
  7. Reconfigure the OnStar® system. Refer to Control Module References in Computer/Integrating Systems.
