Wiring Harness Assembly Connect

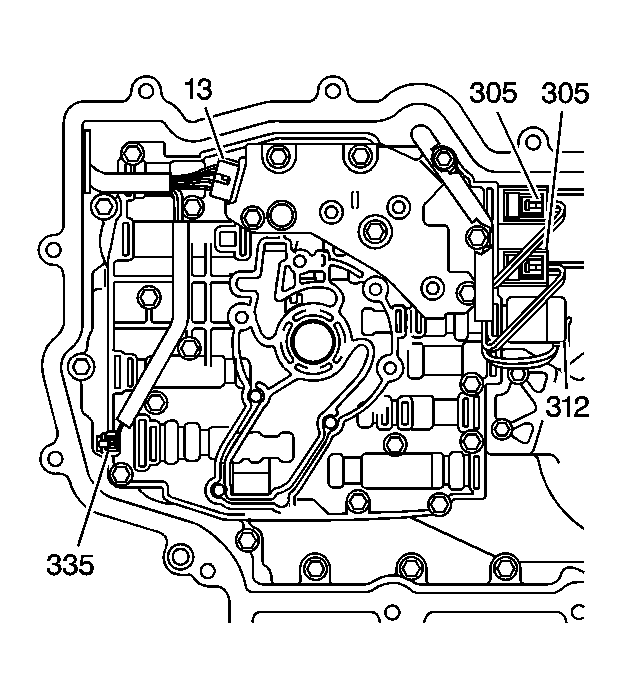

Fig 1: Identifying Wiring Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the wiring harness assembly to the following components:

• The TFP switch assembly (13)
• The pressure control solenoid (312) - red connector
IMPORTANT: The 1-2 shift solenoids wires are red and light green. The 2-3 shift solenoid wires are red and yellow.
• The 1-2 shift solenoid (305) - white connector
• The 2-3 shift solenoids (305) - white connectors
• The TCC solenoid (335)
