Installation Procedure

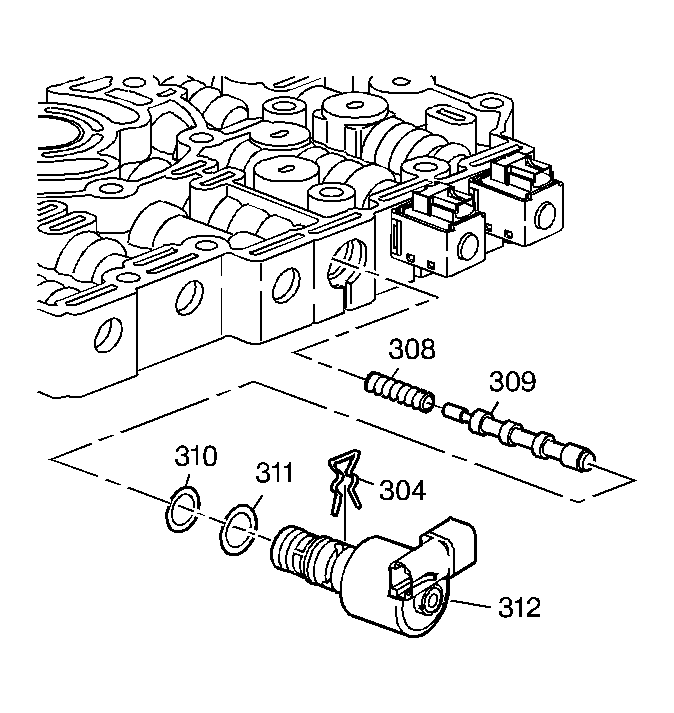

    Fig 1: Exploded View Of Pressure Control Solenoid
    GM20865Courtesy of GENERAL MOTORS CORP.
  1. Install the torque signal regulator spring (308), the torque signal regulator valve (309), the Pressure Control Solenoid (PCS) with two O-rings and screen (312, 309, 310) and the PCS retainer clip (304).
  2. Install the transmission side cover. Refer to Case Side Cover Replacement .
