Output Shaft Sleeve Assembly Installation

Tools Required

J 41228  Output Shaft Sleeve Installer. See Special Tools .

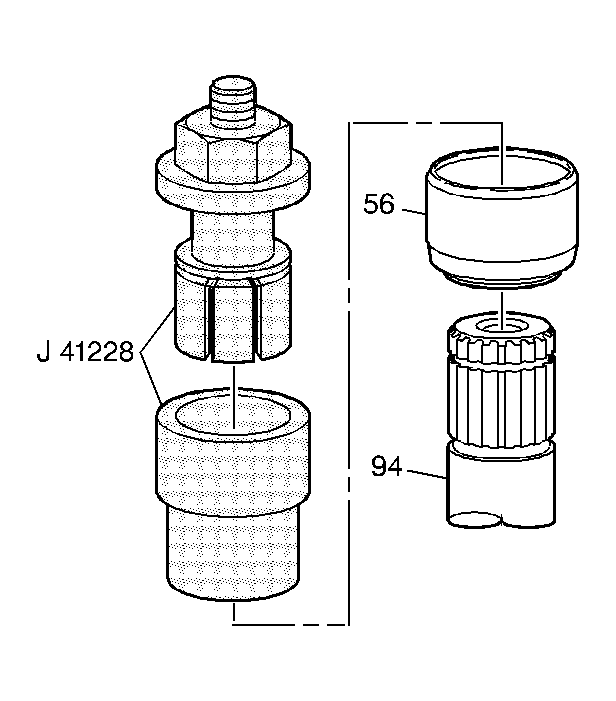

Fig 1: Identifying J 41228
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: You must use the J 41228  in order to install the NEW sleeve onto the output and stub shafts. See Special Tools . If you do not use the J 41228  , you will cause a fluid leak. See Special Tools .
1. Place a NEW sleeve (56) over the end of the output shaft (94).
2. Install the collet into the output shaft snap ring groove with the collet attached to the threaded collet shaft.
3. Place the NEW sleeve installing tube over the collet. Be sure the small outside diameter of the tube fits securely into the sleeve.
4. Install the bearing and nut onto the threaded collet shaft.
5. In order to move the installing tube and press the sleeve onto the output shaft, hold the end of the threaded collet shaft while tightening the nut down.
6. Remove the J 41228  . See Special Tools .

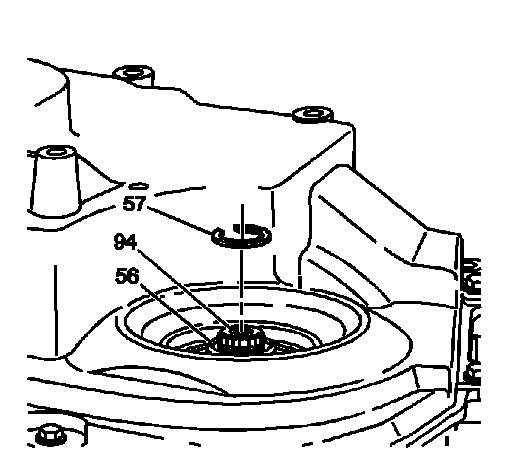

Fig 2: Installing Snap Ring Into Output Shaft Snap Ring Groove
Courtesy of GENERAL MOTORS CORP.
7. Install a new snap ring (57) into the output shaft snap ring groove.
