Output Shaft Inspect

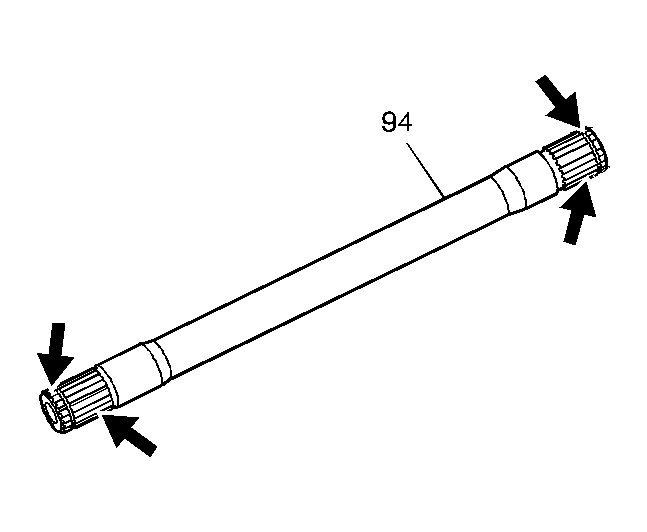

    Fig 1: Inspecting Output Shaft Splines, Journals & Snap Ring Grooves
    GM25654Courtesy of GENERAL MOTORS CORP.
  1. Inspect the output shaft (94) for damage to the splines, snap ring grooves and the journals.
  2. Clean and dry the output shaft.
