Input Speed Sensor Removal

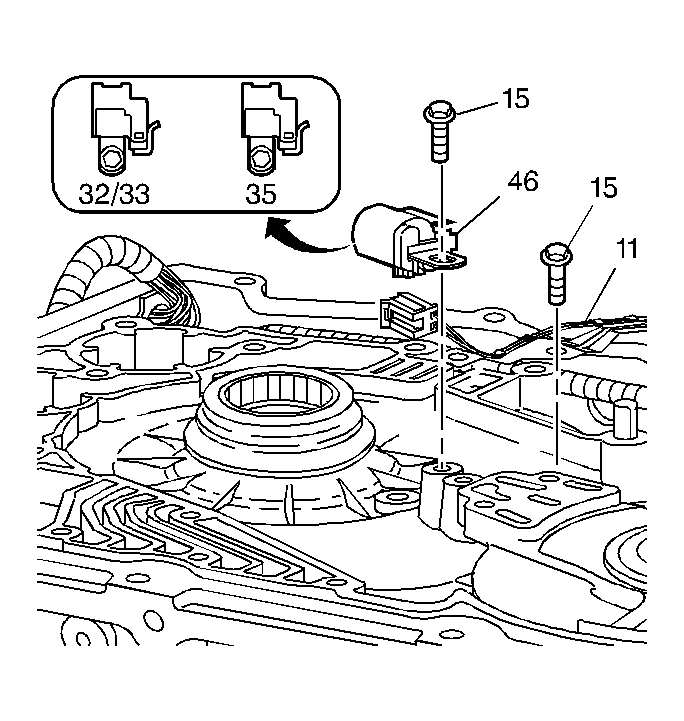

    Fig 1: View Of Input Speed Sensor
    GM55099Courtesy of GENERAL MOTORS CORP.
  1. Remove the wiring harness connector at the input speed sensor (46).
  2. Remove the input speed sensor bolt (15) and the input speed sensor (46).
  3. Remove the wire retainer clip bolt (15) and retainer clip.
