Case Side Cover Removal

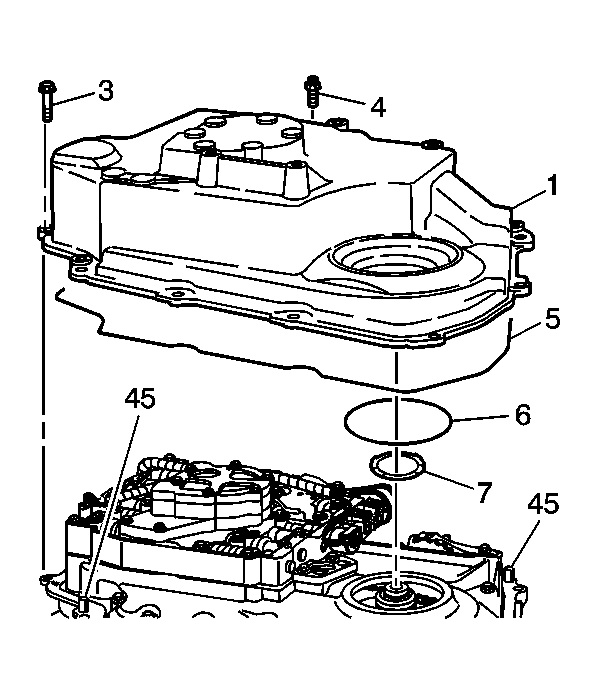

    Fig 1: View Of Case Side Cover Components
    GM55090Courtesy of GENERAL MOTORS CORP.
  1. Rotate the transmission so that the side cover faces upward.
  2. Remove the 11 side cover bolts (3) or studs (4) (model dependant).
    3. NOTE: Pry on the corner of the case side cover near the locating dowel pins (45), to prevent damage to the sealing surfaces.
  3. Remove the transmission side cover (1).
  4. Remove the two side cover gaskets (5 and 6) and the side cover to driven support thrust washer (7), if they did not remain with the side cover.
