Accumulator Spring Removal

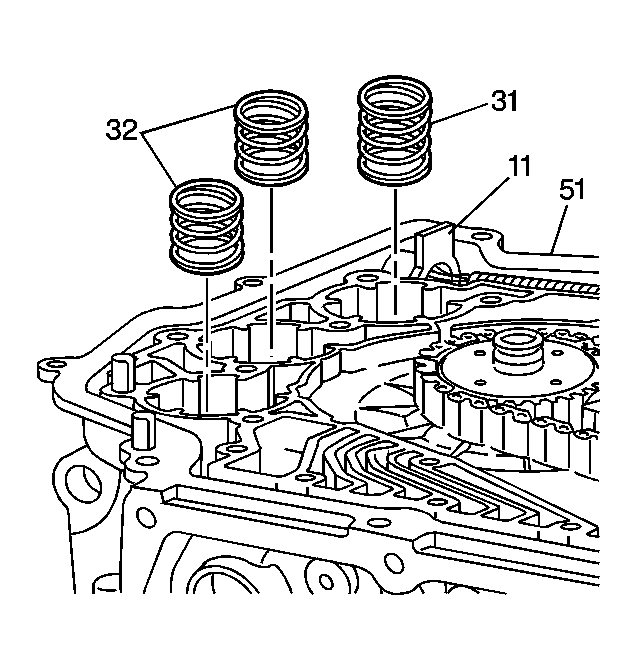

Fig 1: View Of Accumulator Spring
GM20180Courtesy of GENERAL MOTORS CORP.

Remove the three accumulator springs (31 and 32) from the case (51).
