Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors to the DVD player.
Install the DVD player to the console.

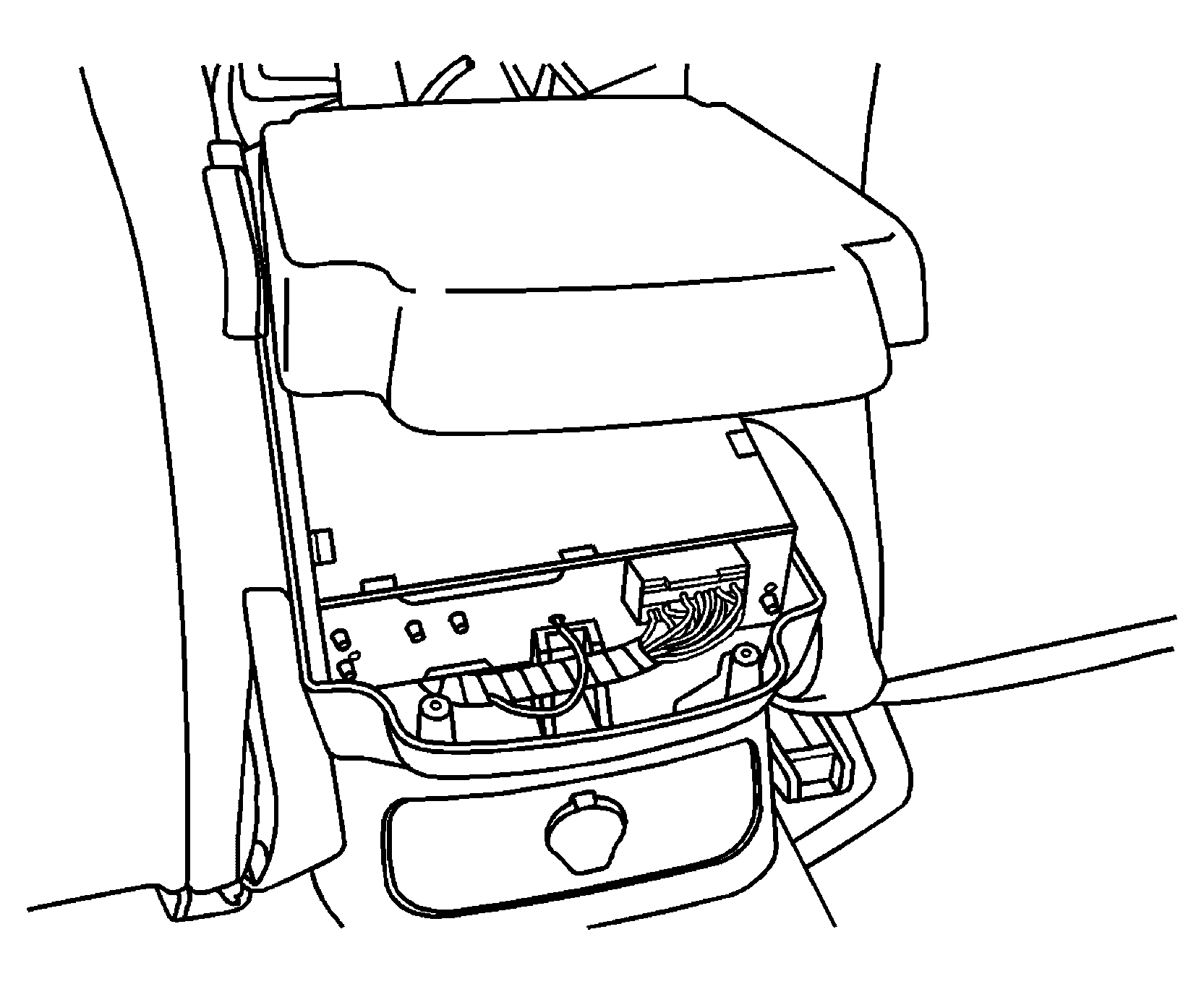

Fig 1: Installing DVD Player
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the mounting screws which secure the DVD player to the console. Tighten: Tighten the screws to 2 N.m (18 lb in).
Install the trim cover to the DVD player.

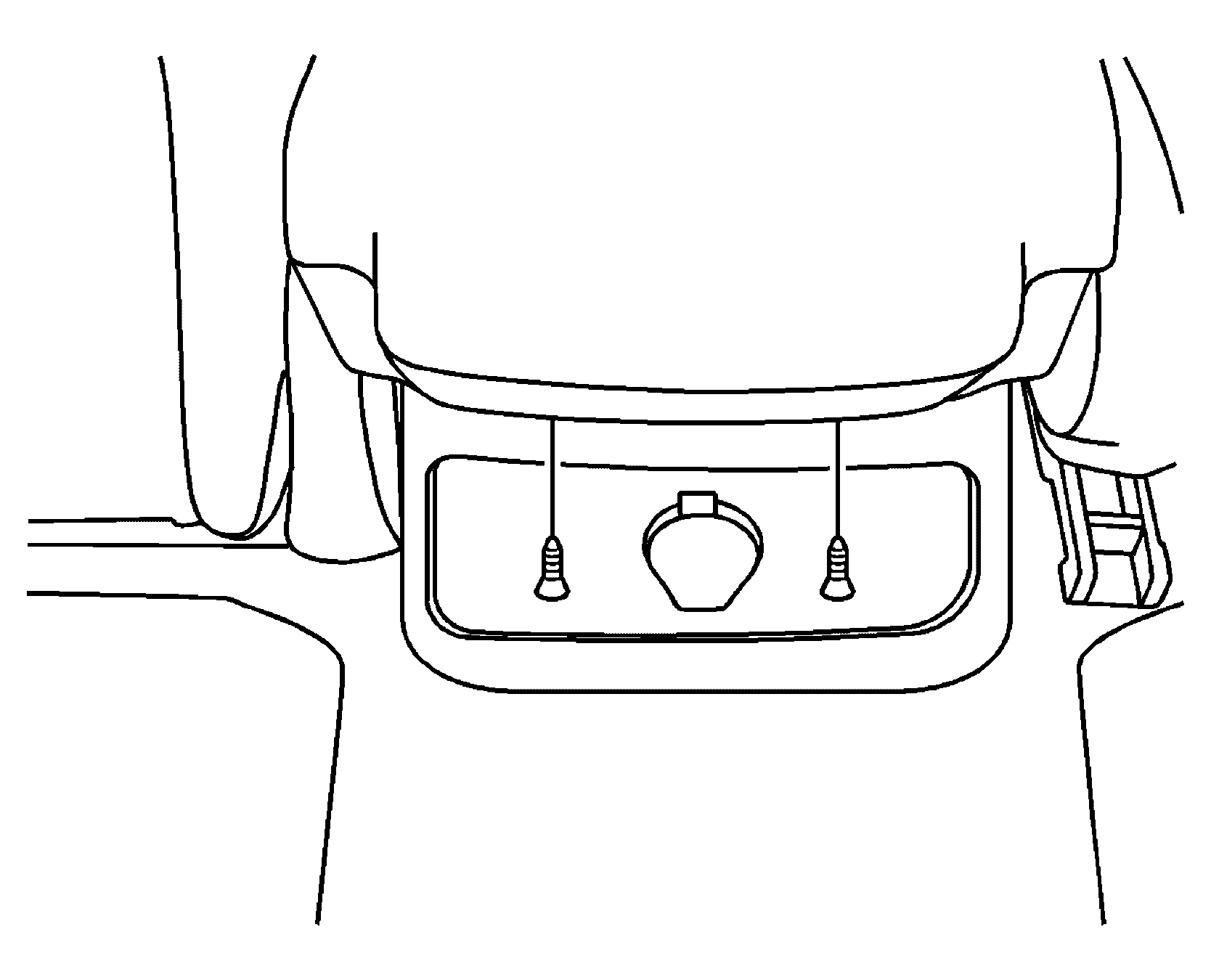

Fig 2: Installing DVD Player Trim Cover
Courtesy of GENERAL MOTORS CORP.
Install the mounting screws to the DVD player trim cover. Tighten: Tighten the screws to 2 N.m (18 lb in).

Fig 3: Installing Mounting Screws In DVD Player Trim Cover
Courtesy of GENERAL MOTORS CORP.
