DTC C0245: Notes

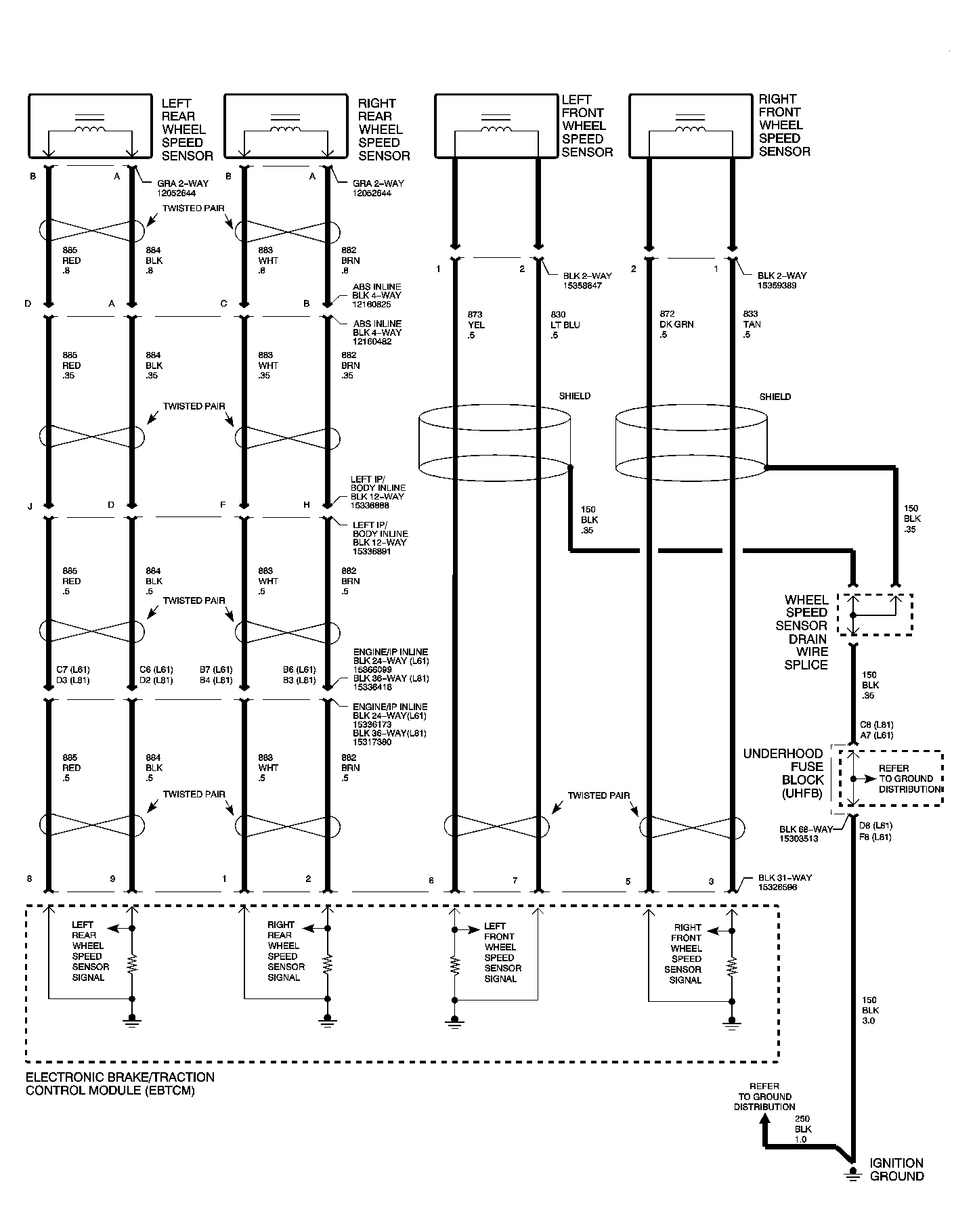

Fig 1: Wheel Speed Sensors Wiring Schematic

GM895647

Courtesy of GENERAL MOTORS CORP.
