Installation Procedure

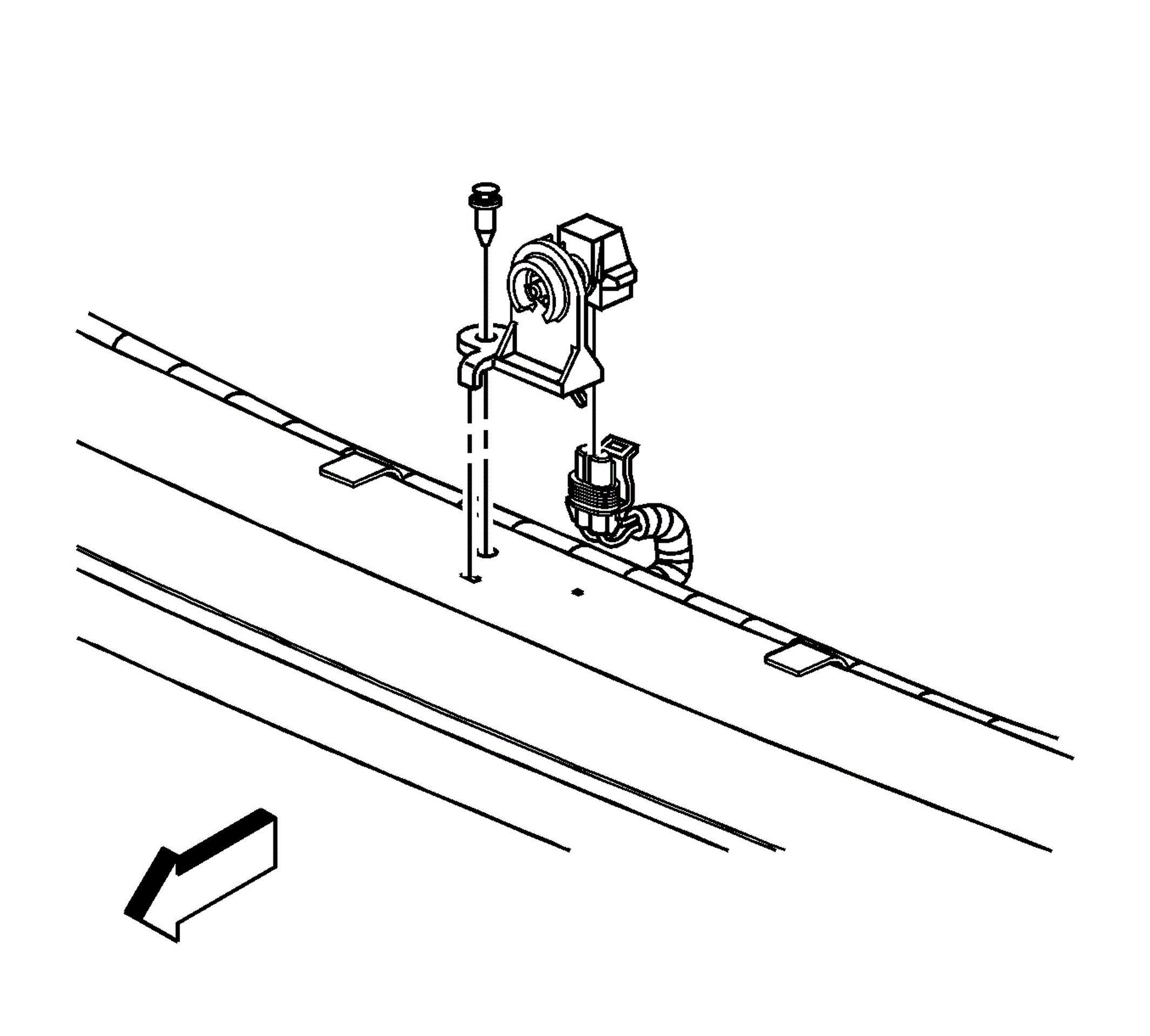

    Fig 1: Removing/Installing Ambient Air Temperature Sensor
    GM1288834Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the ambient air temperature sensor.
  2. Install the ambient air temperature sensor to the impact bar and with the push-in retainer.
  3. Install the front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
