Stationary Windows Connector End Views

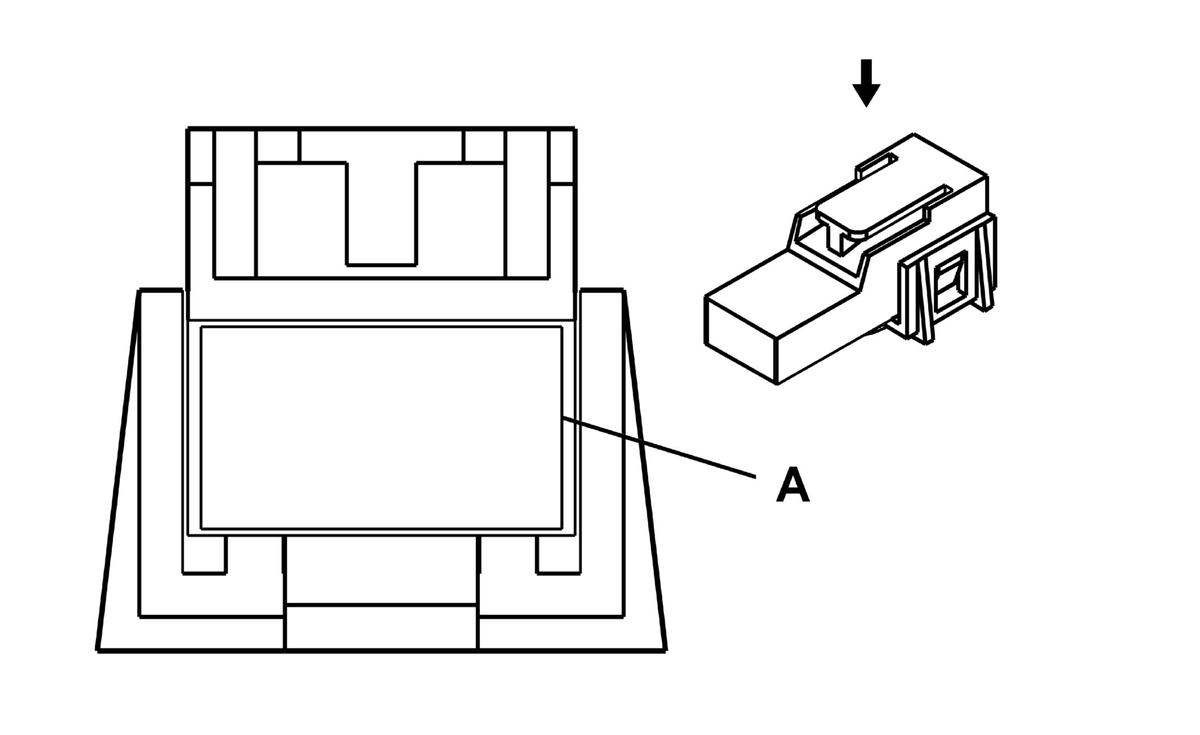

Rear Defogger Grid - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092582 1-Way F Positive Lock Recepticle 6.3 (BK)
Pin	Wire Color	Circuit No.	Function
A	PU	293	Rear Defog Element Supply Voltage

Rear Defogger Grid - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092582 1-Way F Positive Lock Receptacle 6.3 (BK)
Pin	Wire Color	Circuit No.	Function
A	BK	750	Ground
