A/T Fluid Pressure Manual Valve Position Switch (TFP Val. Position Sw.) Assembly

Release fluid pressure routed to the TFP Val. Position Sw. Assembly signals to the PCM that the TCC is released.

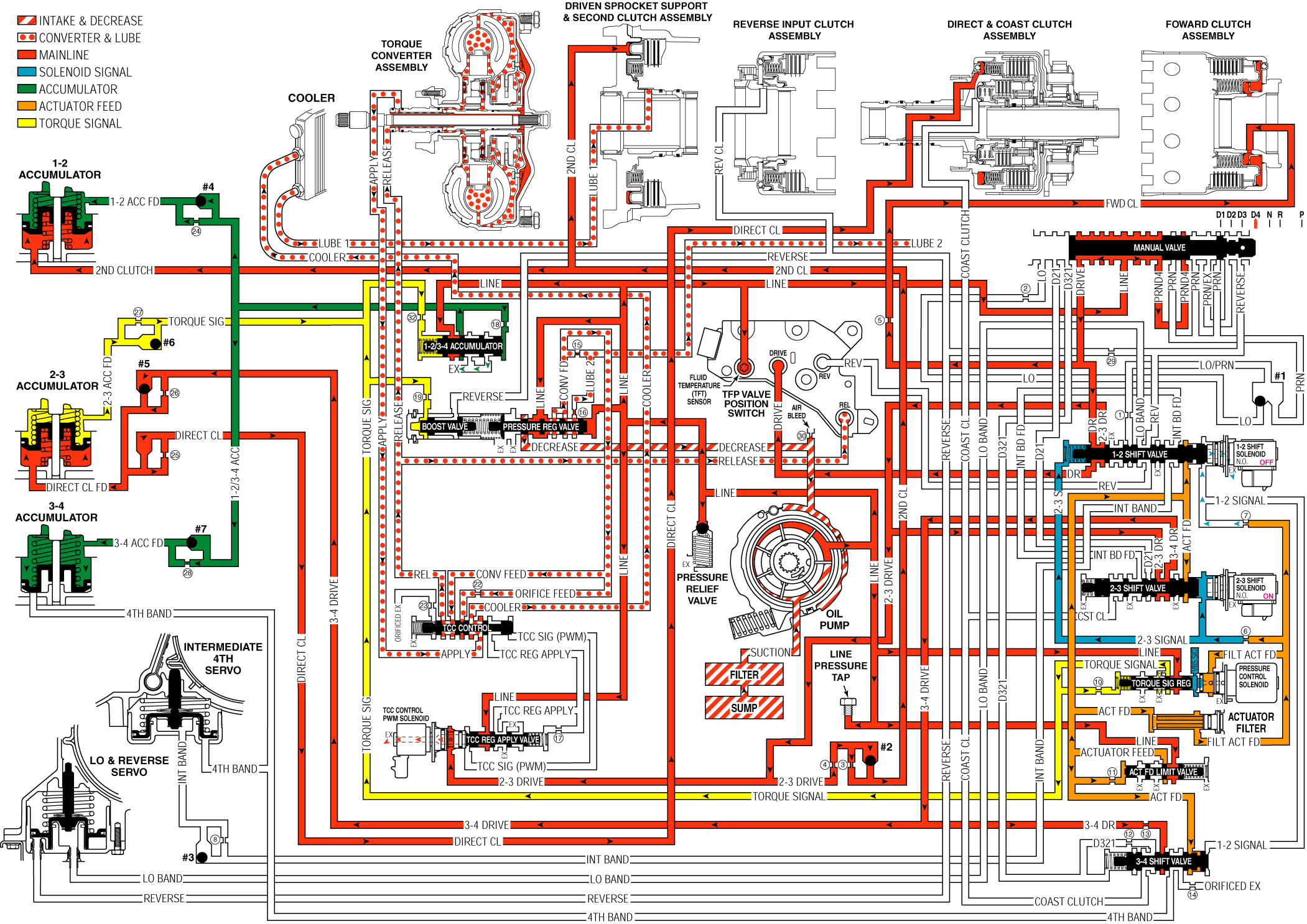

Fig 1: Overdrive Range, Third Gear - TCC Not Applied - Without Electronic Range Select Mode

Courtesy of GENERAL MOTORS CORP.
