Park/Neutral Position (PNP) Switch

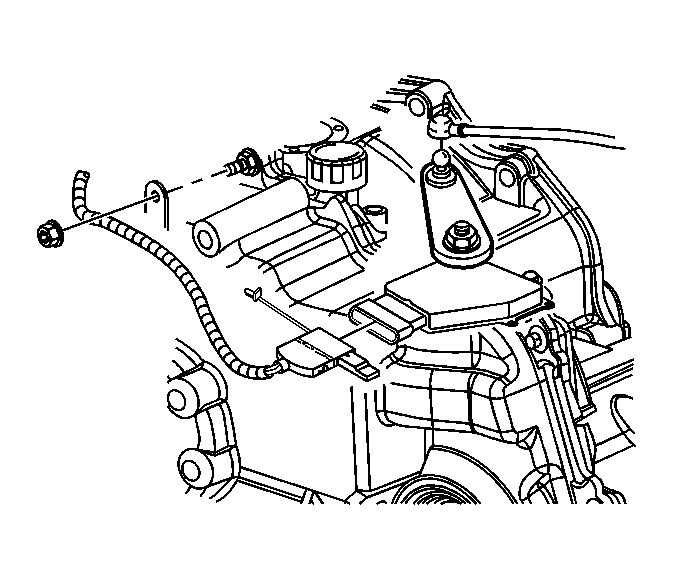

Fig 1: Identifying Shift Control Cable, Lever & Electrical Connector At Transaxle Range (TR) Switch

Courtesy of GENERAL MOTORS CORP.

The PNP switch is located on top of the transaxle. The transaxle range switch contains multiple switches, four of which are used to create a coded signal to the TCM indicating gear selection. The coded signal can be viewed on the Scan tool as TR Switch - P/A/B/C and gear position indicated can be viewed as transaxle Range. The different combinations of the four TCM inputs, P/A/B/C, represent selections from Park to 1st or Invalid/Grounded/Open.

All switches are connected to ignition voltage on one side. When the switch closes, the TCM input is pulled high (HI). When switch is open the input reads low (LOW).
