Inline Harness Connector End Views
WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
C110 (Sedan)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 640 | Battery Positive Voltage | A | OG | 640 | Battery Positive Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | D-BU | 15 | Right Turn Signal Lamps Supply Voltage | C | L-BU | 15 | Right Turn Signal Lamps Supply Voltage |
| D | PK | 1200 | Headlamp High Beam Signal | D | PK | 1200 | Headlamp High Beam Signal |
| E | D-BU | 1201 | Head Lamp Low Beam Signal | E | D-BU | 1201 | Head Lamp Low Beam Signal |
| F | BK | 150 | Ground | F | BK | 150 | Ground |
C111 (Sedan)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 740 | Battery Positive Voltage | A | OG | 640 | Battery Positive Voltage |
| B | BN | 9 | Park Lamp Supply Voltage | B | BN | 9 | Park Lamp Supply Voltage |
| C | L-BU | 14 | Left Turn Signal Lamps Supply Voltage | C | L-BU | 15 | Left Turn Signal Lamps Supply Voltage |
| D | PK | 1200 | Headlamp High Beam Signal | D | PK | 1200 | Headlamp High Beam Signal |
| E | D-BU | 1201 | Headlamp Low Beam Signal | E | D-BU | 1201 | Headlamp Low Beam Signal |
| F | BK | 150 | Ground | F | BK | 150 | Ground |
C121 (DF5)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-GN/BK | 735 | Ambient Air Temperature Sensor | A | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal |
| B | GY/BK | 1798 | Low Reference | B | L-GN/BK | 1798 | Low Reference |
C150 (2.2L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 1744 | Fuel Injector 1 Control | A | BK | 1744 | Fuel Injector 1 Control |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control | B | L-GN/BK | 1745 | Fuel Injector 2 Control |
| C | PK/BK | 1746 | Fuel Injector 3 Control | C | PK/BK | 1746 | Fuel Injector 3 Control |
| D | L-BU/BK | 844 | Fuel Injector 4 Control | D | L-BU/BK | 844 | Fuel Injector 4 Control |
| E | PK | 839 | Ignition 1 Voltage | E | PK | 139 | Ignition 1 Voltage |
| F | OR/BK | 469 | Low Reference | F | OR/BK | 469 | Low Reference |
| G | L-GN | 432 | MAP Sensor Signal | G | L-GN | 432 | MAP Sensor Signal |
| H | GY | 2704 | 5-Volt Reference | H | GY | 2704 | 5-Volt Reference |
C150 (2.0L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5293 | Ignition 1 Voltage | A | PK/BK | 5293 | Ignition 1 Voltage |
| B | BK | 1744 | Fuel Injector 1 Control | B | BK | 1744 | Fuel Injector 1 Control |
| C | L-GN/BK | 1745 | Fuel Injector 2 Control | C | L-GN/BK | 1745 | Fuel Injector 2 Control |
| D | PK/BK | 1746 | Fuel Injector 3 Control | D | PK/BK | 1746 | Fuel Injector 3 Control |
| E | L-BU/BK | 844 | Fuel Injector 4 Control | E | L-BU/BK | 844 | Fuel Injector 4 Control |
C155 (2.0L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5292 | Ignition 1 Voltage | A | PK/BK | 5292 | Ignition 1 Voltage |
| B | PU | 6413 | Low Reference | B | VT | 6413 | Low Reference |
| C | BN/WH | 6405 | IC 1 Control | C | TN/WH | 6405 | IC 1 Control |
| D | D-BU/WH | 6406 | IC 3 Control | D | D-BU/WH | 6406 | IC 3 Control |
| E | D-GN/WH | 6407 | IC 4 Control | E | D-GN/WH | 6407 | IC 4 Control |
| F | L-BU/WH | 6408 | IC 2 Control | F | L-BU/WH | 6408 | IC 2 Control |
| G | BK/WH | 451 | Ground | G | BK/WH | 451 | Ground |
| H | - | - | Not Used | H | - | - | Not Used |
C160 (JM4/JL9)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 872 | Right Front Wheel Speed Sensor Signal | A | L-BU | 872 | Right Front Wheel Speed Sensor Signal |
| B | TN | 833 | Right Front Wheel Speed Sensor Low Reference | B | YE | 833 | Right Front Wheel Speed Sensor Low Reference |
C161 (JM4/JL9)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 830 | Left Front Wheel Speed Sensor Signal | A | L-BU | 872 | Left Front Wheel Speed Sensor Signal |
| B | YE | 873 | Left Front Wheel Speed Sensor Low Reference | B | YE | 833 | Left Front Wheel Speed Sensor Low Reference |
C171 (2.0L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | - | - | Not Used | A | - | - | Not Used |
| B | L-BU | 6118 | IAT 2 Sensor Signal | B | L-BU | 6118 | IAT 2 Sensor Signal |
| C | D-GN | 335 | Low Speed Cooling Fan Relay Control | C | D-GN | 335 | Low Speed Cooling Fan Relay Control |
| D | D-BU | 473 | High Speed Cooling Fan Relay Control | D | D-BU | 473 | High Speed Cooling Fan Relay Control |
| E | GY | 2700 | 5-Volt Reference | E | GY | 2700 | 5-Volt Reference |
| F | RD/BK | 380 | A/C Refrigerant Pressure Sensor Signal | F | RD/BK | 380 | A/C Refrigerant Pressure Sensor Signal |
| G | BK | 2751 | Low Reference | G | BK | 2751 | Low Reference |
| H | PK/BK | 5290 | Ignition 1 Voltage | H | PK/BK | 5290 | Ignition 1 Voltage |
C200
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 115 | Right Rear Speaker Output (-) | 1 | L-BU | 115 | Right Rear Speaker Output (-) |
| 2 | D-BU | 46 | Right Rear Speaker Output (+) | 2 | D-BU | 46 | Right Rear Speaker Output (+) |
| 3 | YE | 116 | Left Rear Speaker Output (-) | 3 | YE | 116 | Left Rear Speaker Output (-) |
| 4 | BN | 199 | Left Rear Speaker Output (+) | 4 | BN | 199 | Left Rear Speaker Door Output (+) |
| 5 | D-GN | 117 | Right Front Speaker Output (-) | 5 | D-GN | 117 | Right Front Speaker Door Output (-) |
| 6 | L-GN | 200 | Right Front Speaker Output (+) | 6 | L-GN | 200 | Right Front Speaker Door Output (+) |
| 7 | GY | 118 | Left Front Speaker Output (-) | 7 | GY | 118 | Left Front Speaker Door Output (-) |
| 8 | TN | 201 | Left Front Speaker Output (+) | 8 | TN | 201 | Left Front Speaker Door Output (+) |
| 9 | PK | 314 | Radio On Signal | 9 | PK | 314 | Radio On Signal (UZ6) |
| 10 | L-BU | 1957 | Left Front Midrange Speaker Output (-) | 10 | GY | 118 | Left Front Speaker Output (-) (UZ6) |
| 10 | L-BU | 1957 | Left Front Midrange Speaker Output (-) (U79/UX7) | ||||
| 11 | D-BU | 1857 | Left Front Midrange Speaker Output (+) | 11 | TN | 201 | Left Front Speaker Output (+) (UZ6) |
| 11 | D-BU | 1857 | Left Front Midrange Speaker Output (+) (U79/UX7) | ||||
| 12 | TN | 2133 | Side Impact Sensing Module - Right - Voltage | 12 | TN | 2133 | Side Impact Sensing Module - Right - Voltage |
| 13 | D-GN | 2134 | Side Impact Sensing Module - Right - Voltage | 13 | D-GN | 2134 | Side Impact Sensing Module - Right - Voltage |
| 14 | L-GN | 2116 | Seat Belt Pretensioner - Right - High Control | 14 | L-GN | 2116 | Seat Belt Pretensioner - Right - High Control |
| 15 | OG | 2117 | Seat Belt Pretensioner - Right - Low Control | 15 | OG | 2117 | Seat Belt Pretensioner - Right - Low Control |
| 16 | - | - | Not Used | 16 | - | - | Not Used |
C201 (2.2L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | PU | 420 | Stop Lamp Switch Signal | A1 | PU | 420 | Stop Lamp Switch Signal |
| A2 | - | - | Not Used | A2 | - | - | Not Used |
| A3 | BK/WH | 56 | Supply Voltage | A3 | BK/WH | 56 | Valet Switch Release Actuator |
| A4 | TN/WH | 2500 | High Speed GM LAN Serial Data Bus (+) | A4 | TN/WH | 2500 | High Speed GM LAN Serial Data Bus (+) |
| A5 | TN | 2501 | High Speed GM LAN Serial Data Bus (-) | A5 | TN | 2501 | High Speed GM LAN Serial Data Bus (-) |
| A6 | OG | 1140 | Battery Positive Voltage | A6 | OG | 1140 | Battery Positive Voltage |
| OG | 1140 | Battery Positive Voltage | |||||
| A7 | BK/WH | 2118 | Seat Belt Pretensioner - Left - High Control | A7 | BK/WH | 2118 | Seat Belt Pretensioner - Left - Front |
| A8 | OG/BK | 2119 | Seat Belt Pretensioner - Left - Low Control | A8 | OG/BK | 2119 | Seat Belt Pretensioner - Left - Front |
| A9 | - | - | Not Used | A9 | - | - | Not Used |
| A10 | L-BU | 1957 | Left Front Speaker Output (+) | A10 | L-BU | 1957 | Left Front Door Tweeter Speaker (-) |
| A11 | D-BU | 1857 | Left Front Midrange Speaker Output (-) | A11 | D-BU | 1857 | Left Front Door Speaker (+) |
| B1 | - | - | Not Used | B1 | - | - | Not Used |
| B2 | L-GN | 1715 | Windshield Wiper Switch High Signal | B2 | L-GN | 1715 | Windshield Wiper Switch High Signal Power Voltage |
| B3 | YE | 575 | Starter Control | B3 | YE | 575 | Starter Control |
| B4 | BN/WH | 419 | Malfunction Indicator Lamp (MIL) Control | B4 | BN/WH | 419 | MIL Control |
| B5 | L-BU | 1888 | Cruise Control Servo Clutch Control | B5 | L-BU | 1888 | Cruise Control Servo Clutch Control |
| B6 | L-GN | 1887 | Cruise Control Servo Move Direction Signal | B6 | L-GN | 1887 | Cruise Control Servo Move Direction Signal |
| B7 | PK | 1886 | Cruise Control Servo Move Signal | B7 | PK | 1886 | Cruise Control Servo Move Signal |
| B8 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal | B8 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal |
| B9 | WH | 2132 | Side Impact Sensing Module - Left - Signal | B9 | WH | 2132 | Inflatable Restraint Side Impact Sensor - Left |
| B10 | YE | 2131 | Side Impact Sensing Module - Left - Voltage | B10 | YE | 2131 | Inflatable Restraint Side Impact Sensor - Left Signal |
| B11 | - | - | Not Used | B11 | - | - | Not Used |
C201 (2.0L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | PU | 420 | Stop Lamp Switch Signal | A1 | PU | 420 | Stop Lamp Switch Signal |
| A2 | BN/WH | 419 | MIL Control | A2 | BN/WH | 419 | MIL Control |
| A3 | BK/WH | 56 | Rear Compartment Lid Release Switch | A3 | BK/WH | 56 | Rear Compartment Lid Release Switch |
| A4-A5 | - | - | Not Used | A4-A5 | - | - | Not Used |
| A6 | OG | 1140 | Battery Positive Voltage | A6 | OG | 1140 | Battery Positive Voltage |
| OG | 1140 | Battery Positive Voltage | |||||
| A7 | BK/WH | 2118 | Seat Belt Pretensioner - Left - High Control | A7 | BK/WH | 2118 | Seat Belt Pretensioner - Left - High Control |
| A8 | OG/BK | 2119 | Seat Belt Pretensioner - Left - Low Control | A8 | OG/BK | 2119 | Seat Belt Pretensioner - Left - Front |
| A9 | WH/BK | 1164 | 5-Volt Reference | A9 | WH/BK | 1164 | 5-Volt Reference |
| A10 | BN | 1271 | Low Reference | A10 | BN | 1271 | Low Reference |
| A11 | D-BU | 1161 | APP Sensor 1 Signal | A11 | D-BU | 1161 | APP Sensor 1 Signal |
| B1 | BN/WH | 379 | CPP Switch Signal | B1 | BN/WH | 379 | CPP Switch Signal |
| B2 | L-GN | 1715 | Windshield Wiper Switch High Signal | B2 | L-GN | 1715 | Windshield Wiper Switch High Signal |
| B3 | YE | 575 | Starter Control | B3 | YE | 575 | Starter Control |
| B4 | YE | 2131 | Side Impact Sensing Module - Left -Voltage | B4 | YE | 2131 | Side Impact Sensing Module - Left -Voltage |
| B5 | WH | 2132 | Side Impact Sensing Module - Left - Signal | B5 | WH | 2132 | Side Impact Sensing Module - Left - Signal |
| B6 | L-BU | 1957 | Left Front Midrange Speaker Output (-) | B6 | L-BU | 1957 | Left Front Midrange Speaker Output (-) |
| B7 | D-BU | 1857 | Left Front Midrange Speaker Output (+) | B7 | D-BU | 1857 | Left Front Midrange Speaker Output (+) |
| B8 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal | B8 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal |
| B9 | TN | 1274 | 5-Volt Reference | B9 | TN | 1274 | 5-Volt Reference |
| B10 | PU | 1272 | Low Reference | B10 | PU | 1272 | Low Reference |
| B11 | L-BU | 1162 | APP Sensor 2 Signal | B11 | L-BU | 1162 | APP Sensor 2 Signal |
C215
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | BN | 3020 | Steering Wheel Module - Stage 1 - Low Control | A1 | BN | 3020 | Steering Wheel Module - Stage 1 - Low Control |
| A2 | TN | 3021 | Steering Wheel Module - Stage 1 - High Control | A2 | TN | 3021 | Steering Wheel Module - Stage 1 - High Control |
| B1 | PK | 3022 | Steering Wheel Module - Stage 2 - Low Control | B1 | PK | 3022 | Steering Wheel Module - Stage 2 - Low Control |
| B2 | WH | 3023 | Steering Wheel Module - Stage 2 - High Control | B2 | WH | 3023 | Steering Wheel Module - Stage 2 - High Control |
C216
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | L-GN/RD | 3024 | I/P Module - Stage 1 - High Control | A1 | OG | 3024 | I/P Module - Stage 1 - High Control |
| A2 | RD/WH | 3025 | I/P Module - Stage 1 - Low Control | A2 | YE | 3025 | I/P Module - Stage 1 - Low Control |
| B1 | PK/BK | 3026 | I/P Module - Stage 2 - Low Control | B1 | PU | 3026 | I/P Module - Stage 2 - Low Control |
| B2 | L-BU/OG | 3027 | I/P Module - Stage 2 - High Control | B2 | GY | 3027 | I/P Module - Stage 2 - High Control |
C218 (ASF)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | PU/WH | 5019 | Roof Rail Module - Left - High Control | A1 | PU/WH | 5019 | Roof Rail Module - Left - High Control |
| A2 | PK | 5020 | Roof Rail Module - Left - Low Control | A2 | PK | 5020 | Roof Rail Module - Left - Low Control |
| B1 | YE/BK | 5021 | Roof Rail Module - Right - High Control | B1 | YE/BK | 5021 | Roof Rail Module - Right - High Control |
| B2 | WH/BK | 5022 | Roof Rail Module - Right - Low Control | B2 | WH/BK | 5022 | Roof Rail Module - Right - Low Control |
C220 (2.0L)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | TN | 1274 | 5-Volt Reference | A | TN | 1274 | 5-Volt Reference |
| B | L-BU | 1162 | APP Sensor 2 Signal | B | L-BU | 1162 | APP Sensor 2 Signal |
| C | PU | 1272 | Low Reference | C | PU | 1272 | Low Reference |
| D | BN | 1271 | Low Reference | D | BN | 1271 | Low Reference |
| E | D-BU | 1161 | APP Sensor 1 Signal | E | D-BU | 1161 | APP Sensor 1 Signal |
| F | WH/BK | 1164 | 5-Volt Reference | F | WH/BK | 1164 | 5-Volt Reference |
C225
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 140 | Battery Positive Voltage | A | OG | 140 | Battery Positive Voltage |
| B | L-BU | 20 | Stop Lamp Switch Signal | B | L-BU | 20 | Stop Lamp Switch Signal |
| C | PK | 339 | Ignition 1 Voltage | C | PK | 339 | Ignition 1 Voltage |
| D | PU | 420 | Stop Lamp Switch Signal | D | PU | 420 | Stop Lamp Switch Signal |

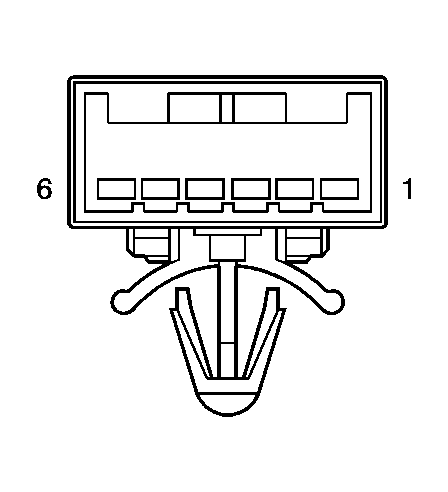

C235 (2.2L w/K34)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PK | 339 | Ignition 1 Voltage | 1 | BK | 339 | Ignition 1 Voltage |
| 2 | L-BU | 1888 | Cruise Control Servo Clutch Control | 2 | BK | 1888 | Cruise Control Servo Clutch Control |
| 3 | PU | 420 | Stop Lamp Switch - Lower | 3 | BK | 420 | Stop Lamp Switch - Lower |
| 4 | PK | 1886 | Cruise Control Servo Move Signal | 4 | BK | 1886 | Cruise Control Servo Move Signal |
| 5 | BK | 550 | Ground | 5 | BK | 550 | Ground |
| 6 | L-GN | 1887 | Cruise Control Servo Move Direction Signal | 6 | BK | 1887 | Cruise Control Servo Move Direction Signal |
C340 (UE1/U2K)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1340 | Battery Positive Voltage | A | OG | 1340 | Battery Positive Voltage |
| B | PU | 1807 | Class 2 Serial Data (UE1) | B | PU | 1807 | Class 2 Serial Data (UE1) |
| C | YE/BK | 693 | Cellular Telephone Mute Signal (UE1) | C | YE/BK | 693 | Cellular Telephone Mute Signal (UE1) |
| D | BARE | 814 | Drain Wire (UE1) | D | BARE | 814 | Drain Wire (UE1) |
| E | BN/WH | 367 | Remote Radio Left Audio Signal (U2K) | E | BN/WH | 367 | Remote Radio Left Audio Signal (U2K) |
| F | BK/WH | 372 | Remote Radio Audio Output (-) (U2K) | F | BK/WH | 372 | Remote Radio Audio Output (-) (U2K) |
| G | D-GN/WH | 368 | Remote Radio Right Audio Signal (U2K) | G | D-GN/WH | 368 | Remote Radio Right Audio Signal (U2K) |
| H | OG/BK | 2061 | Cellular Telephone Voice Low Reference (UE1) | H | OG/BK | 2061 | Cellular Telephone Voice Low Reference (UE1) |
| J | PK/BK | 2062 | Cellular Telephone Voice Signal (UE1) | J | PK/BK | 2062 | Cellular Telephone Voice Signal (UE1) |
| K | D-GN | 5060 | Low Speed GMLAN Serial Data (U2K) | K | D-GN | 5060 | Low Speed GMLAN Serial Data (U2K) |
C351 (M43/M75)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 8 | Instrument Panel Lamp Supply Voltage - 1 | A | GY | 8 | Instrument Panel Lamp Supply Voltage - 1 |
| B | BN | 323 | Shift Lock Solenoid Supply Voltage | B | BN | 323 | Shift Lock Solenoid Supply Voltage |
| C | D-GN/WH | 1932 | Transmission Shift Select Switch (Park) Signal | C | D-GN/WH | 1932 | Transmission Shift Select Switch (Park) Signal |
| D | BK | 550 | Ground | D | BK | 550 | Ground |
C375 (Sedan)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 243 | Accessory Voltage | A | YE | 243 | Accessory Voltage |
| B | L-GN | 24 | Backup Lamp Supply Voltage | B | L-GN | 24 | Backup Lamp Supply Voltage |
| C | BK | 750 | Ground | C | BK | 750 | Ground |
| D | GY/BK | 1798 | Low Reference (DF5) | D | L-GN/BK | 1798 | Low Reference |
| E | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal (DF5) | E | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal |
| F | OG | 1732 | Inadvertent Power Supply Voltage | F | OG | 1732 | Inadvertent Power Supply Voltage |
| OG | 1732 | Inadvertent Power Supply Voltage | |||||
| G | WH | 156 | Courtesy Lamp Low Control | G | WH | 156 | Courtesy Lamp Low Control |
| WH | 156 | Courtesy Lamp Low Control | |||||
| H | L-BU | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal | H | L-BU | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal |
C375 (Coupe)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 243 | Accessory Voltage | A | YE | 243 | Accessory Voltage |
| B | L-GN | 24 | Backup Lamp Supply Voltage | B | L-GN | 24 | Backup Lamp Supply Voltage |
| C | BK | 750 | Ground | C | BK | 750 | Ground |
| D | GY/BK | 1798 | Low Reference (2.2L) | D | L-GN/BK | 1798 | Low Reference (DF5) |
| E | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal (2.2L) | E | L-GN/BK | 735 | Ambient Air Temperature Sensor Signal (DF5) |
| F | OG | 1732 | Inadvertent Power Supply Voltage | F | OG | 1732 | Inadvertent Power Supply Voltage |
| OG | 1732 | Inadvertent Power Supply Voltage (2.0L) | OG | 1732 | Inadvertent Power Supply Voltage | ||
| G | WH | 156 | Courtesy Lamp Low Control | G | WH | 156 | Courtesy Lamp Low Control |
| WH | 156 | Courtesy Lamp Low Control | |||||
| H | L-BU | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal | H | L-BU | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal |
C380 (UE1)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN/WH | 2517 | Keypad Red LED Signal | A | BN/WH | 2517 | Keypad Red LED Signal |
| B | YE/BK | 2516 | Keypad Green LED Signal | B | YE/BK | 2516 | Keypad Green LED Signal |
| C | D-GN/WH | 2514 | Keypad Signal | C | D-GN/WH | 2514 | Keypad Signal |
| D | L-GN/BK | 2515 | Keypad Supply Voltage | D | L-GN/BK | 2515 | Keypad Supply Voltage |
| E | BARE | 654 | Cellular Telephone Microphone Low Reference | E | BARE | 654 | Cellular Telephone Microphone Low Reference |
| F | GY | 655 | Cellular Microphone Signal | F | GY | 655 | Cellular Microphone Signal |
C401
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK | 850 | Ground | A | BK | 850 | Ground |
| B | D-GN | 146 | Trunk Ajar Indicator Control (AU0) | B | OG/BK | 737 | Rear Compartment Lamp Control (W/O AUO) |
| D-GN | 146 | Trunk Ajar Indicator Control (AU0) | |||||
| C | BN | 9 | Park Lamp Supply Voltage | C | BN | 9 | Park Lamp Supply Voltage |
| D | BK/WH | 56 | Trunk Release Motor Control | D | BK/WH | 56 | Trunk Release Motor Control |
C406 (EVAP Controls)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | PK | 439 | Ignition 1 Voltage (2.2L) | A | PK | 439 | Ignition 1 Voltage (2.2L) |
| OG | 840 | Battery Positive Voltage (2.0L) | OG | 840 | Battery Positive Voltage (2.0L) | ||
| B1 | WH | 1310 | EVAP Canister Vent Solenoid Control | B | WH | 1310 | EVAP Canister Vent Solenoid Control |
| C1-D1 | - | - | Not Used | C-D | - | - | Not Used |
C406 (Rear WSS) (JM4/JL9)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A2 | WH | 883 | Right Rear Wheel Speed Sensor Low Reference | A | WH | 883 | Right Rear Wheel Speed Sensor Low Reference |
| B2 | BN | 882 | Right Rear Wheel Speed Sensor Signal | B | BN | 882 | Right Rear Wheel Speed Sensor Signal |
| C2 | RD | 885 | Left Rear Wheel Speed Sensor Low Reference | C | RD | 885 | Left Rear Wheel Speed Sensor Low Reference |
| D2 | BK | 884 | Left Rear Wheel Speed Sensor Signal | D | BK | 884 | Left Rear Wheel Speed Sensor Signal |
C406 (Fuel Controls)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A3 | BK | 650 | Ground | A | BK | 650 | Ground |
| B3 | BK | 2759 | Low Reference | B | PK/OG | 2759 | Low Reference |
| BK | 2759 | Low Reference | |||||
| C3 | GY | 120 | Fuel Pump Supply Voltage | C | PK/BK | 120 | Fuel Pump Supply Voltage |
| D3 | PU | 1589 | Fuel Level Sensor Signal | D | YE/WH | 1589 | Fuel Level Sensor Signal |
| E3 | - | - | Not Used | E | - | - | Not Available |
| F3 | GY | 705 | 5-Volt Reference | F | BN/WH | 416 | 5-Volt Reference |
| G3 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | G | GY/RD | 890 | Fuel Tank Pressure Sensor Signal |
| H3 | BK | 2759 | Low Reference | H | RD/PK | 2759 | Low Reference |
C490
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 19 | Right Rear Stop/Turn Lamp Supply Voltage | A | YE | 19 | Right Rear Stop/Turn Lamp Supply Voltage |
| B | L-BU | 20 | Stop Lamp Switch Signal | B | L-BU | 20 | Stop Lamp Switch Signal |
| C | BN | 9 | Park Lamp Supply Voltage | C | BN | 9 | Park Lamp Supply Voltage |
| D | L-GN | 24 | Backup Lamp Supply Voltage | D | L-GN | 24 | Backup Lamp Supply Voltage |
| E | BK | 850 | Ground | E | BK | 850 | Ground |
| F | - | - | Not Used | F | - | - | Not Used |
C491
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage | A | YE | 18 | Left Rear Stop/Turn Lamp Supply Voltage |
| B | L-BU | 20 | Stop Lamp Switch Signal | B | L-BU | 20 | Stop Lamp Switch Signal |
| C | BN | 9 | Park Lamp Supply Voltage | C | BN | 9 | Park Lamp Supply Voltage |
| D | L-GN | 24 | Backup Lamp Supply Voltage | D | L-GN | 24 | Backup Lamp Supply Voltage |
| E | BK | 750 | Ground | E | BK | 750 | Ground |
| F | - | - | Not Used | F | - | - | Not Used |
C501 (AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 1857 | Left Front Speaker Output (-) | A | D-BU | 1857 | Left Front Speaker Output (-) |
| B | L-BU | 1957 | Left Front Speaker Output (+) | B | L-BU | 1957 | Left Front Speaker Output (+) |
| C | WH | 682 | Door Lock/Unlock Signal (AU3) | C | WH | 682 | Door Lock/Unlock Signal (AU3) |
| D | BK | 650 | Ground (AU3) | D | BK | 650 | Ground (AU3 w/D35) |
| PU/WH | 889 | Passenger Mirror Motor Down Control (Sedan w/DG7) | PU/WH | 889 | Passenger Mirror Motor Down Control (Sedan w/DG7) | ||
| E | TN | 694 | Driver Door Lock Actuator Unlock Control | E | TN | 694 | Driver Door Lock Actuator Unlock Control |
| F | GY | 295 | Door Lock Actuator Unlock Control | F | GY | 295 | Door Lock Actuator Lock Control |
| G | RD/WH | 881 | Passenger Mirror Motor Right Control (Sedan w/DG7) | G | RD/WH | 881 | Passenger Mirror Motor Right Control (Sedan w/DG7) |
| WH | 2132 | Side Impact Sensing Module - Left - Signal (Coupe w/ASF) | WH | 2132 | Side Impact Sensing Module - Left - Signal (Coupe w/ASF) | ||
| H | GY | 90 | Passenger Mirror Motor Up/Right (Sedan w/DG7) | H | GY | 90 | Passenger Mirror Motor Up/Right (Sedan w/DG7) |
| YE | 2131 | Side Impact Sensing Module - Left - Voltage (Coupe w/ASF) | YE | 2131 | Side Impact Sensing Module - Left - Voltage (Coupe w/ASF) | ||
C503 (Coupe w/A31 and DG7)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | OG | 1732 | Courtesy Lamps Supply Voltage (DG7) | A | OG | 1732 | Courtesy Lamps Supply Voltage (DG7) |
| B | RD/WH | 881 | Passenger Mirror Motor Right Control (DG7) | B | RD/WH | 881 | Passenger Mirror Motor Right Control (DG7) |
| C | PU/WH | 889 | Passenger Mirror Motor Down Control (DG7) | C | PU/WH | 889 | Passenger Mirror Motor Down Control (DG7) |
| D | GY | 90 | Passenger Mirror Motor Left Control (DG7) | D | GY | 90 | Passenger Mirror Motor Left Control (DG7) |
| E | BN | 441 | Ignition 3 Voltage (A31) | E | BN | 441 | Ignition 3 Voltage (A31) |
| F | L-BU | 166 | Power Window Master Switch Right Front Up Signal (A31) | F | L-BU | 166 | Power Window Master Switch Right Front Up Signal (A31) |
| G | TN | 167 | Power Window Master Switch Right Front Down Signal (A31) | G | TN | 167 | Power Window Master Switch Right Front Down Signal (A31) |
| H | BK | 650 | Ground | H | BK | 650 | Ground |
C503 (Sedan w/A31 and DG7)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BN | 441 | Ignition 3 Voltage (A31) | A | BN | 441 | Ignition 3 Voltage (A31) |
| B | L-BU | 166 | Power Window Master Switch Right Front Up Signal (A31) | B | L-BU | 166 | Power Window Master Switch Right Front Up Signal (A31) |
| C | TN | 167 | Power Window Master Switch Right Front Down Signal (A31) | C | TN | 167 | Power Window Master Switch Right Front Down Signal (A31) |
| D | D-GN | 168 | Power Window Master Switch Left Rear Up Signal (A31) | D | D-GN | 168 | Power Window Master Switch Left Rear Up Signal (A31) |
| E | PU | 169 | Power Window Master Switch Left Rear Down Signal (A31) | E | PU | 169 | Power Window Master Switch Left Rear Down Signal (A31) |
| F | L-GN | 170 | Power Window Master Switch Right Rear Up Signal (A31) | F | L-GN | 170 | Power Window Master Switch Right Rear Up Signal (A31) |
| G | PU | 171 | Power Window Master Switch Right Rear Down Signal (A31) | G | PU | 171 | Power Window Master Switch Right Rear Down Signal (A31) |
| H | BK | 650 | Ground | H | BK | 650 | Ground |
| J | OG | 1732 | Inadvertent Power Supply Voltage (DG7) | J | OG | 1732 | Inadvertent Power Supply Voltage (DG7) |
| K | D-BU | 1307 | Power Window Master Switch Lockout Signal (A31) | K | D-BU | 1307 | Power Window Master Switch Lockout Signal (A31) |
C507 (w/o AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 1857 | Left Front Speaker Output (-) | A | D-BU | 1857 | Left Front Speaker Output (-) |
| B | L-BU | 1957 | Left Front Speaker Output (+) | B | L-BU | 1957 | Left Front Speaker Output (+) |
C602 (AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 117 | Right Front Speaker Output (-) (U79/UX7) | A | D-GN | 117 | Right Front Speaker Output (-) (U79/UX7) |
| OR | 1853 | Right Front Speaker Output (-) (UZ6) | OR | 1853 | Right Front Speaker Output (-) (UZ6) | ||
| B | L-GN | 200 | Right Front Speaker Output (+) (U79/UX7) | B | L-GN | 200 | Right Front Speaker Output (+) (U79/UX7) |
| D-GN | 1953 | Right Front Speaker Output (+) (UZ6) | D-GN | 1953 | Right Front Midrange Speaker Output (+) (UZ6) | ||
| C | WH | 682 | Door Lock/Unlock Signal | C | WH | 682 | Door Lock/Unlock Signal |
| D | BK | 650 | Ground | D | BK | 650 | Ground |
| E | TN | 294 | Door Lock Actuator Unlock Control | E | TN | 294 | Door Lock Actuator Unlock Control |
| F | GY | 295 | Door Lock Actuator Lock Control | F | GY | 295 | Door Lock Actuator Lock Control |
| G | D-GN | 2134 | Side Impact Sensing Module - Right - Signal | G | D-GN | 2134 | Side Impact Sensing Module - Right - Signal |
| H | TN | 2133 | Side Impact Sensing Module - Right - Voltage | H | TN | 2133 | Side Impact Sensing Module - Right - Voltage |
C604 (A31)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | - | - | Not Used | A | - | - | Not Used |
| B | RD/WH | 881 | Passenger Mirror Motor Right Control | B | RD/WH | 881 | Passenger Mirror Motor Right Control |
| C | PU/WH | 889 | Passenger Mirror Motor Down Control | C | PU/WH | 889 | Passenger Mirror Motor Down Control |
| D | GY | 90 | Passenger Mirror Motor Left Control | D | GY | 90 | Passenger Mirror Motor Left Control |
| E | BN | 441 | Ignition 3 Voltage | E | BN | 441 | Ignition 3 Voltage |
| F | L-BU | 166 | Power Window Master Switch Right Front Up Signal | F | L-BU | 166 | Power Window Master Switch Right Front Up Signal |
| G | TN | 167 | Power Window Master Switch Right Front Down Signal | G | TN | 167 | Power Window Master Switch Right Front Down Signal |
| H | - | - | Not Used | H | - | - | Not Used |
C608 (w/o AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 117 | Right Front Speaker Output (-) | A | D-GN | 117 | Right Front Speaker Output (-) |
| B | L-GN | 200 | Right Front Speaker Output (+) | B | L-GN | 200 | Right Front Speaker Output (+) |
C759 (Sedan w/AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
C860 (Sedan w/AU3)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | GY | 295 | Door Lock Actuator Lock Control | A | GY | 295 | Door Lock Actuator Lock Control |
| B | TN | 294 | Door Lock Actuator Unlock Control | B | TN | 294 | Door Lock Actuator Unlock Control |
