Instrument Panel Dimmer Switch Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

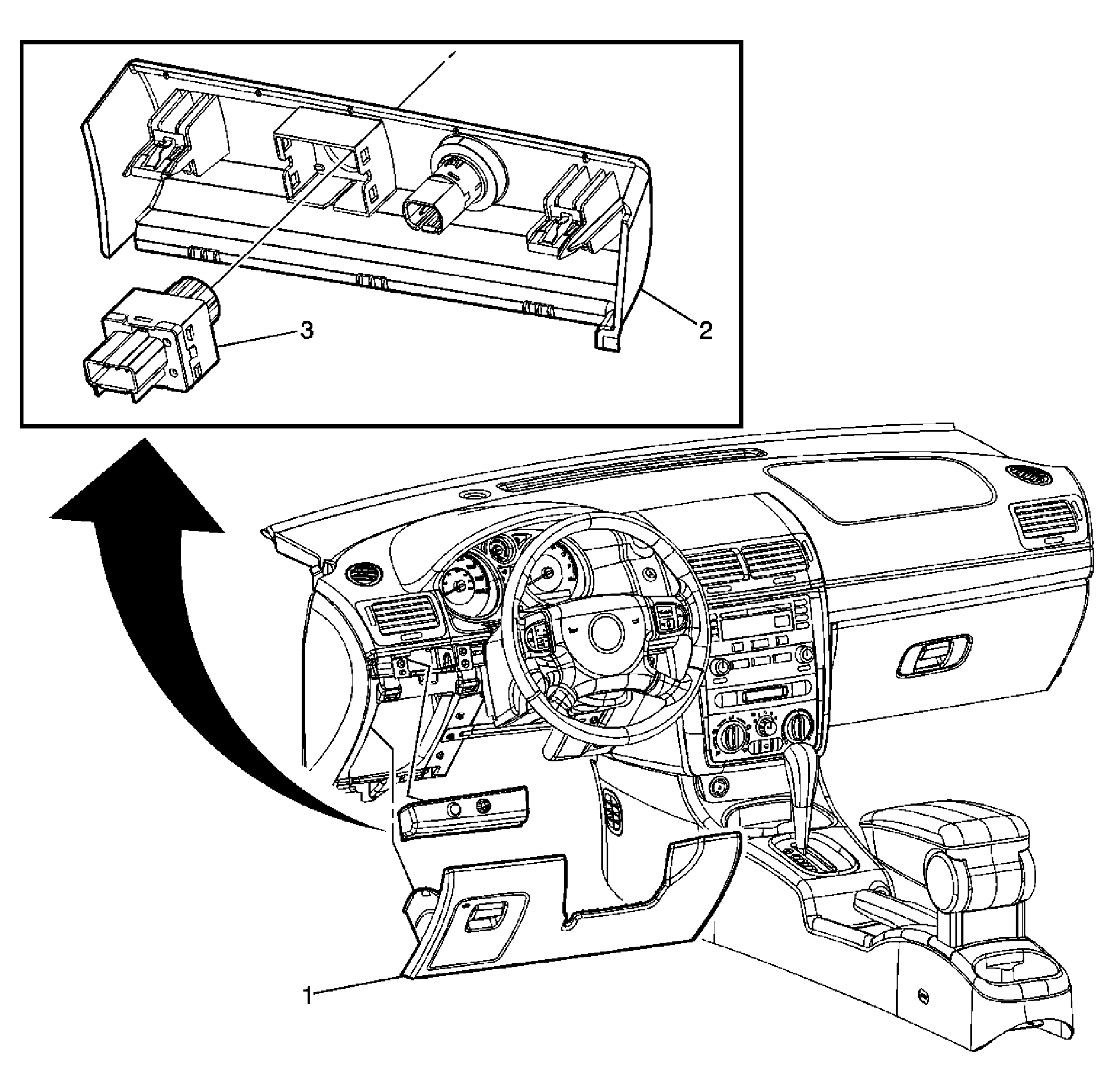

Fig 1: Instrument Panel (I/P) Dimmer Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Filler, Instrument Panel Steering Column Opening Refer to Steering Column Opening Filler Replacement .
2	Plate, Instrument Panel Trim
3	Switch, Instrument Panel Lamp Dimmer Tip: Disconnect the electrical connector.
