Removal Procedure
WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the SIR system. Refer to SIR Disabling and Enabling Zone 2 (Coupe) or SIR Disabling and Enabling Zone 2 (Sedan) or to SIR Disabling and Enabling Zone 6 (Coupe) or SIR Disabling and Enabling Zone 6 (Sedan) .
- Move the seat to the full forward position.
- Remove the lower trim panel from the center pillar. Refer to Garnish Molding Replacement - Center Pillar Lower in Interior Trim.
- Remove the connector position assurance (CPA) from the harness connector on the inflatable restraint side impact sensor (SIS).
- Disconnect the harness connector from the SIS.
- Loosen the SIS mounting fasteners.

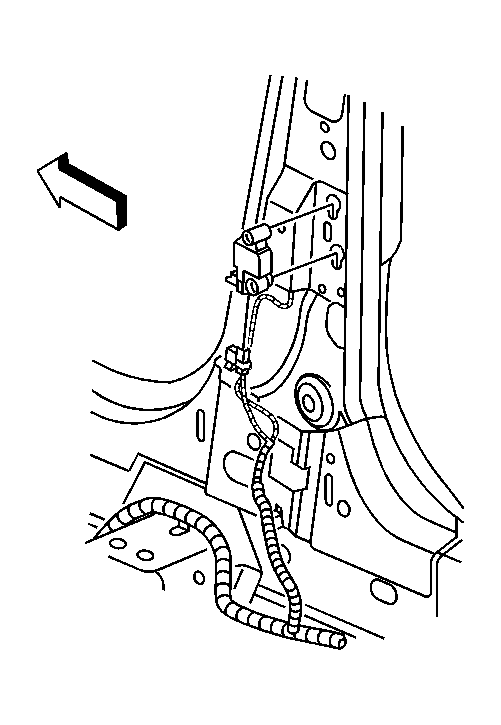

- Remove the SIS from the center pillar by sliding the SIS up and out of the keyholes in the sheet metal.
CAUTION:
When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling Zones. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.
CAUTION:
Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs.
