Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the speaker.
Install the speaker to the front door.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws to the speaker.
Tighten: Tighten the screws to 1.2 N.m (9 lb in).

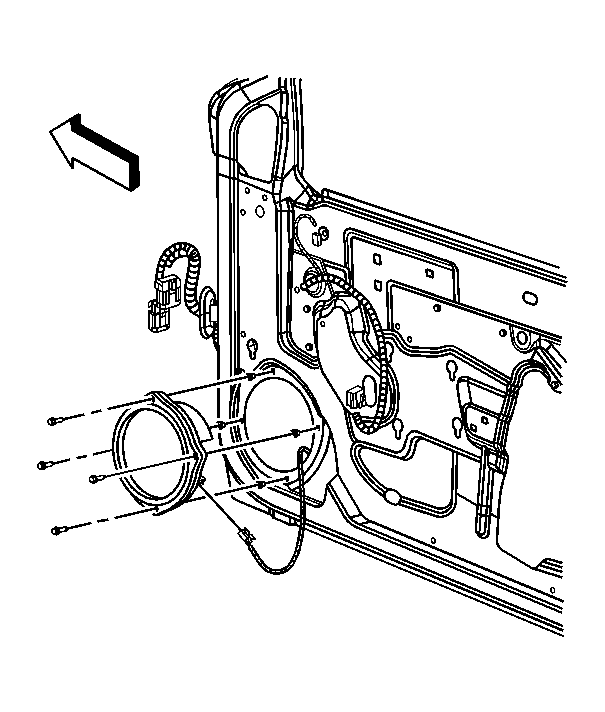

Fig 1: View Of Front Door Speaker

Courtesy of GENERAL MOTORS CORP.

Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.
