Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

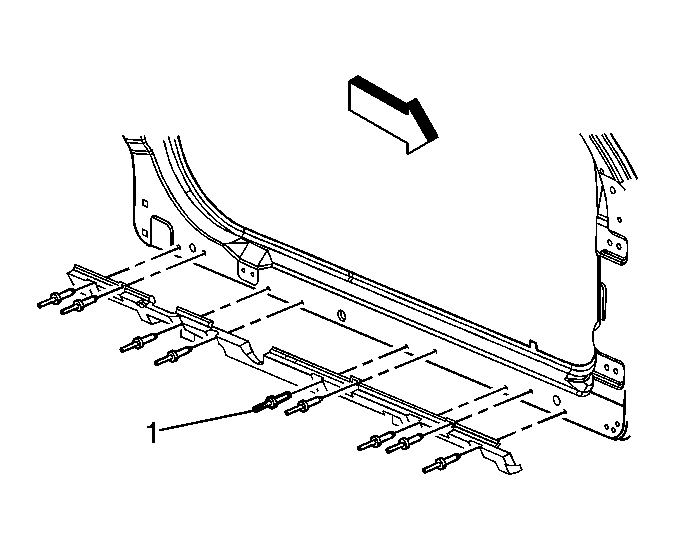

    Fig 1: Identifying Locating Rivet
    GM900001Courtesy of GENERAL MOTORS CORP.
  1. Install the locating rivet (1) to ensure proper fore/aft location.
  2. Install the remaining rivets.
  3. Install the rocker panel molding. Refer to Rocker Panel Molding Replacement .
