Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

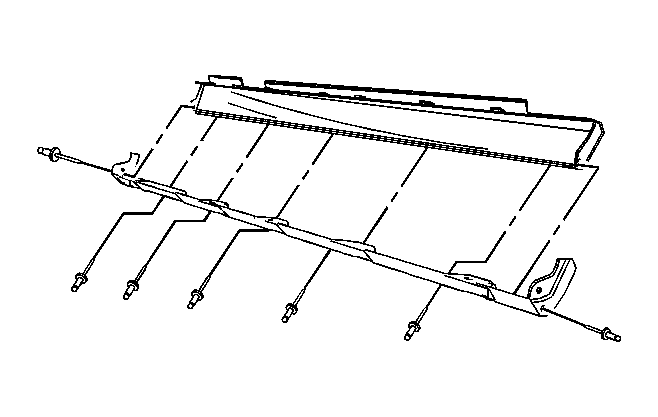

    Fig 1: View Of Rocker Panel Molding Rivets
    GM1283855Courtesy of GENERAL MOTORS CORP.
  1. For the Turner coupe only, install the rivets between the rocker panel molding and the extension panel.

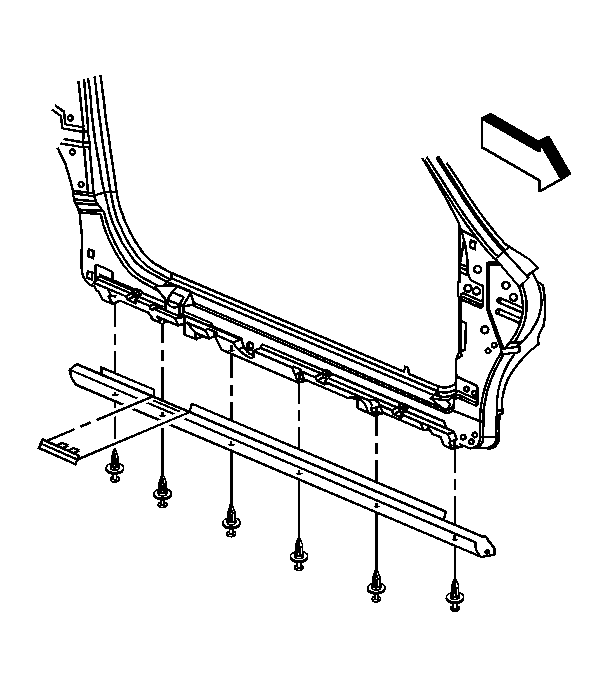

    2. Fig 2: View Of Rocker Panel Molding
    GM863974Courtesy of GENERAL MOTORS CORP.
  2. Position the rocker panel molding to the vehicle.
  3. Slide the rocker panel molding rearward to lock the molding into place.
  4. Install the rocker panel plastic fasteners in the front and rear wheelhouse liners to the rocker panel molding.
  5. Install the plastic retaining fasteners along the bottom of the rocker panel molding.
  6. For the coupe only, install the rear door lower striker cover. Push on both ends of the cover until the cover locks into place.
