Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

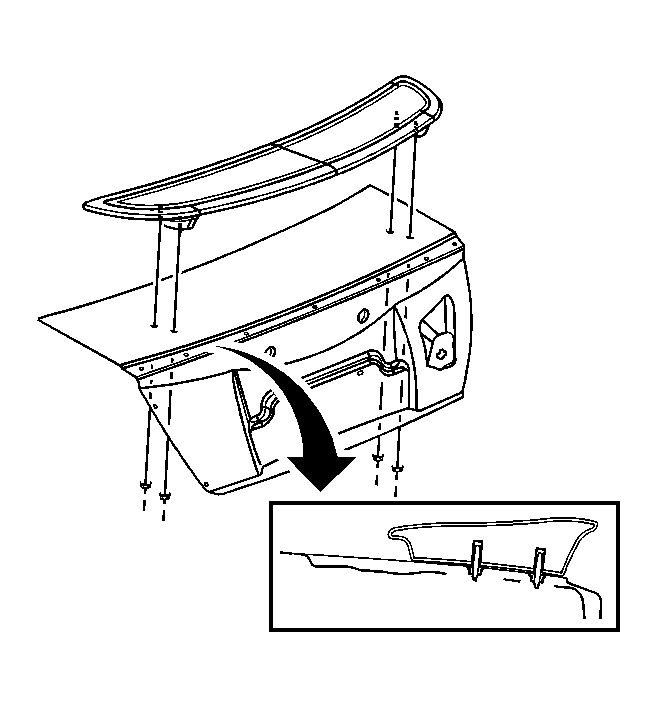

    Fig 1: View Of Spoiler
    GM872373Courtesy of GENERAL MOTORS CORP.
  1. Use J 25070  to heat the rear spoiler mounting surfaces.
  2. Remove the backing from the adhesive on the spoiler mounting locations.
  3. Position the studs of the spoiler into the clearance holes of the rear compartment lid.
    4. IMPORTANT: Do not touch the adhesive backing.
  4. Apply even pressure to the spoiler to allow for proper adhesion to the rear compartment lid.
    5. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the nuts to the rear compartment lid spoiler.

    Tighten:  Tighten the nuts to 5 N.m (44 lb in).

  6. Close the rear compartment.
