Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.
  1. If this is a first-time installation, complete the following steps:
    1. Install a drill stop on a 5-mm (13/64-in) drill bit in order to ensure that the bit does not penetrate the front fascia more than 13 mm (0.5 in).
    2. Using a license plate bracket as a template, drill 2 5-mm (13/64-in) middle mounting holes through the front fascia.
    3. Install the rivets in the 2 middle mounting holes of the license plate bracket.
    4. Using a license plate bracket as a template, drill 1 5-mm (13/64-in) upper mounting hole through the front fascia.

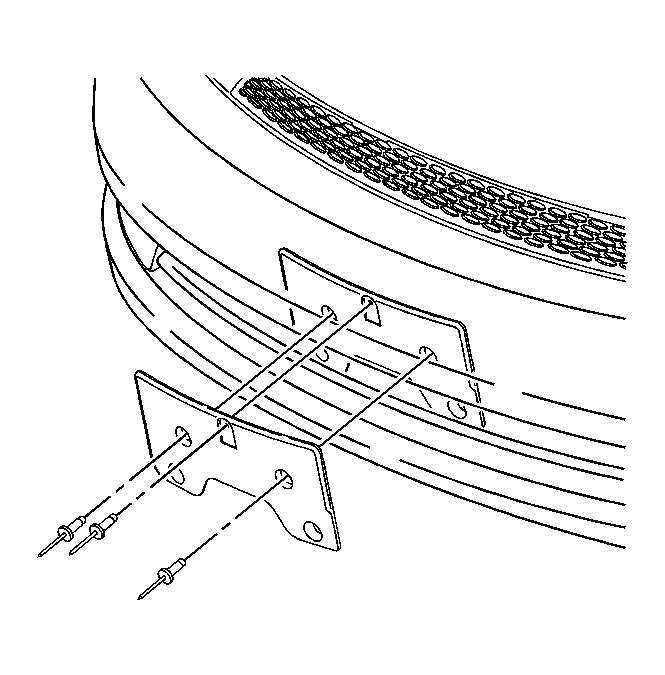

    2. Fig 1: View Of License Plate Bracket
    GM863806Courtesy of GENERAL MOTORS CORP.
  2. Install the rivets in the upper mounting hole of the license plate bracket.
  3. Position the license plate to the bracket. Install the license plate retaining screws.
