Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

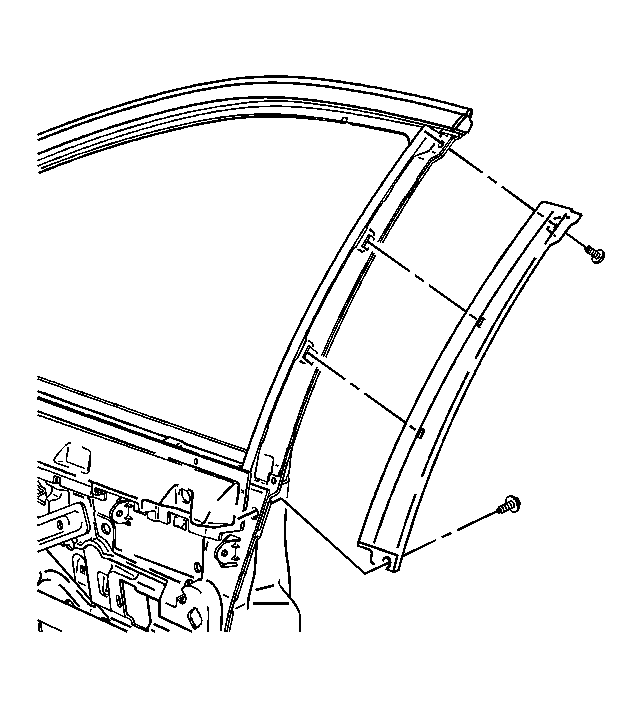

    Fig 1: View Of Front Door Frame Applique
    GM866039Courtesy of GENERAL MOTORS CORP.
  1. Position the applique to the door frame.
  2. Press and seat the applique into the door frame.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws into the door applique.

    Tighten:  Tighten the door applique screws to 2 N.m (18 lb in).
