Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

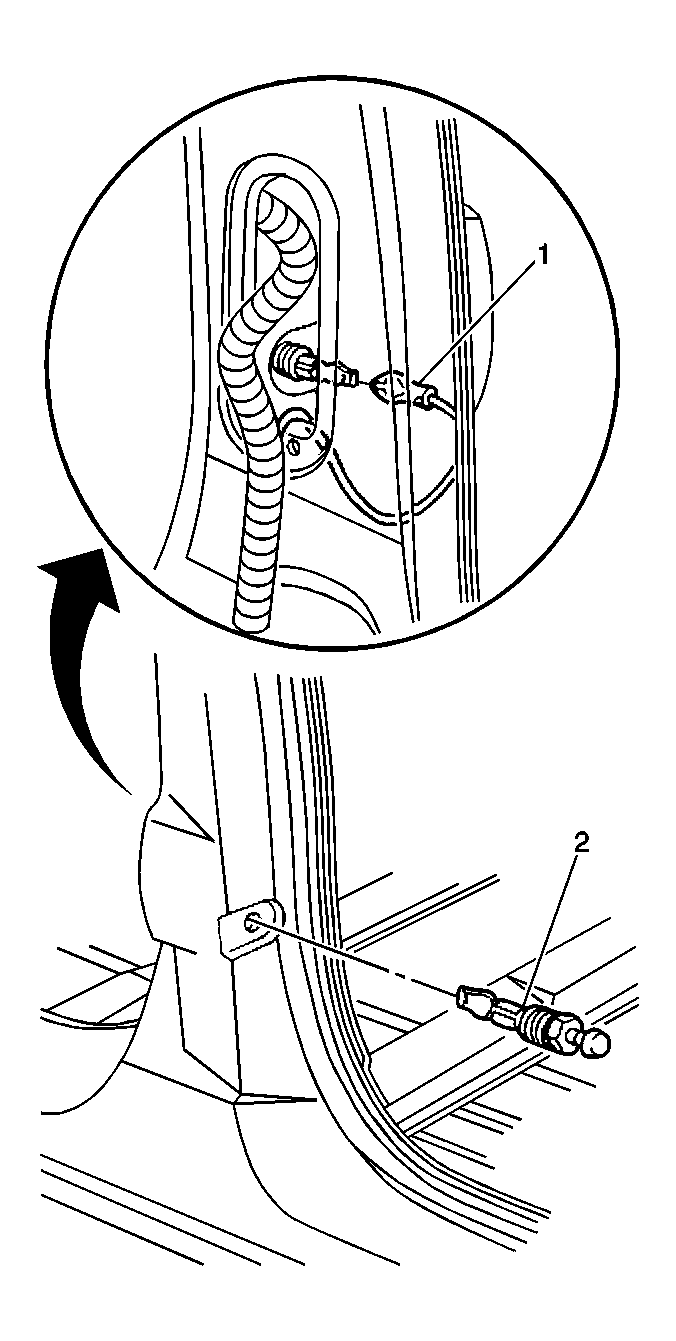

    Fig 1: View Of Door Jam Switch & Electrical Connector
    GM384957Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1) to the door jamb switch.
  2. Press inward on the door jamb switch (2) until fully seated in the hinge pillar.
  3. Install the lower garnish molding to the center pillar. Refer to Garnish Molding Replacement - Center Pillar Lower .
  4. Close the rear door.
