Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

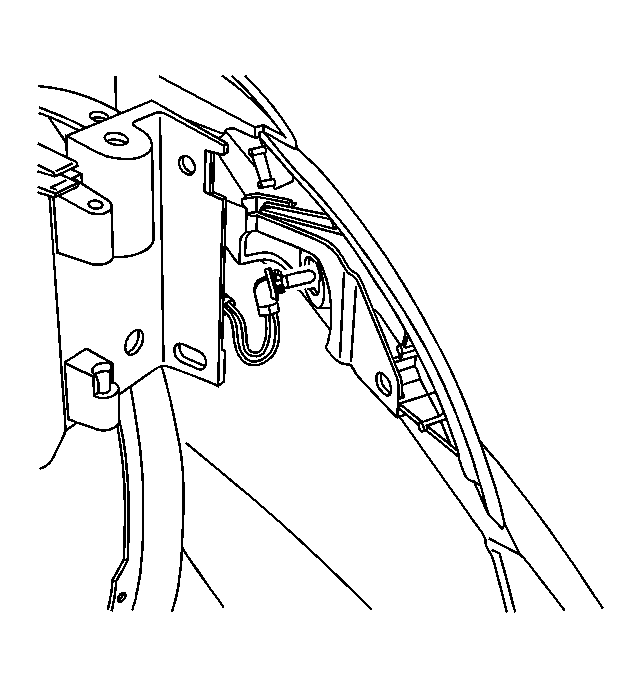

    Fig 1: View Of Front Side Mark Bulb
    GM876360Courtesy of GENERAL MOTORS CORP.
  1. Insert the bulb into the socket.
  2. Install the side marker bulb/socket into the lamp housing by rotating the socket clockwise.
  3. Install the headlamp assembly. Refer to Headlamp Replacement .
  4. Close the hood.
