Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

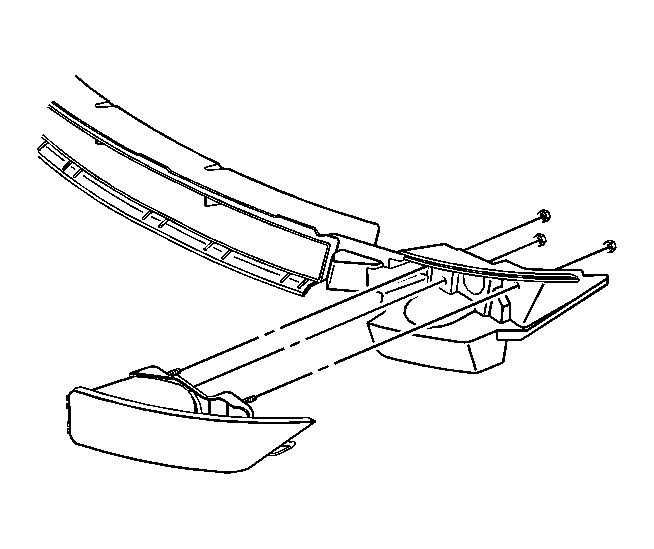

    Fig 1: View Of Fog Lamp Assembly (Coupe)
    GM870800Courtesy of GENERAL MOTORS CORP.
  1. Install the fog lamp assembly to the lower front grille.
    2. NOTE: Refer to Fastener Notice .
  2. Install the front fog lamp mounting nuts.

    Tighten:  Tighten the nuts to 2.5 N.m (22 lb in).

    3. Fig 2: View Of Fog Lamp Bulb
    GM870468Courtesy of GENERAL MOTORS CORP.
  3. Install the lower grille into the fascia. Refer to Front Bumper Fascia Grille Replacement - Lower .
  4. Install the fog lamp bulb into the lamp housing.
  5. Twist the bulb about 1/4 turn clockwise to lock the bulb into the housing.
    6. Fig 3: View Of Front Fog Lamp Assembly Electrical Connector
    GM870465Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connector to the fog lamp assembly.
  7. Lower the vehicle.
