DTC P2228: Notes

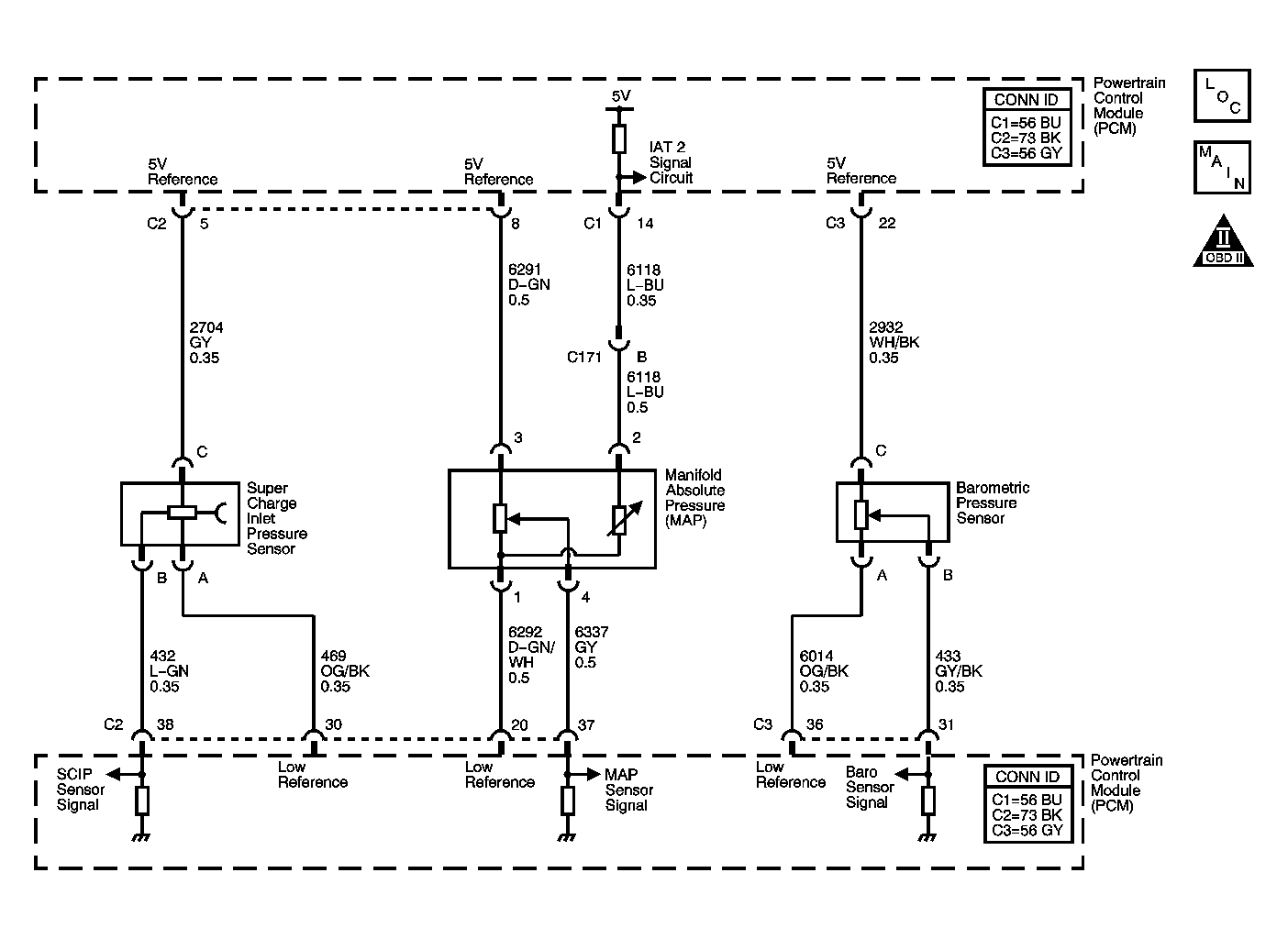

Fig 1: BARO Sensor, MAP Sensor, & SCIP Sensor Circuit

GM1403221

Courtesy of GENERAL MOTORS CORP.
