Installation Procedure

  1. Place the engine mount onto the midrail and hand start the nuts.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the engine mount to midrail nuts.

    Tighten:  Tighten the nuts to 100 N.m (74 lb ft).

    3. Fig 1: View Of Engine Mount
    GM851555Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The engine mount to intermediate bracket bolts must be hand started. Do not pry the engine mount to align the holes.
  3. Hand start the engine mount to intermediate bracket bolts.
  4. Tighten the engine mount to intermediate bracket bolts, starting with the center bolt.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

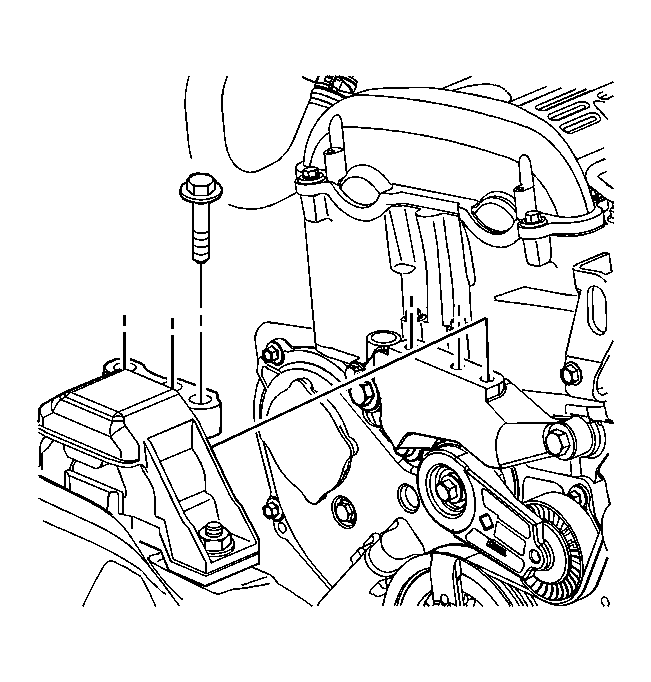

    5. Fig 2: View Of Engine Mount To Intermediate Bracket Bolts
    GM851553Courtesy of GENERAL MOTORS CORP.
  5. Remove the hydraulic floor jack.
