Intake Manifold Installation

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the intake manifold studs in the manifold face.

    Tighten:  Tighten the intake manifold studs to 5 N.m (44 lb in).

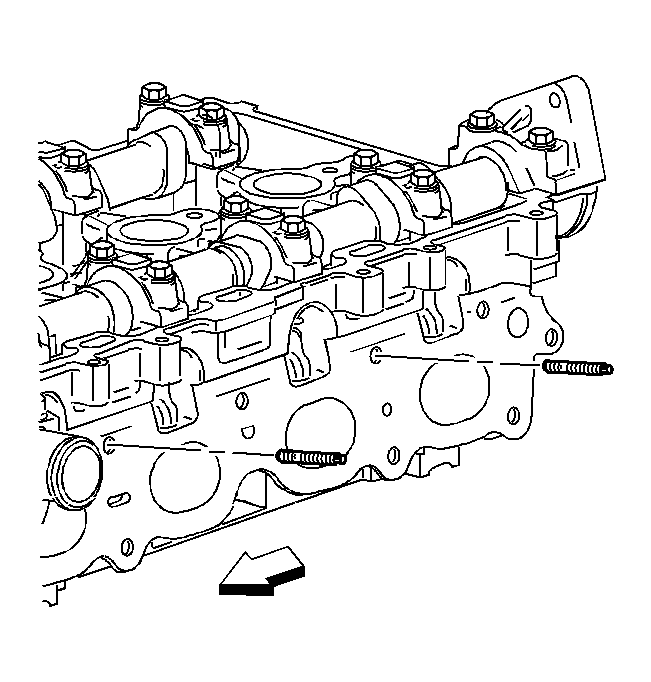

    2. Fig 1: View Of Intake Manifold Studs
    GM412542Courtesy of GENERAL MOTORS CORP.
  2. Install a new intake manifold gasket on the intake manifold.
  3. Install the intake manifold.
  4. Install the intake manifold bolts and nuts. Follow the tightening sequence.

    Tighten:  Tighten the bolts and nuts to 22 N.m (16 lb ft).

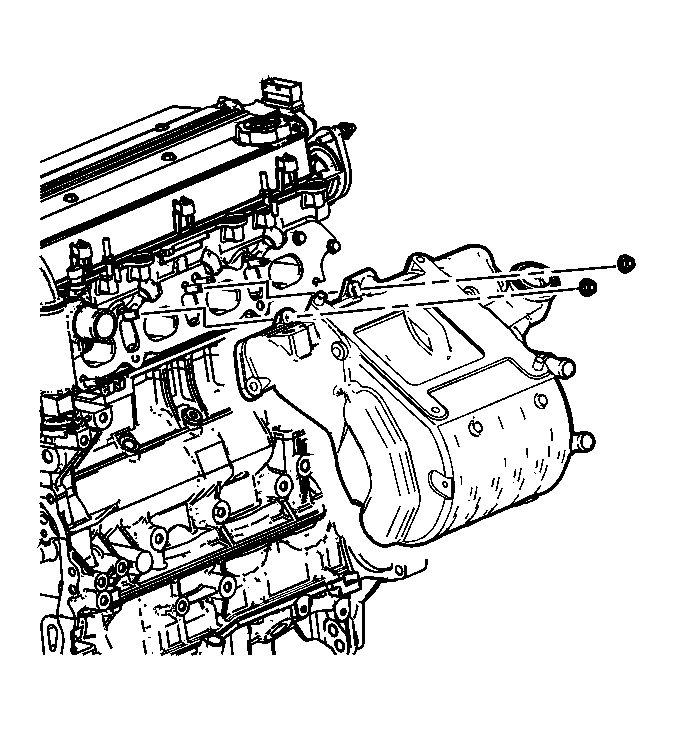

    5. Fig 2: View Of Intake Manifold
    GM1339178Courtesy of GENERAL MOTORS CORP.
