Engine Flywheel Installation

Tools Required

• J 45059  (SA9140E) Angle Meter. See Special Tools .
• J 38122-A Crankshaft Balancer Holder

1. Install the flywheel.

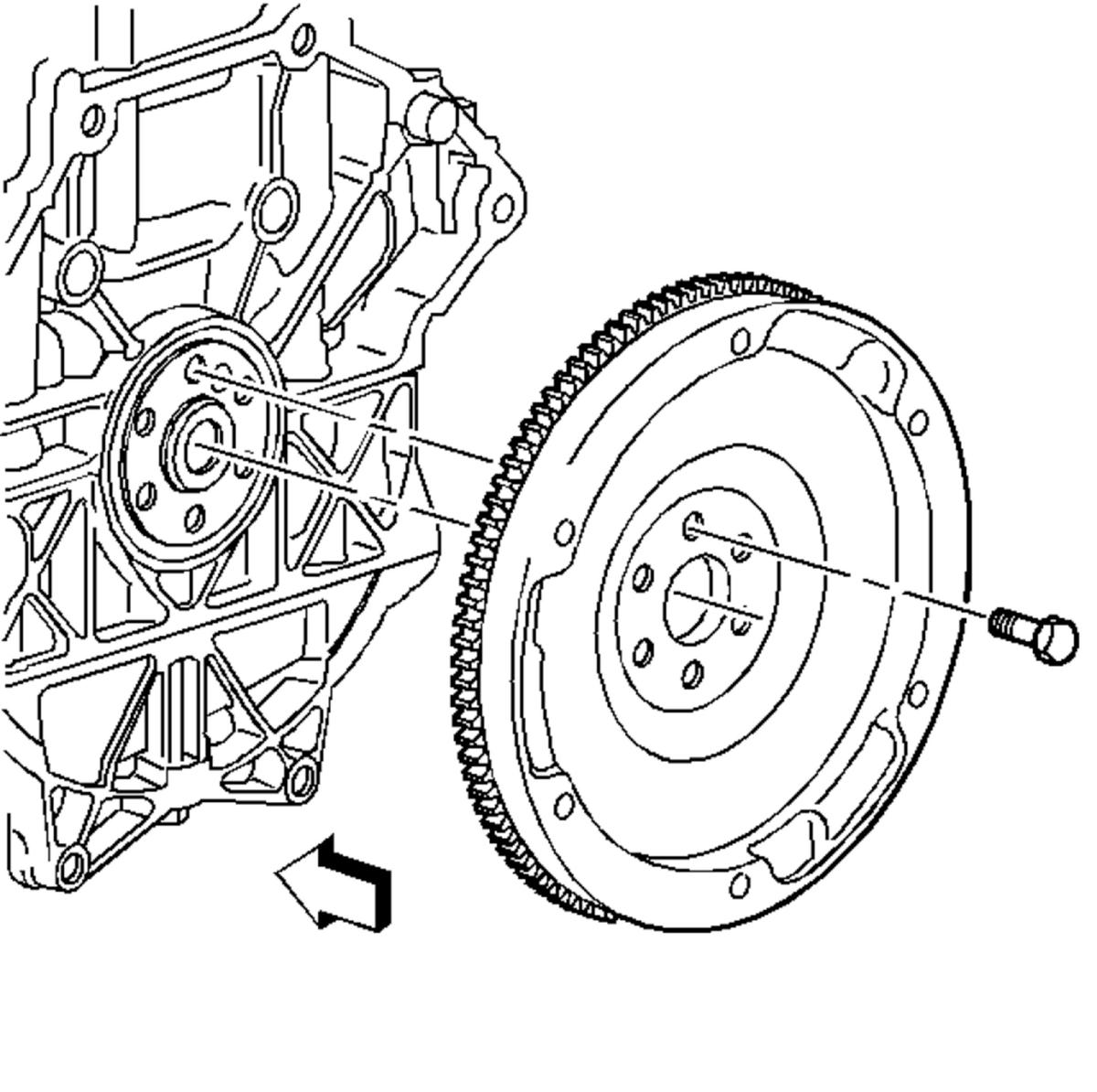

Fig 1: Identifying Flywheel & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
2. Install the new bolts.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Holding the crankshaft damper with the J 38122-A , tighten the bolts evenly.

   Tighten:  Using the J 45059  (SA9140E), tighten the bolts to 53 N. See Special Tools .m (39 lb ft), plus 25 degrees.
