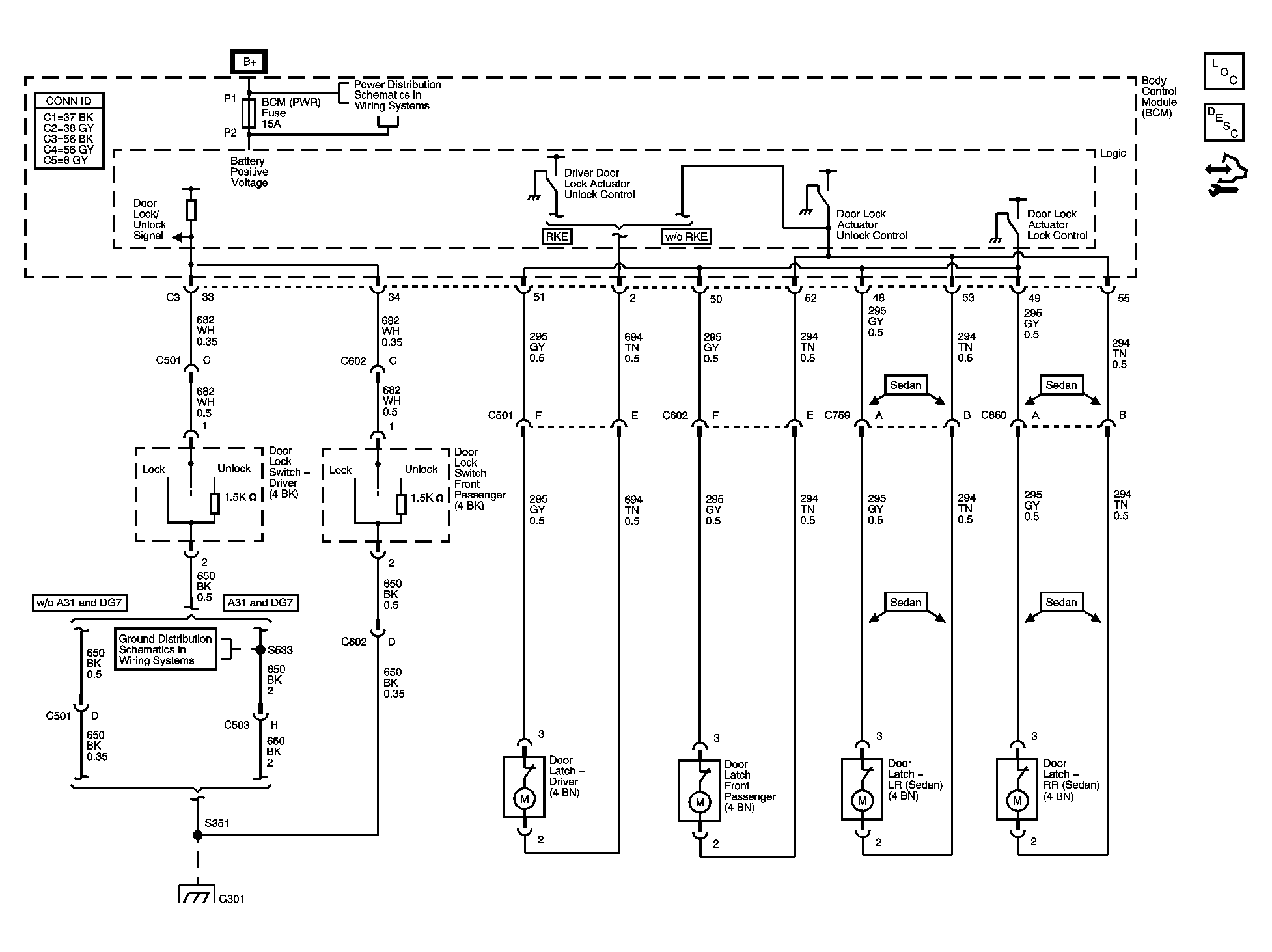

Home >> Saturn >> 2005 >> Ion Red Line >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Door Lock/Indicator Schematics
