Removal Procedure

    IMPORTANT: Vehicle must be in PARK prior to ignition cylinder removal.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  2. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  3. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
    4. Fig 1: Key & Ignition Lock Cylinder
    GM874786Courtesy of GENERAL MOTORS CORP.
  4. Insert key into the ignition and rotate to the RUN position. Then rotate ignition cylinder back to ACC position.

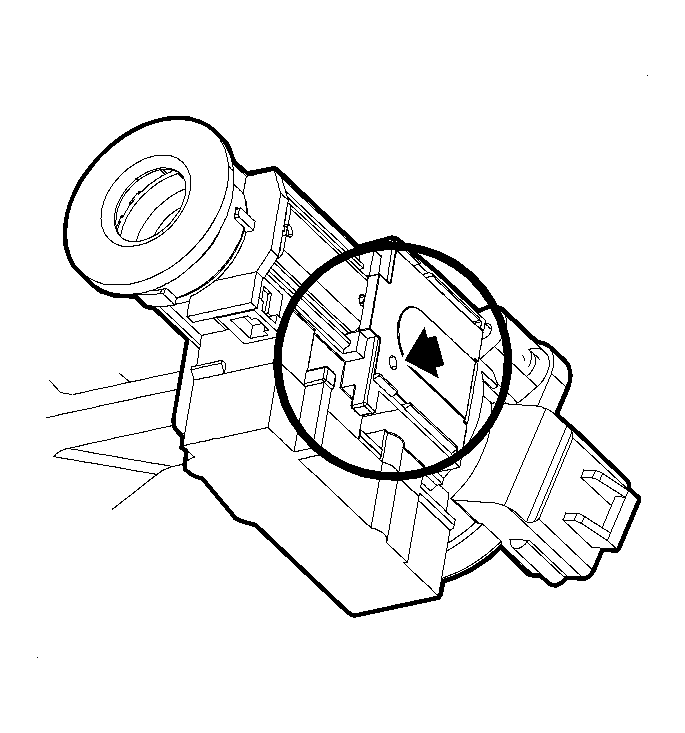

    5. Fig 2: Locking Button On Side Of Ignition Module Assembly
    GM943579Courtesy of GENERAL MOTORS CORP.
  5. Depress the locking button through hole on side of ignition module assembly with a thin pick-type tool. Slide the lock cylinder from the ignition housing.
