Closeout/Insulator Panel Replacement - Left

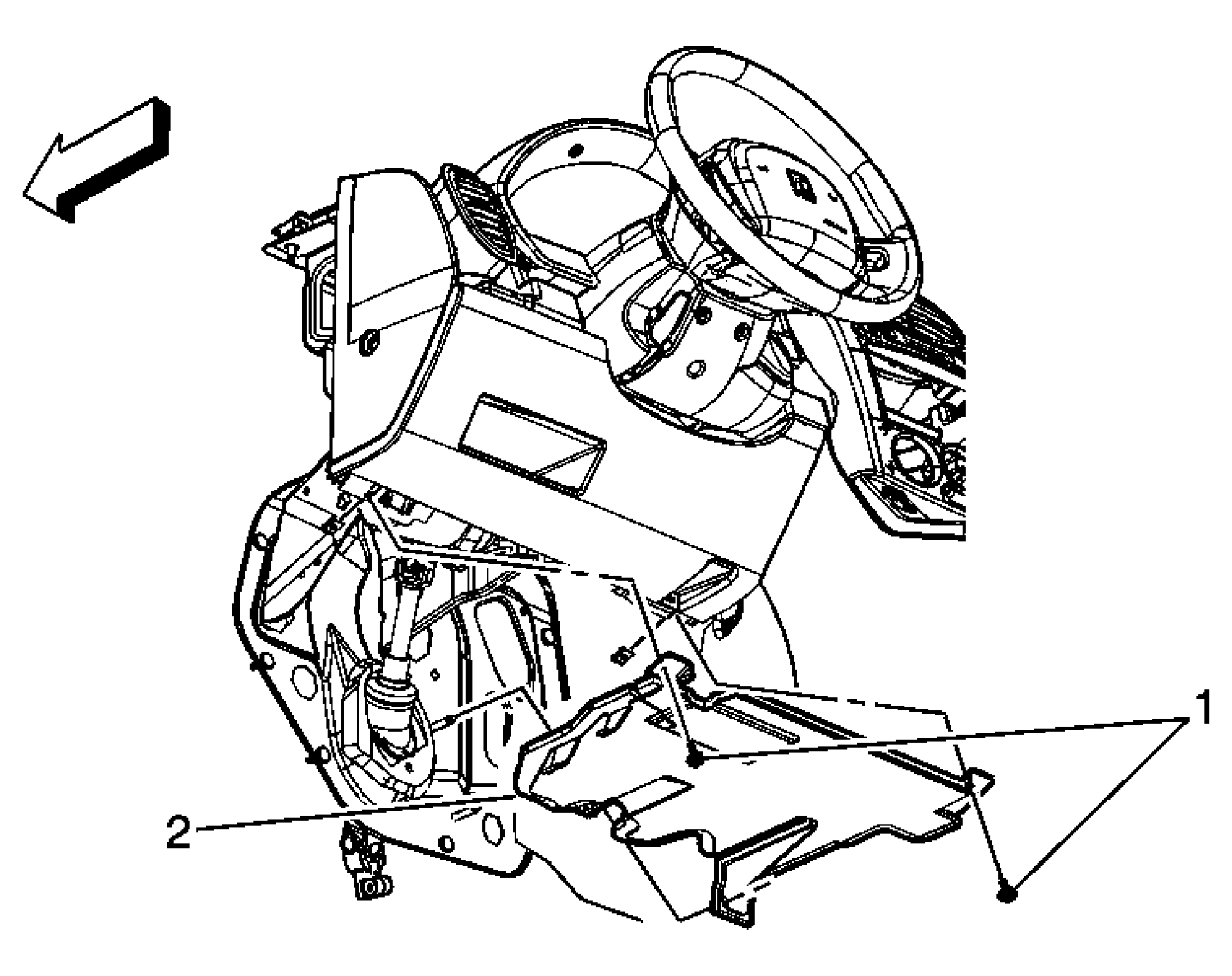

Fig 1: View of Left Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

Closeout/Insulator Panel Replacement - Left

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Bolt, instrument panel insulator panel
3	Panel assembly, instrument panel insulator (Qty 2) Tighten:  2 N.m (18 lb in)
