Home >> Saturn >> 2004 >> Vue Red Line, FWD >> Repair and Diagnosis >> Electrical >> Instrument Panel System Displays, Gauges And Console >> Diagnostic Information and Procedures >> DTC P0461 >> Notes

DTC P0461: Notes

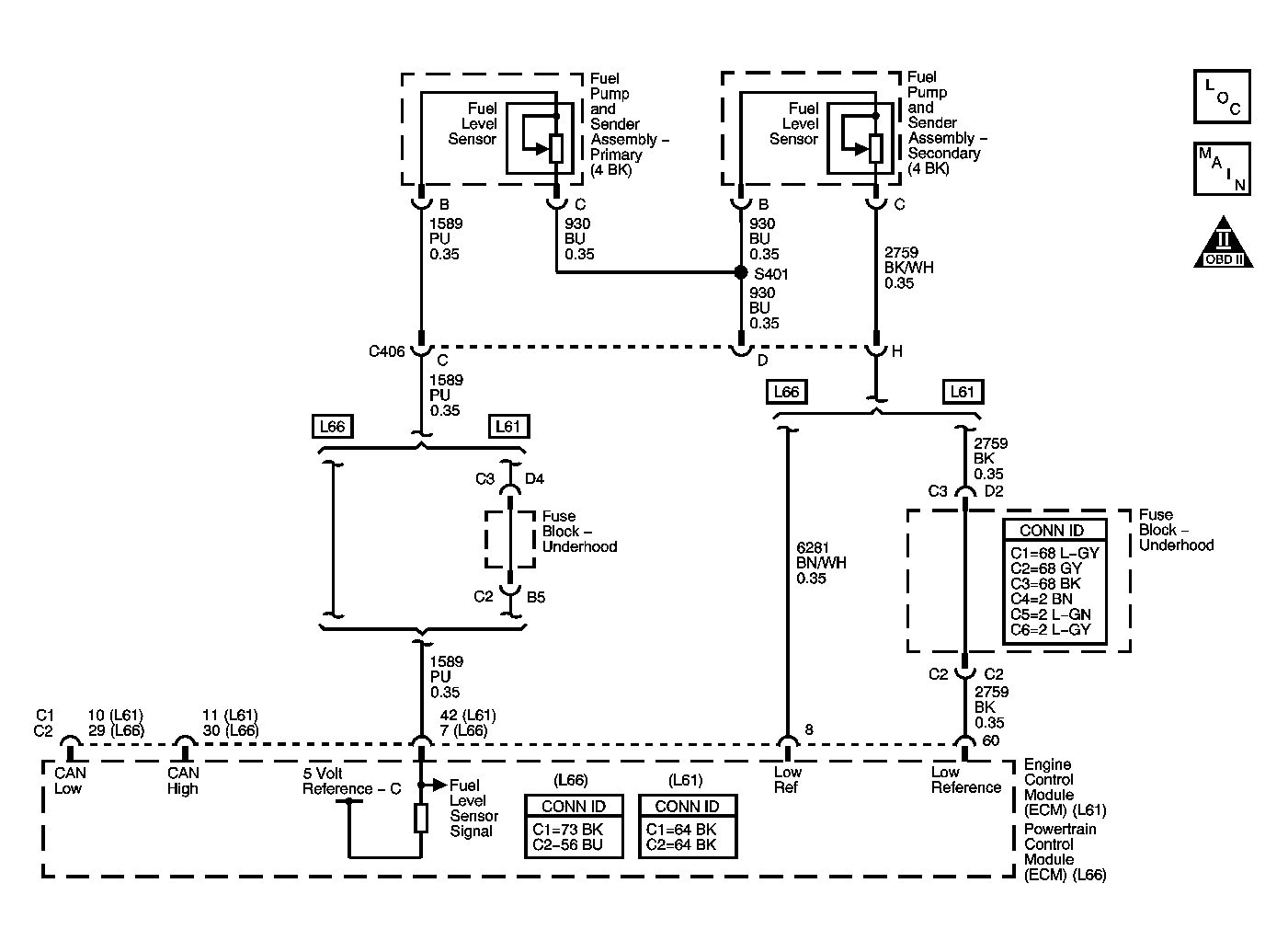

Fig 1: DTC P0461 Circuit

GM1398270

Courtesy of GENERAL MOTORS CORP.
