Indicator/Warning Message Description and Operation: Notes

Indicator/Warning Message Description and Operation

Symbol	Description
Courtesy of GENERAL MOTORS CORP.	ABS: Refer to ABS Description and Operation in Anti-Lock Brake System
Courtesy of GENERAL MOTORS CORP.	Air Bag: Refer to SIR System Description and Operation in SIR
Courtesy of GENERAL MOTORS CORP.	Brake: Refer to Brake Warning System Description and Operation in Hydraulic Brakes
Courtesy of GENERAL MOTORS CORP.	Change Engine Oil: Refer to Indicator/Warning Message Description and Operation
Courtesy of GENERAL MOTORS CORP.	Charge: Refer to Charging System Description and Operation in Engine Electrical
Courtesy of GENERAL MOTORS CORP.	DRL: Refer to Exterior Lighting Systems Description and Operation in Lighting Systems
Courtesy of GENERAL MOTORS CORP.	Engine Coolant Temperature: Refer to Cooling System Description and Operation in Engine Cooling
Courtesy of GENERAL MOTORS CORP.	Fasten Seat Belt: Refer to Seat Belt System Description and Operation in Seat Belts
Courtesy of GENERAL MOTORS CORP.	High Beam: Refer to Exterior Lighting Systems Description and Operation in Lighting Systems

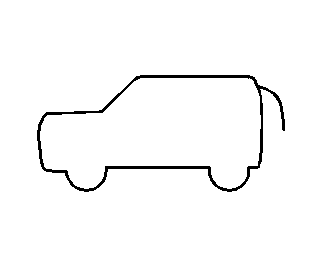

Courtesy of GENERAL MOTORS CORP.	Liftgate Ajar: Refer to Liftgate Ajar Indicator Description and Operation in Body Rear End
Courtesy of GENERAL MOTORS CORP.	Low Coolant: Refer to Cooling System Description and Operation in Engine Cooling
Courtesy of GENERAL MOTORS CORP.	Low Fuel: Refer to Indicator/Warning Message Description and Operation
Courtesy of GENERAL MOTORS CORP.	Low Oil Pressure: Refer to Indicator/Warning Message Description and Operation
Courtesy of GENERAL MOTORS CORP.	Low Traction: Refer to ABS Description and Operation in Anti-Lock Brake System
Courtesy of GENERAL MOTORS CORP.	MIL: Refer to Engine Control Module (ECM) Description in Engine Controls - 2.2L or to Powertrain Control Module (PCM) Description in Engine Controls - 3.5L
Courtesy of GENERAL MOTORS CORP.	Reduced Engine Power: Refer to Indicator/Warning Message Description and Operation
Courtesy of GENERAL MOTORS CORP.	Security: Refer to Theft Systems Description and Operation in Theft Deterrent
Courtesy of GENERAL MOTORS CORP.	Service Vehicle Soon: Refer to Indicator/Warning Message Description and Operation
Courtesy of GENERAL MOTORS CORP.	Traction Off: Refer to ABS Description and Operation in Anti-Lock Brakes
Courtesy of GENERAL MOTORS CORP.	Turn Signals: Refer to Exterior Lighting Systems Description and Operation in Lighting Systems
Courtesy of GENERAL MOTORS CORP.	Upshift Indicator: Refer to Indicator/Warning Message Description and Operation
