Removal Procedure

  1. Remove the battery. Refer to Battery Replacement .
  2. Remove the 3 UHJB nuts and lift the UHJB from the battery tray.
  3. Remove the left headlight. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement in Lighting Systems.

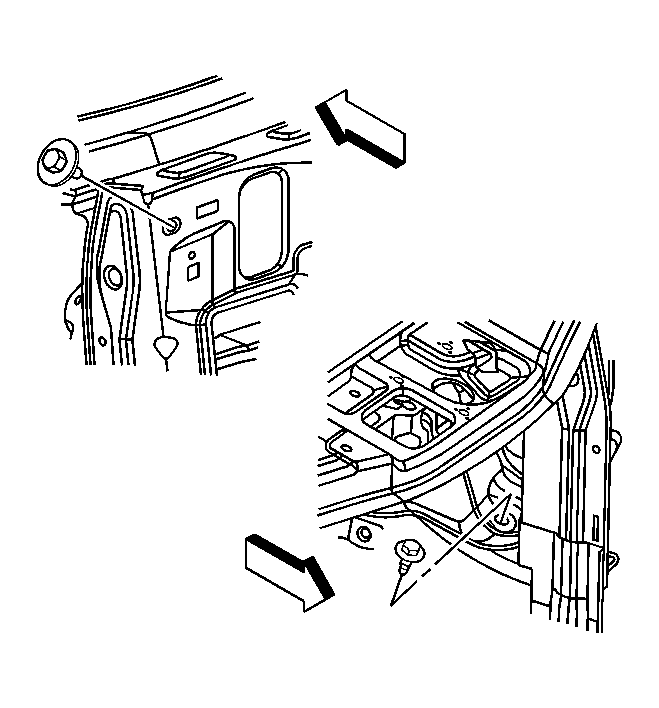

    4. Fig 1: View Of Battery Tray (L66)
    GM1227194Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray bolt behind the headlight.

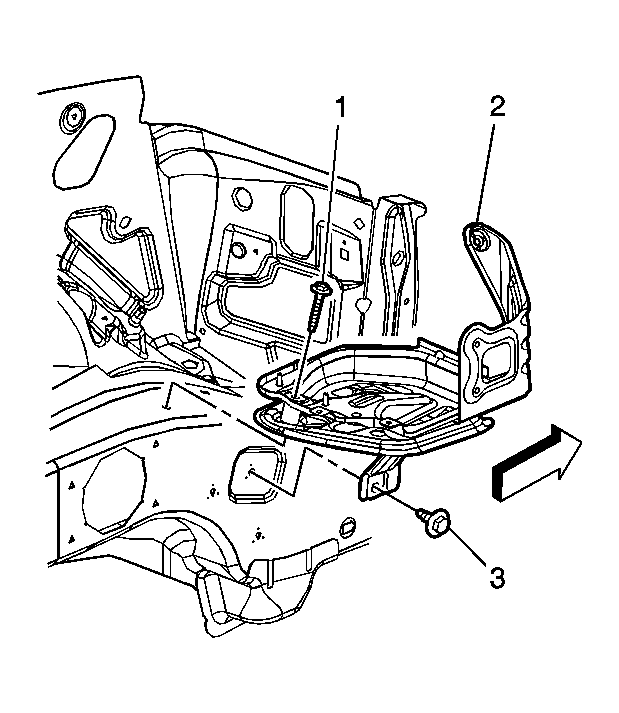

    5. Fig 2: View Of Battery Tray Bolt On The Top Of The Side Rail
    GM1227192Courtesy of GENERAL MOTORS CORP.
  5. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  6. Remove the lower battery tray bolt (3).
  7. Lower the vehicle.
  8. Remove the battery tray bolt on top of the side rail (1).
  9. Remove the battery tray.
