Wiper/Washer System Schematics

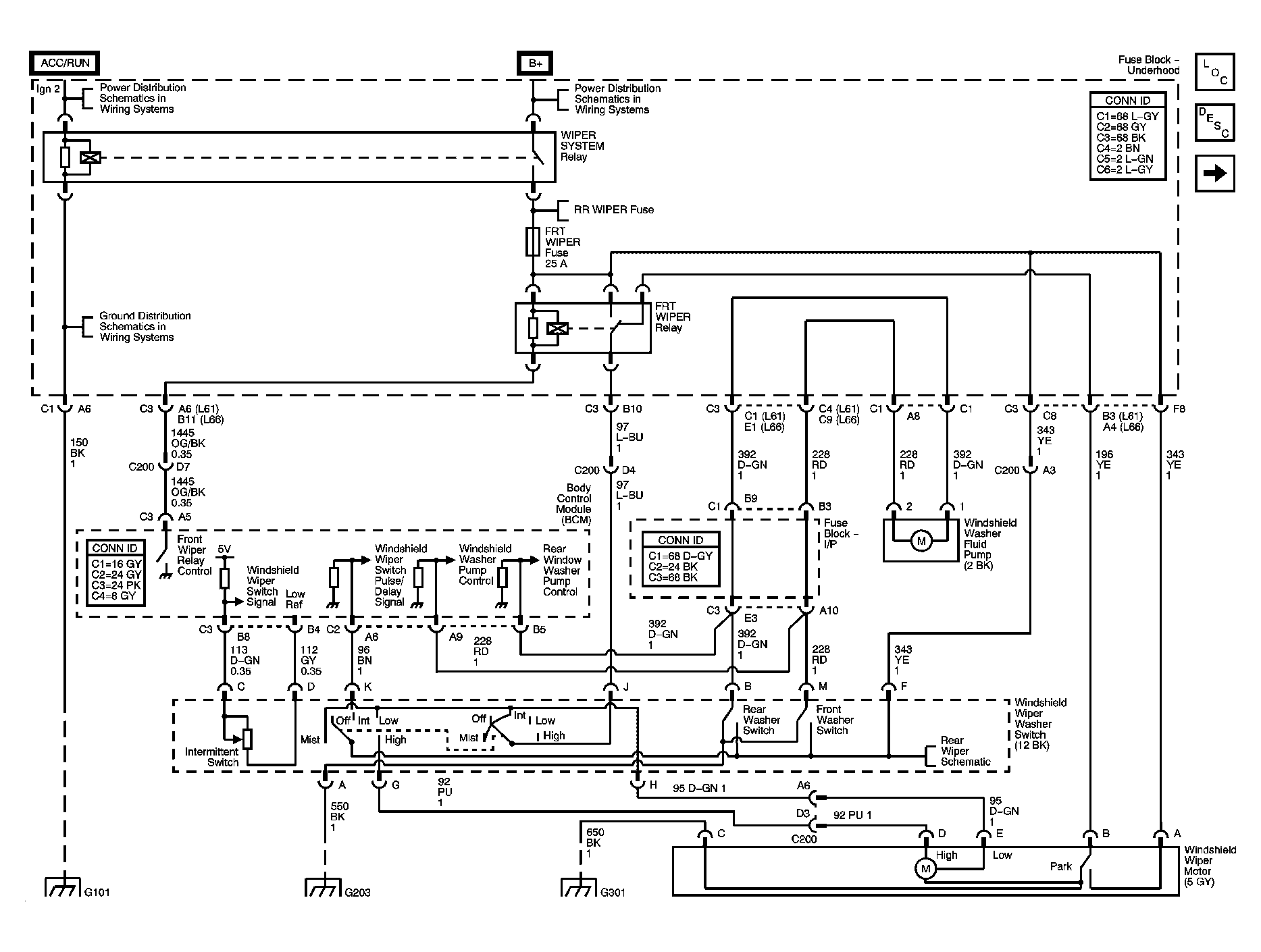

Fig 1: View Of Wiper/Washer Schematics

GM1333164

Courtesy of GENERAL MOTORS CORP.

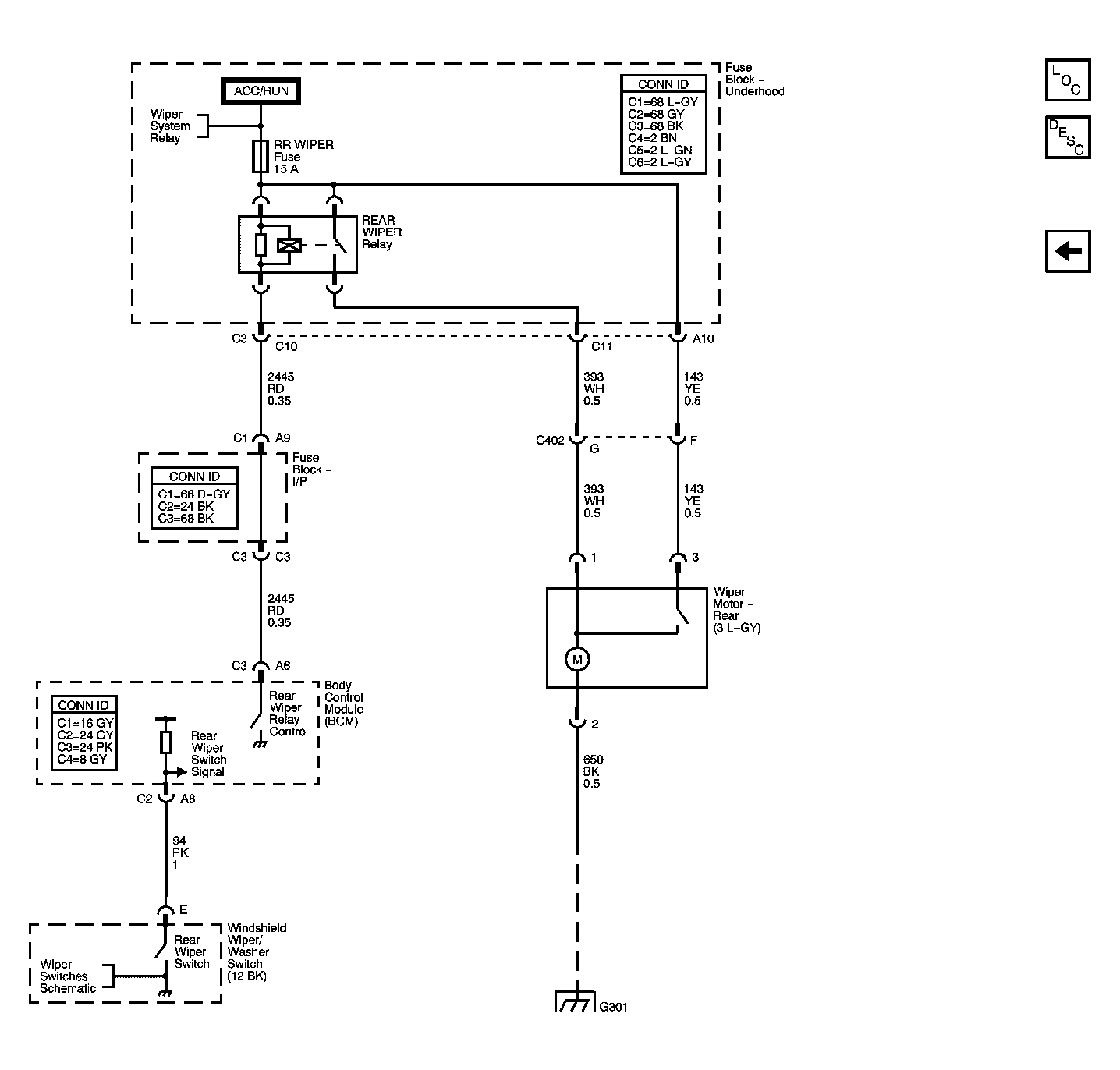

Fig 2: View Of Rear Wiper Motor and Switch

GM1333166

Courtesy of GENERAL MOTORS CORP.
