Installation Procedure

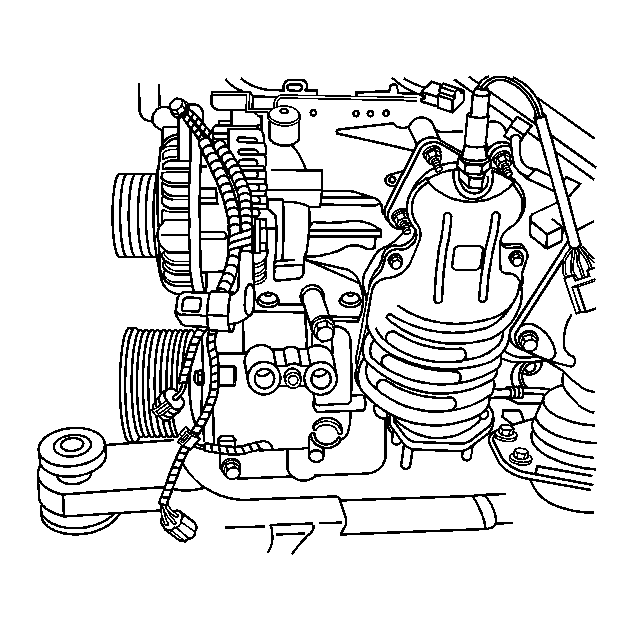

    Fig 1: View Of Generator & Install The Top Bolts
    GM1237805Courtesy of GENERAL MOTORS CORP.
  1. Position the generator and install the top bolts finger tight.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bottom bolts and tighten all the generator bolts.

    Tighten:  Tighten the generator-to-engine block bolts to 44 N.m (33 lb ft).

  3. Connect the electrical connections.

    Tighten:  Tighten the B+ cable-to-generator nut to 12 N.m (106 lb in).

  4. Lower the engine and tighten the engine mount through bolt.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

  5. Remove the engine support fixture.
  6. Install the accessory drive belt tensioner. Refer to Drive Belt Tensioner Replacement in Engine Mechanical - 3.5L (L66).
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 3.5L (L66).
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

    Tighten:  Tighten the battery terminal bolt to 17 N.m (13 lb ft).

  9. Reprogram the radio stations.
