Removal Procedure

    IMPORTANT: Record all pre-set radio stations.
  1. Turn the ignition OFF.
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  3. Remove the throttle body air duct.

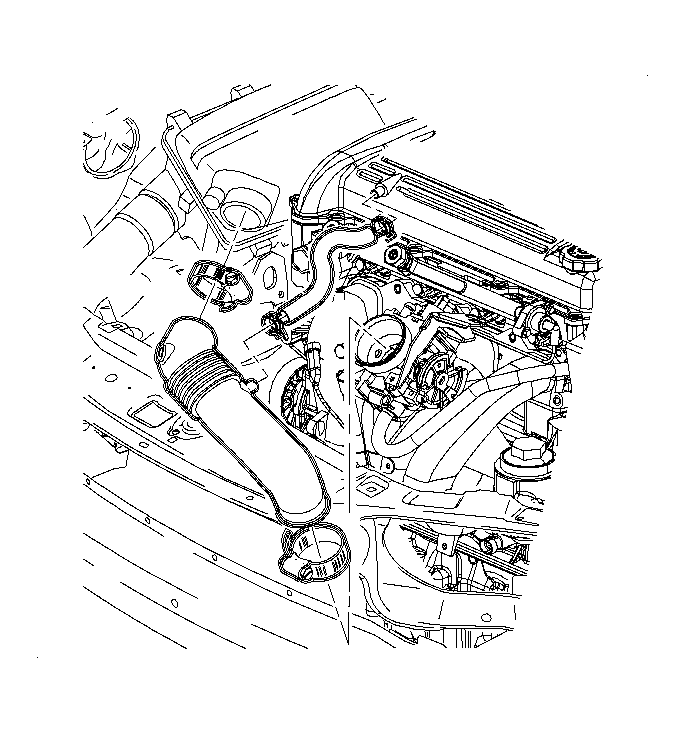

    4. Fig 1: View Of Generator (L61)
    GM897265Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use the required J 44811  .
  4. Remove the accessory drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 2.2L (L61).
  5. Disconnect the generator electrical connections.
    6. Fig 2: View Of Generator To Engine Block Bolts
    GM946609Courtesy of GENERAL MOTORS CORP.
  6. Remove the generator to engine block bolts and the generator.
