Installation Procedure

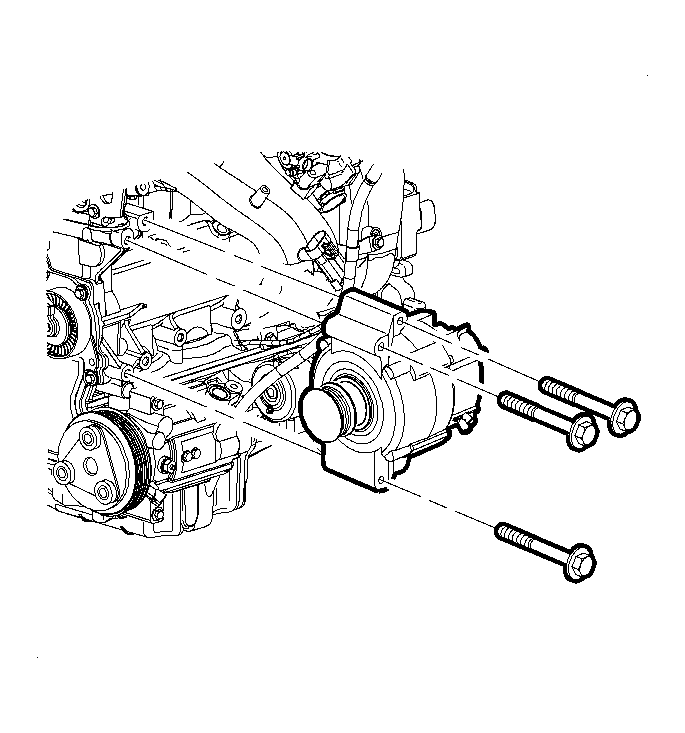

    Fig 1: View Of Generator To Engine Block Bolts
    GM946609Courtesy of GENERAL MOTORS CORP.
  1. Position the generator and install the top bolts finger tight.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bottom bolts and tighten all the generator bolts.

    Tighten:  Tighten the generator-to-engine block bolts to 22 N.m (16 lb ft).

  3. Connect the electrical connections.

    Tighten:  Tighten the B+ cable-to-generator nut to 20 N.m (15 lb ft).

    4. IMPORTANT: Use the required accessory drive belt removal tool number J 44811  .
  4. Install the accessory drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 2.2L (L61).
  5. Install the throttle body air duct. Refer to Air Cleaner Intake Duct Replacement in Engine Controls - 2.2L (L61).
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

    Tighten:  Tighten the battery terminal bolt to 17 N.m (13 lb ft).

  7. Reprogram the radio stations.
