Power Distribution Schematics

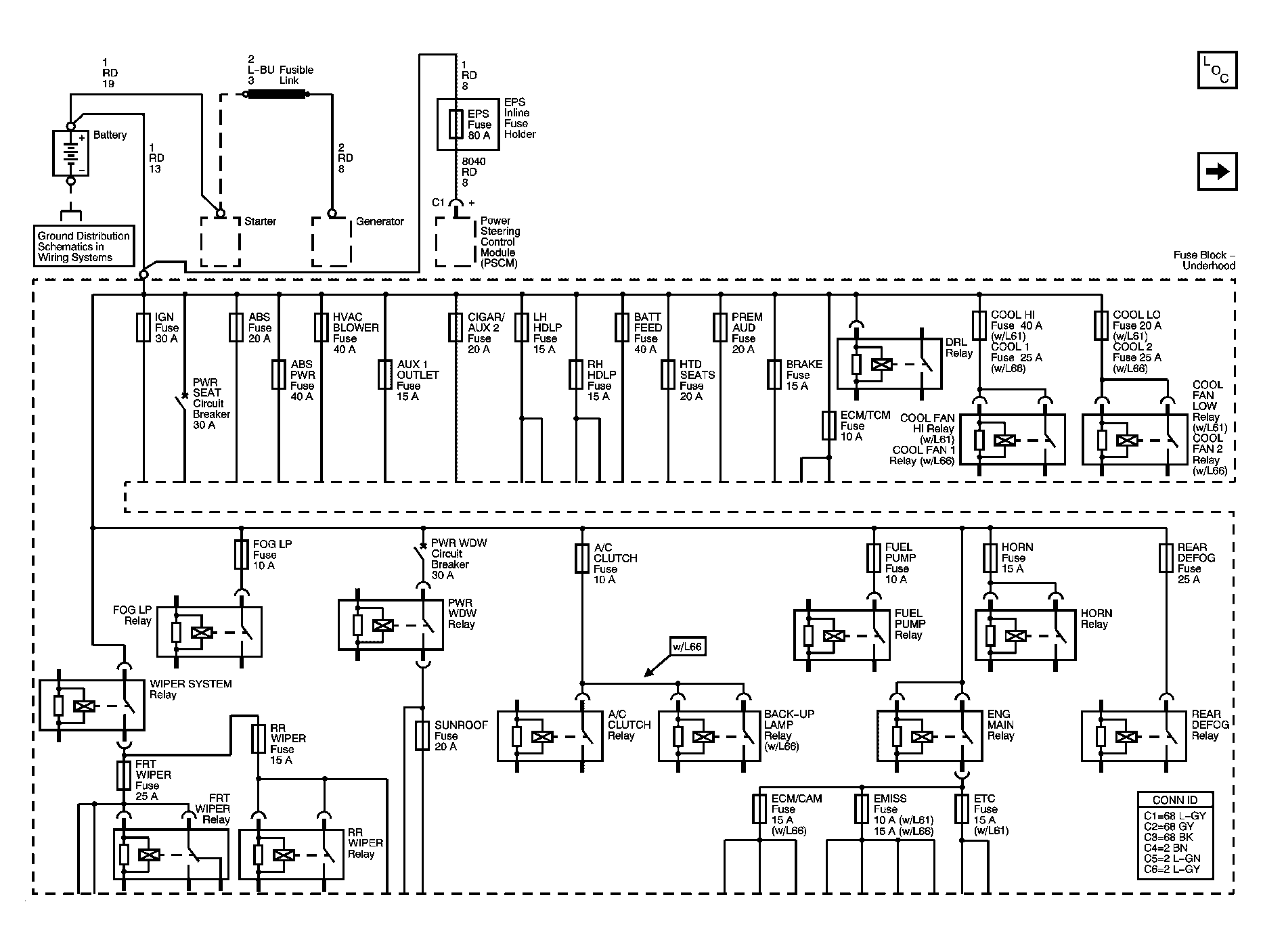

Fig 1: Battery, Starter, Generator, PSCM, and B+ to the Underhood Fuse Block Schematics

Courtesy of GENERAL MOTORS CORP.

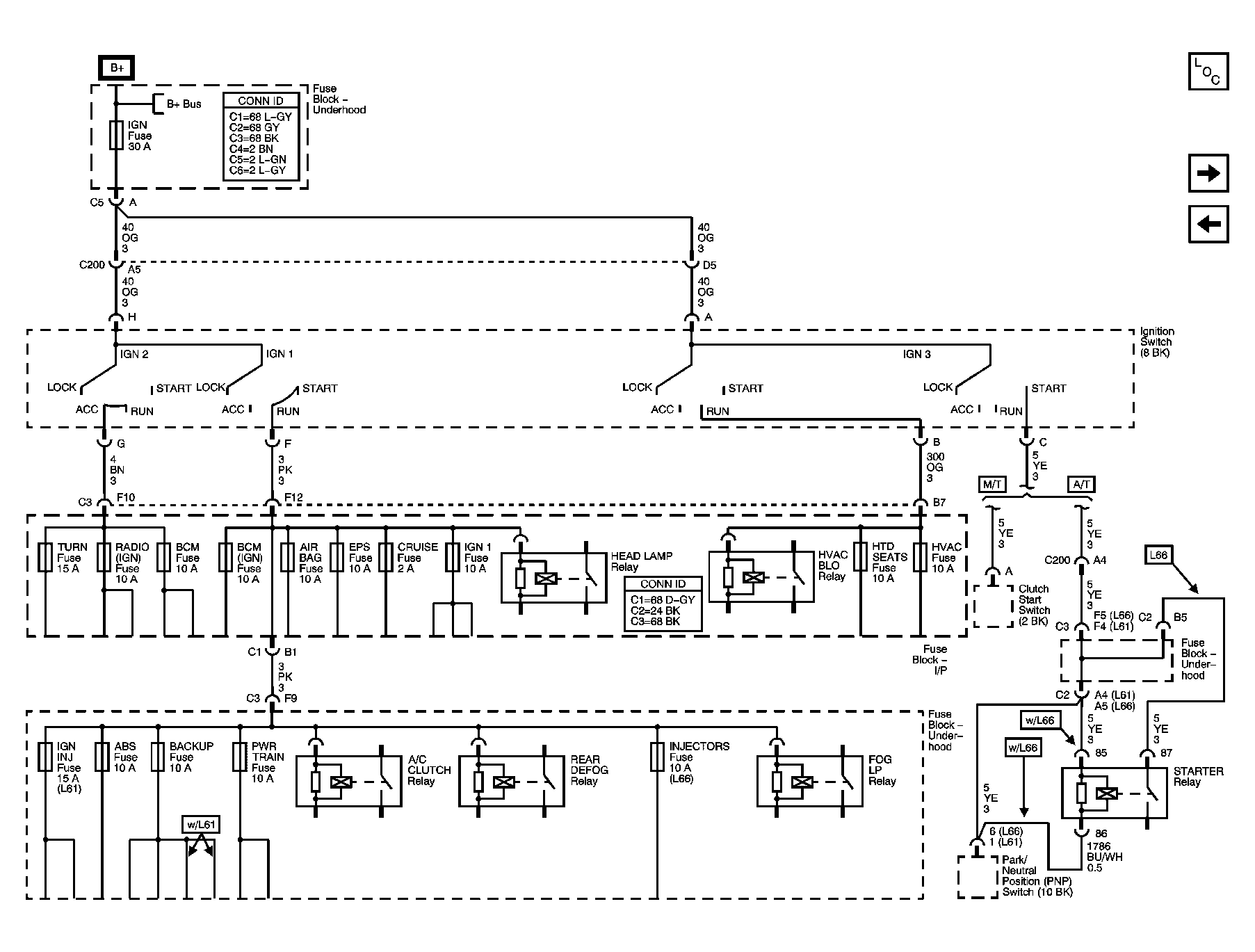

Fig 2: IGN Fuse, Ignition Switch, and Ignition Switch Position Feed Circuits

Courtesy of GENERAL MOTORS CORP.

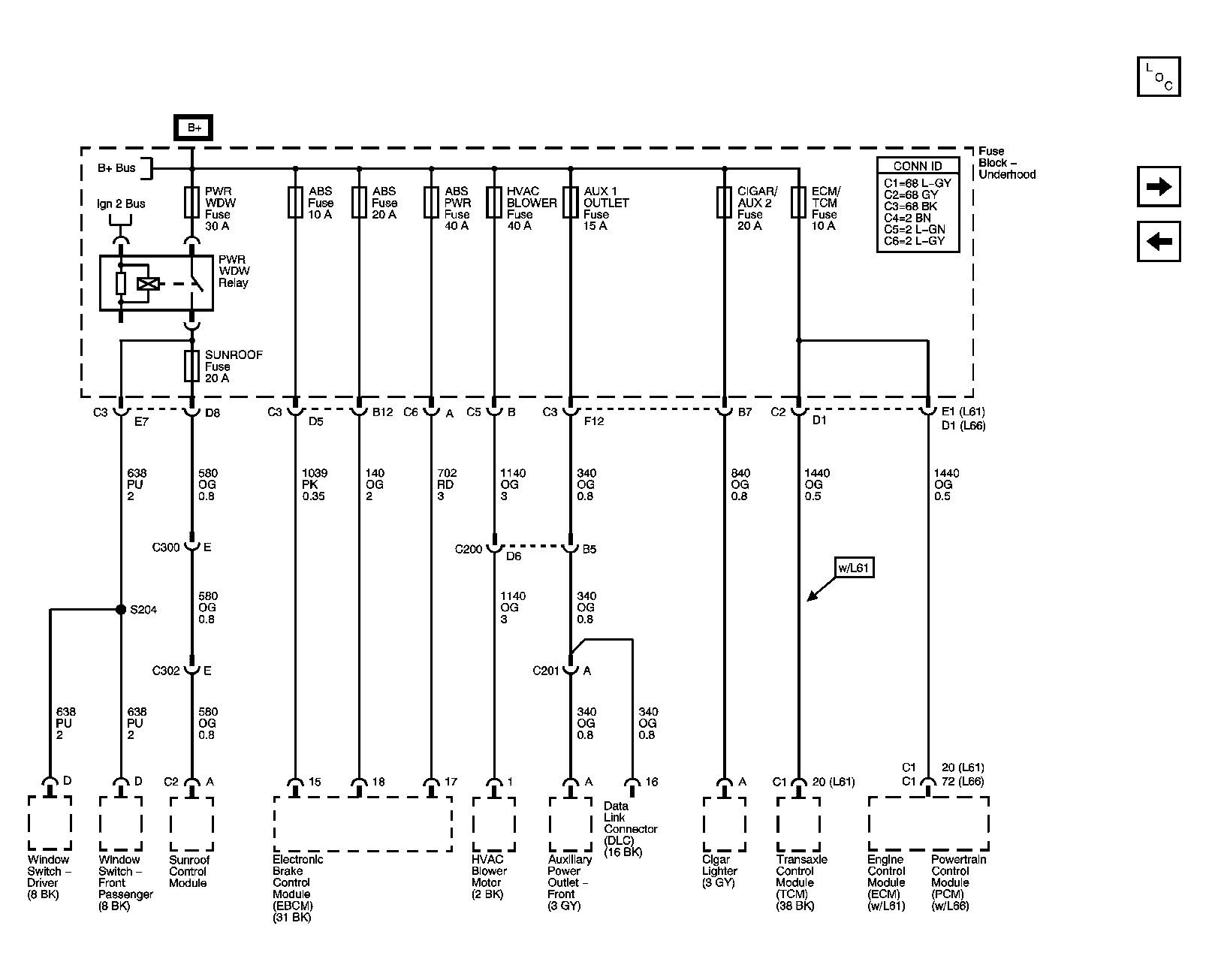

Fig 3: Pwr Wdw Relay, Pwr Wdw, Sunroof, ABS, ABS Pwr, HVAC Blower, Aux 1 Outlet, Cigar/Aux 2, and ECM/TCM Fuses

Courtesy of GENERAL MOTORS CORP.

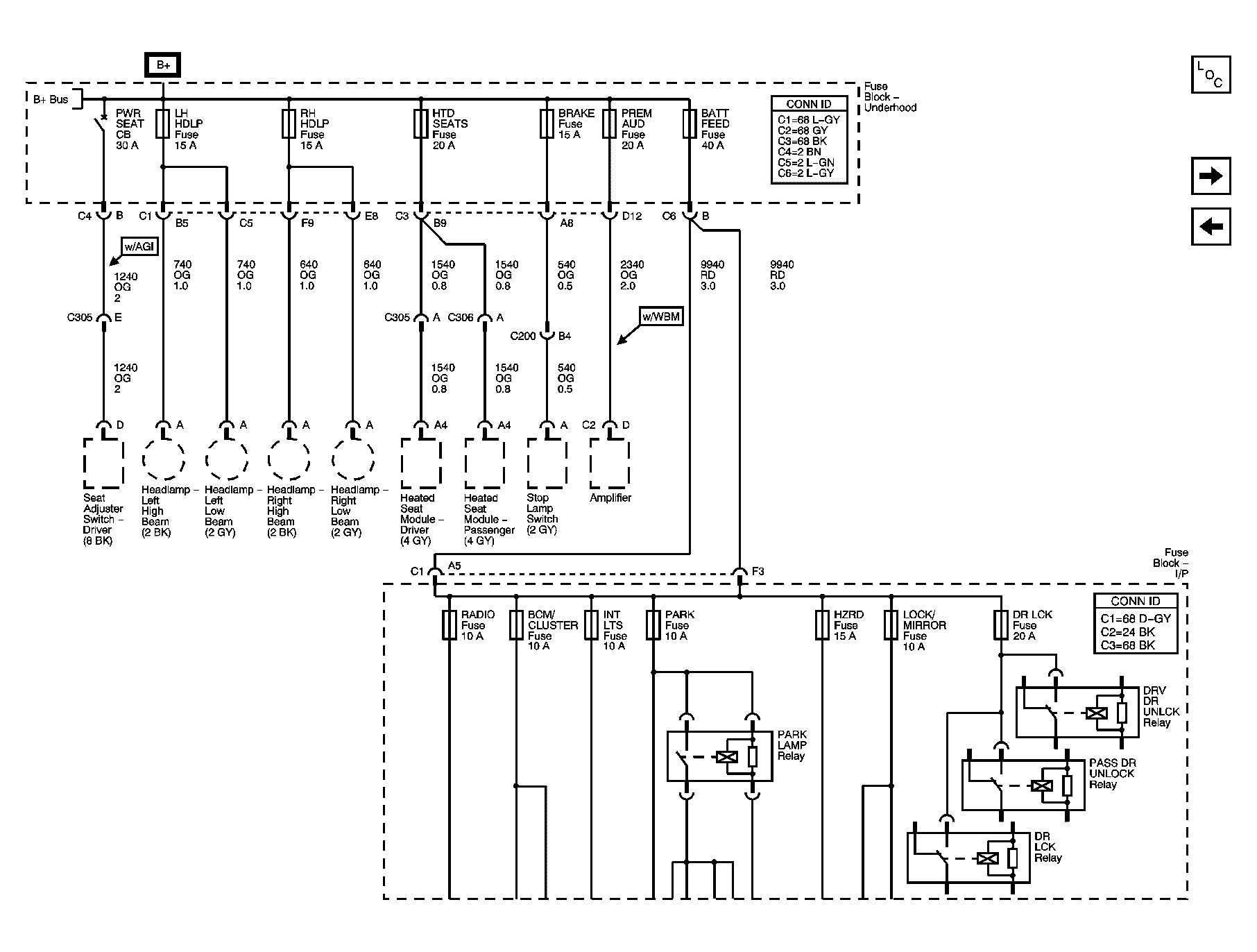

Fig 4: Pwr Seat CB, LH HDLP, RH HDLP, HTD Seats, Brake, Prem Aud, and BAtt Feed Fuses, and the B+ Circuits to the I/P Fuse Block Fuses

Courtesy of GENERAL MOTORS CORP.

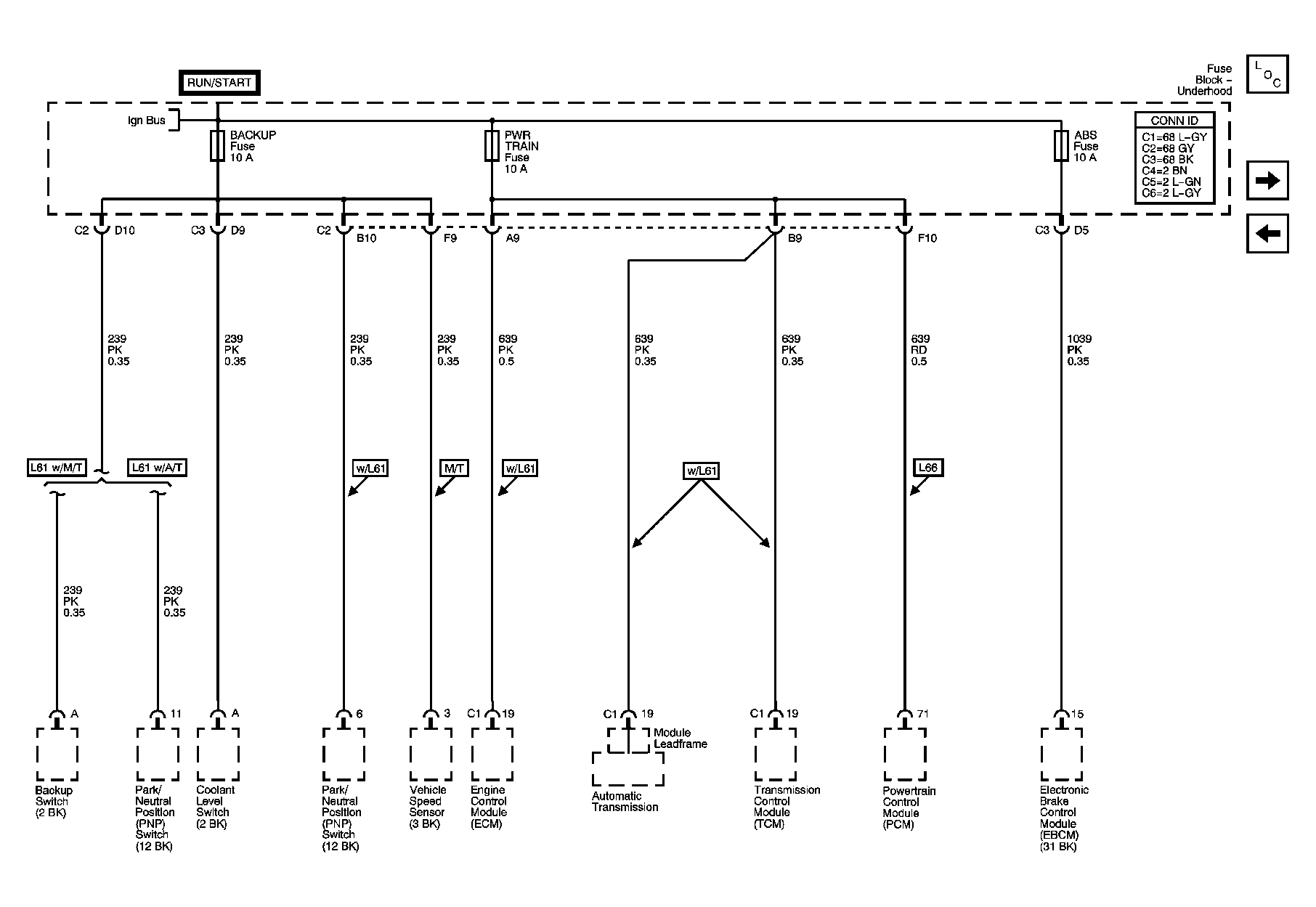

Fig 5: Backup, Pwr Train, and ABS Fuses

Courtesy of GENERAL MOTORS CORP.

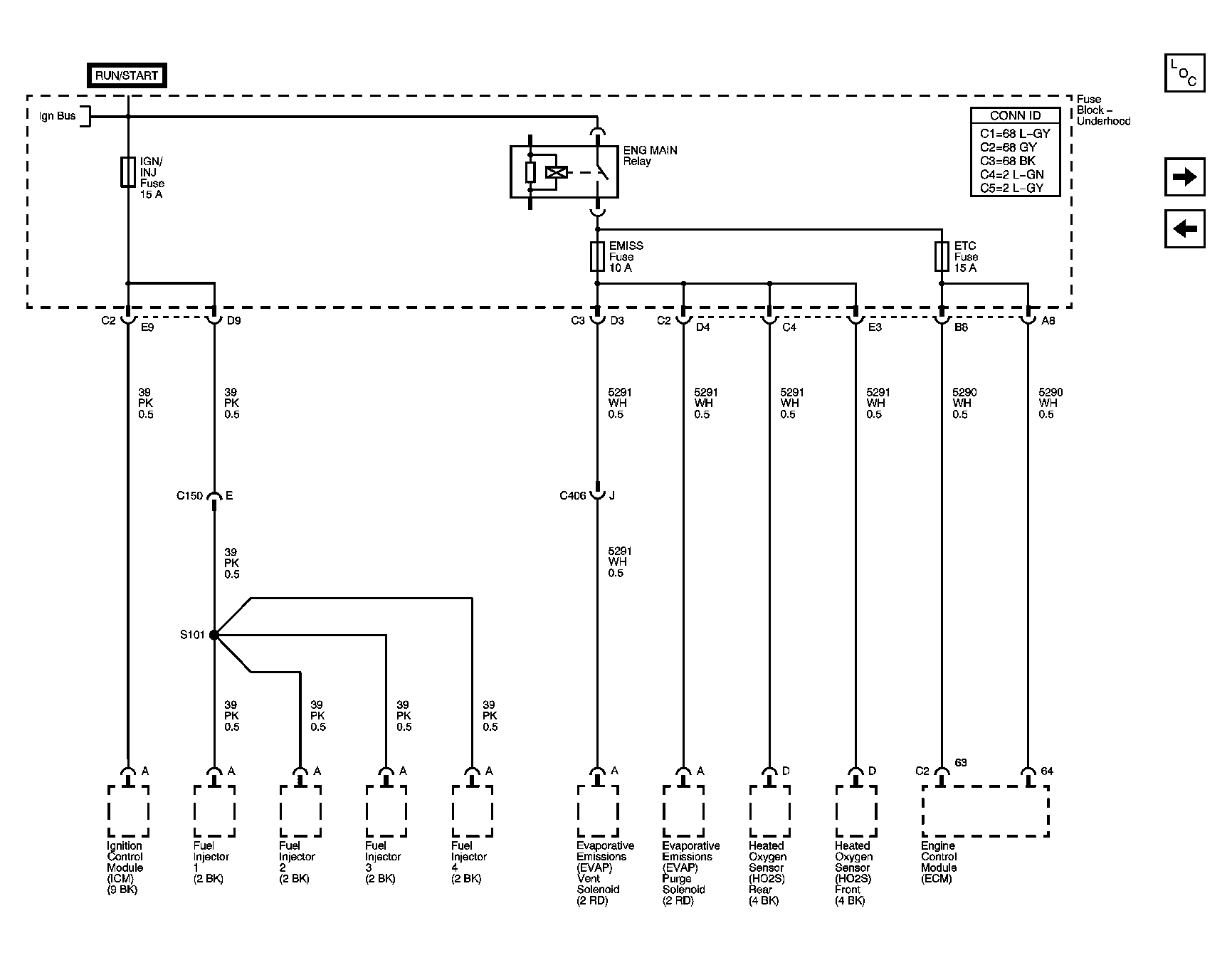

Fig 6: L61 - Eng Main Relay, IGN/INJ, EMISS, and ETC Fuses

Courtesy of GENERAL MOTORS CORP.

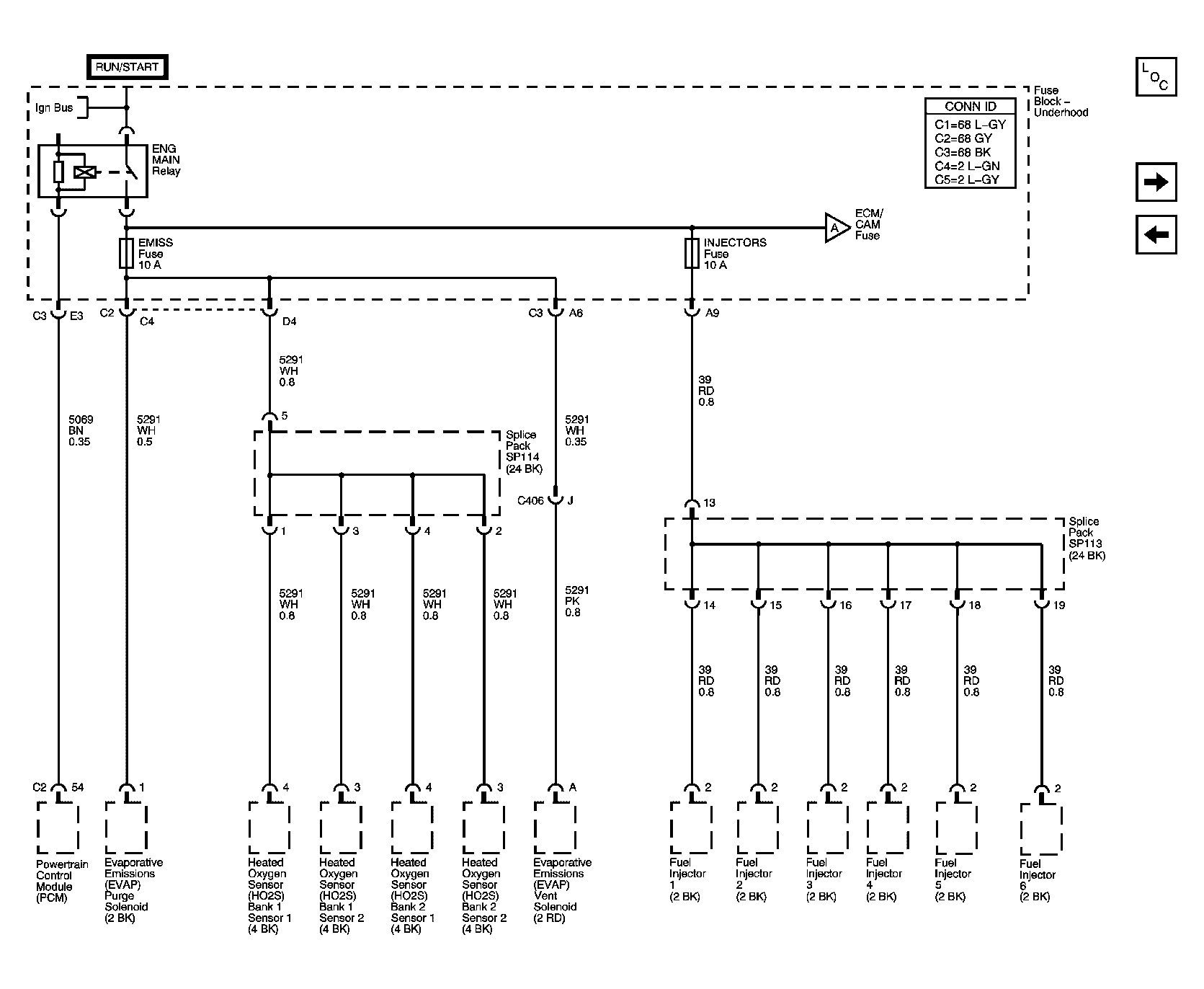

Fig 7: L66 (1 of 2) - Eng Main Relay, EMISS, and Injectors Fuses

Courtesy of GENERAL MOTORS CORP.

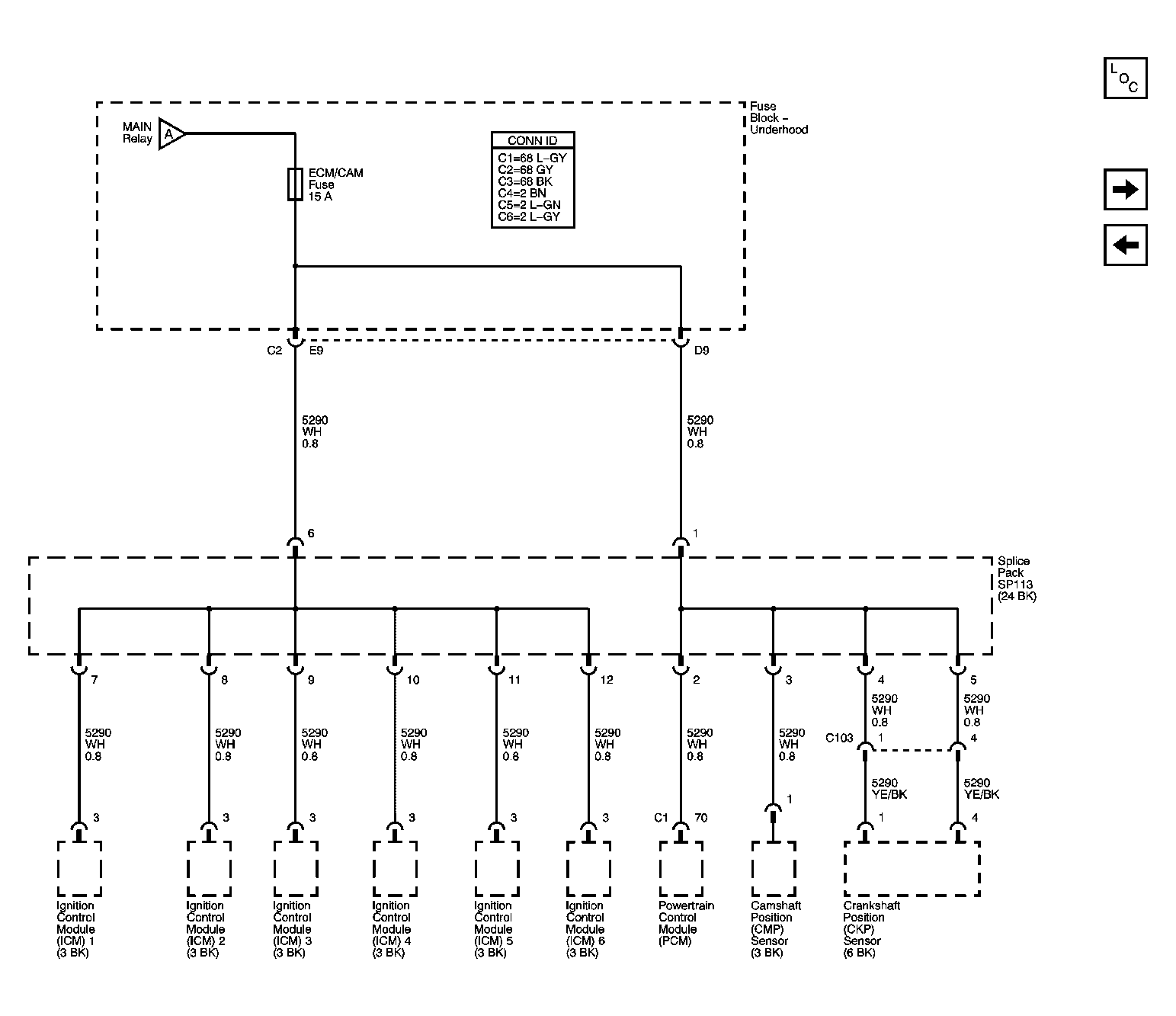

Fig 8: L66 (2 of 2) - ECM/CAM Fuse

Courtesy of GENERAL MOTORS CORP.

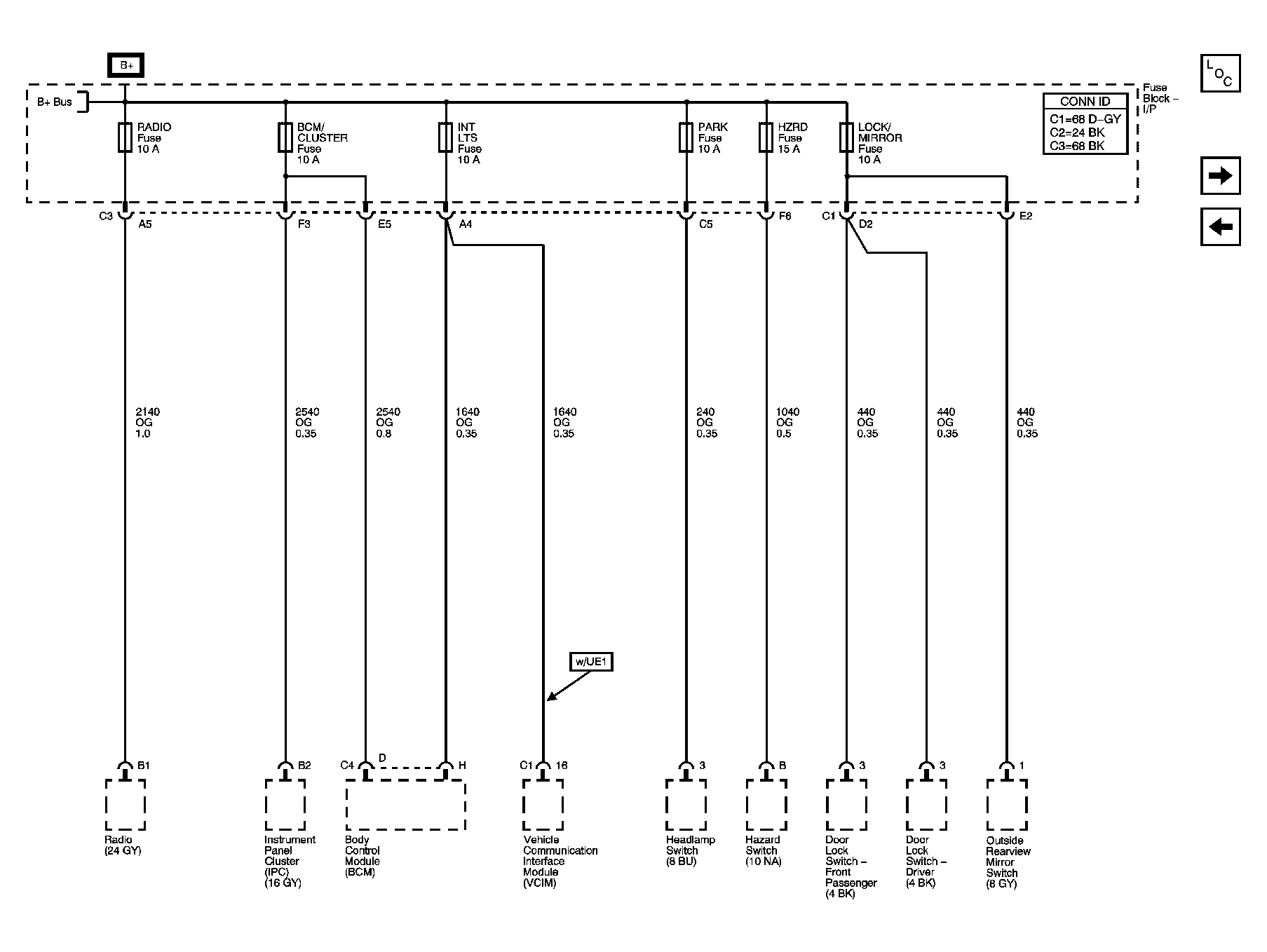

Fig 9: Radio, BCM/Cluster, INT LTS, Park, Hzrd, and Lock/Mirror Fuses (I/P Fuse Block)

Courtesy of GENERAL MOTORS CORP.

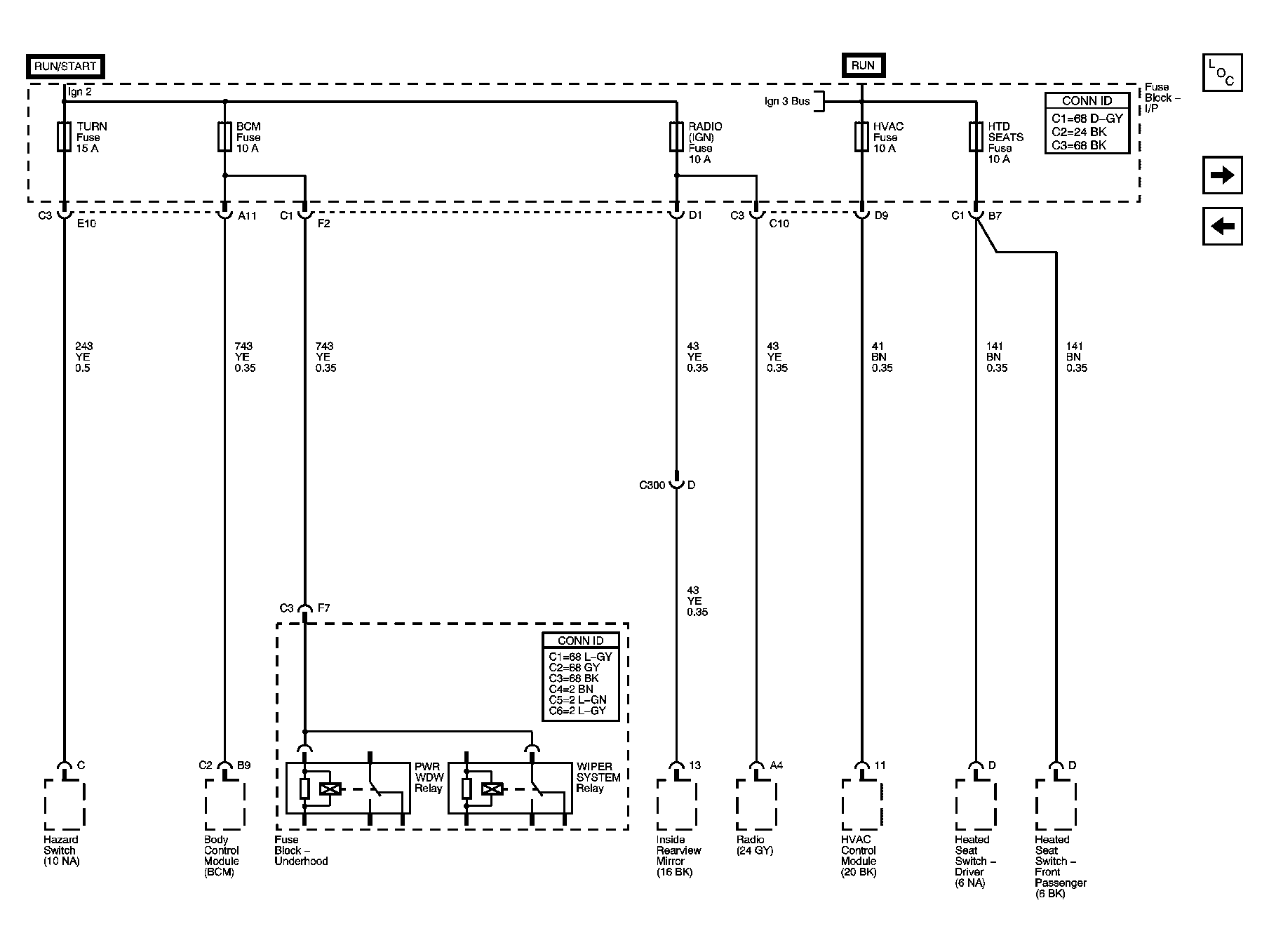

Fig 10: Turn, BCM, Radio (IGN), HVAC, and HTD Seats Fuses (I/P Fuse Block)

Courtesy of GENERAL MOTORS CORP.

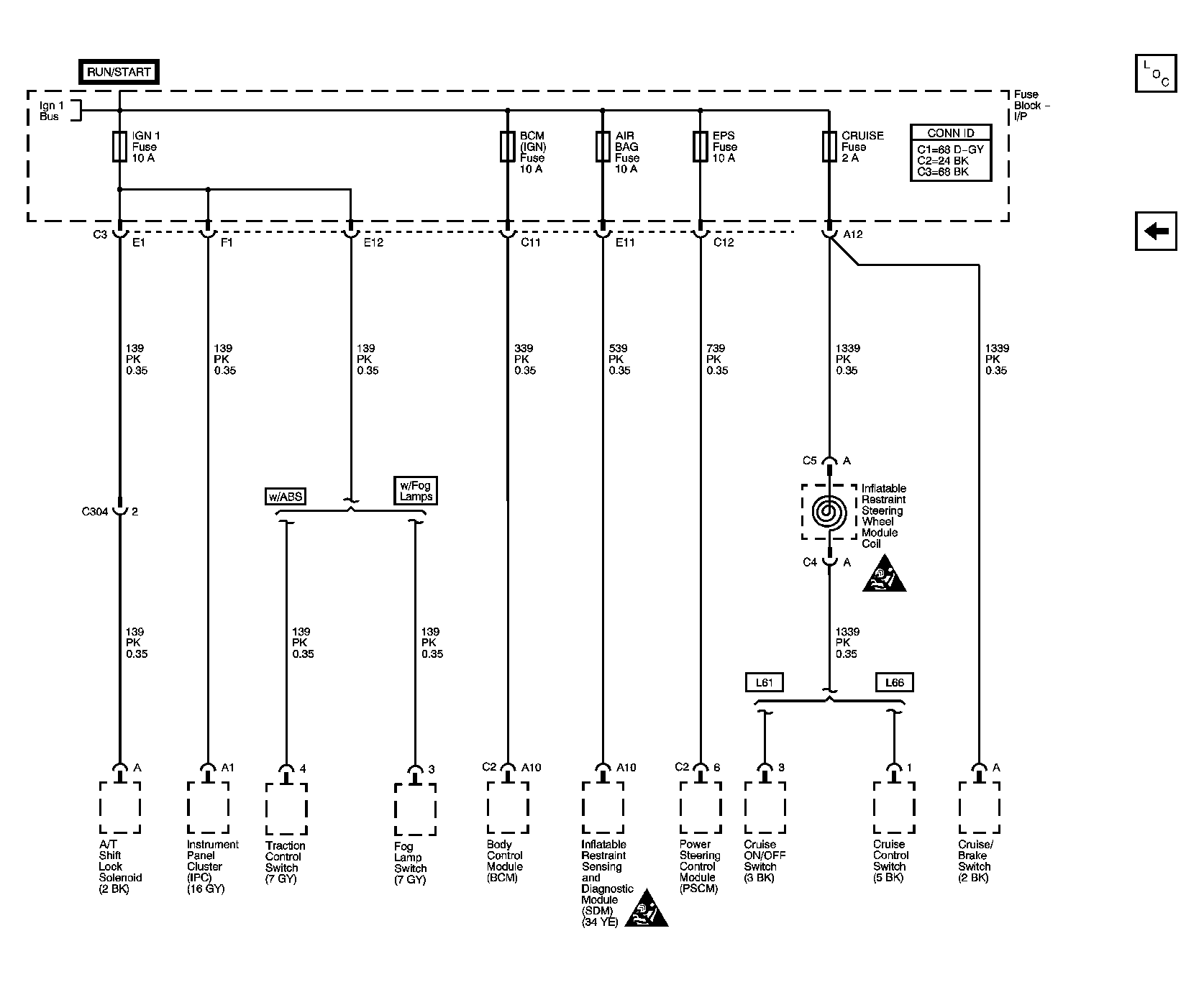

Fig 11: IGN 1, BCM (IGN), Air Bag, EPS, and Cruise Fuses (I/P Fuse Block)

Courtesy of GENERAL MOTORS CORP.
