Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

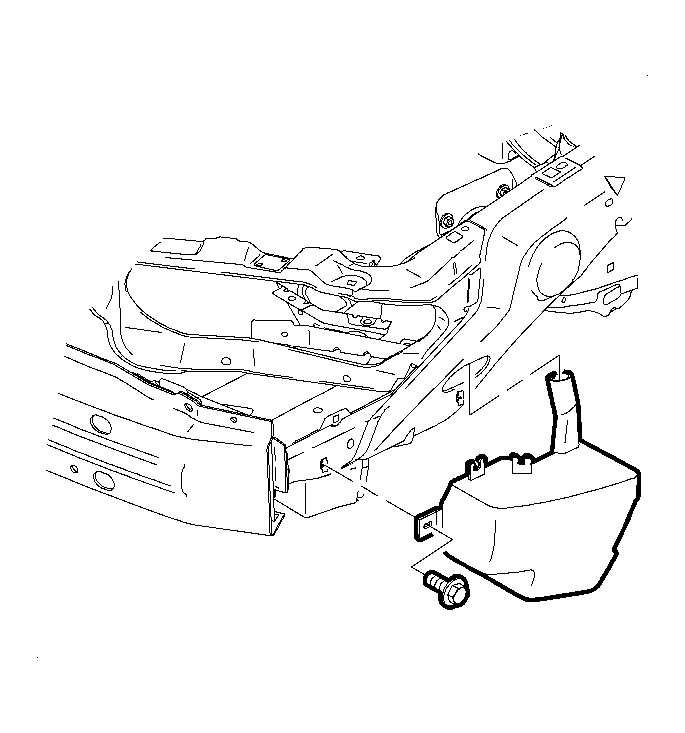

    Fig 1: Removing & Installing Washer Solvent Container
    GM898177Courtesy of GENERAL MOTORS CORP.
  1. Install the washer pump to the washer solvent container pressing into place until fully seated.
  2. Position the washer solvent container to the front frame rail.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts to the washer solvent container.

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).

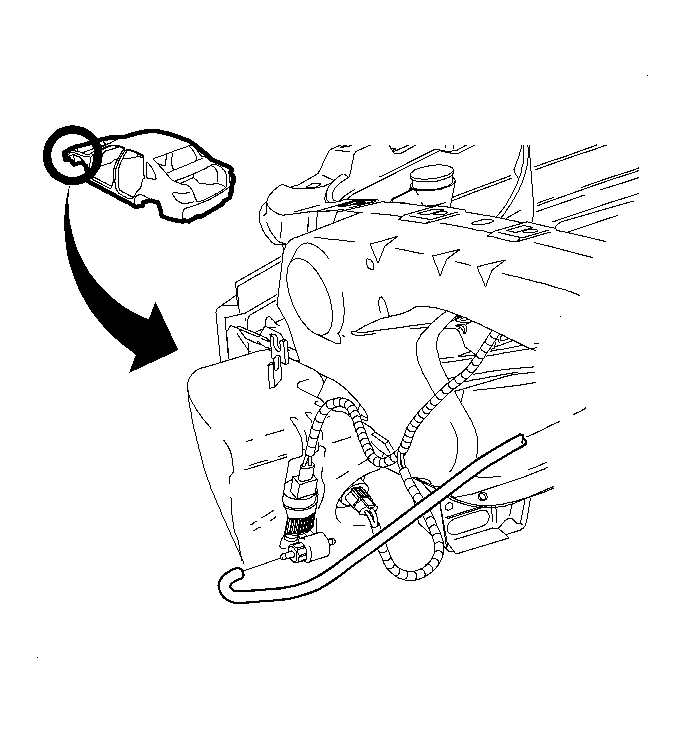

    4. Fig 2: Disconnecting/Reconnecting Washer Pump & Solvent Level Sensor Electrical Connectors
    GM898632Courtesy of GENERAL MOTORS CORP.
  4. Install the fluid hose to the washer pump.
  5. Connect the electrical connector to the washer pump.
  6. Connect the electrical connector to the solvent level sensor.

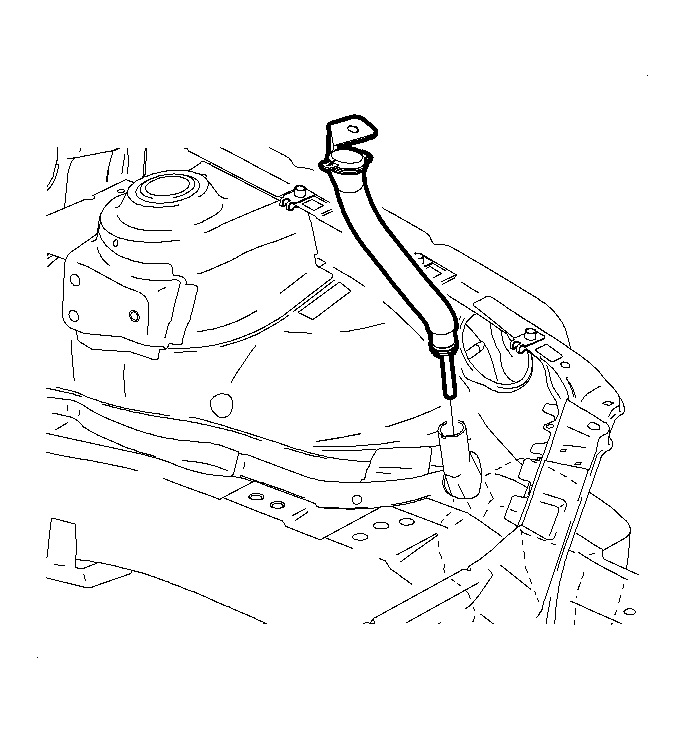

    7. Fig 3: Separating/Replacing Filler Neck From Washer Solvent Container
    GM898175Courtesy of GENERAL MOTORS CORP.
  7. Install the filler neck to the washer solvent container.
  8. Fill the washer solvent container with new washer solvent.
  9. Inspect the wiper/washer system for proper operation.
  10. Pull back the drivers side wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front in Body Front End.
